Copper Nickel 90/10 Buttweld Fittings Manufacturers, Suppliers & Stockist in Mumbai, India

Cupro Nickel 3D Pipe Bend, ASME SB366 Cupro Nickel 90-10 Long Stub End Manufacturer, Cu-Ni 90/10 Pipe Elbow, 90/10 Cupro Nickel Long & Short Radius Elbow, Cu-Ni UNS C70600 Seamless Pipe Fittings, Cupro Nickel 90-10 Ecentric Reducer Distributors, UNS C70600 Buttweld Pipe Fitting, ASME B16.9 Stub End Manufacturer in Mumbai, India.

Raninox Steel is a leading manufacturer & Supplier of Copper Nickel (Cu-Ni 90/10) Buttweld Fittings, we provide high-performance fittings engineered for superior corrosion resistance, strength, and durability in demanding environments. Manufactured in compliance with international quality standards, our Cu-Ni 90/10 fittings are widely used in marine, offshore, power generation, desalination, and shipbuilding industries.

Copper Nickel 90/10 (Cu-Ni 90/10) is an alloy composed of approximately 90% copper and 10% nickel, with small additions of iron and manganese to enhance strength and corrosion resistance. We manufacture and supply a complete range of Copper Nickel 90/10 pipe fittings in seamless and welded construction: 90° & 45° Elbows (Long & Short Radius), Equal & Reducing Tees, Concentric & Eccentric Reducers, Stub Ends, Pipe Caps, Couplings, Unions, Cross Fittings, Custom Fabricated Fittings etc.

All fittings are available in various sizes, wall thicknesses, pressure ratings, and specifications to meet diverse industrial requirements.

We supply Copper Nickel 90/10 pipe fittings worldwide, serving clients across marine, industrial, and energy sectors. Whether you require bulk quantities or customized solutions, we are committed to delivering precision-engineered products with exceptional service.

Specifications for Cu-Ni 90/10 Buttweld Fittings

Grade Copper Nickel 90-10 / UNS C70600 Werkstoff Nr. 2.0872
Standard ASTM B122, B171, B466, B467
Dimensions ASME B16.28, ASME/ANSI B16.9, MSS-SP-43
Size 1/2" to 24" NB
Form 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap
Schedule SCH 5 To SCH XXS
Wall Thickness from 2 to 40 mm
Type Seamless / Welded / Fabricated

Copper Nickel 90/10 Buttweld Fittings Equivalent Grades

STANDARD UNS WERKSTOFF NR. ISO/EUROPEAN BS JIS
Cu-Ni 90/10 C70600 2.0872 CuNi10Fe1Mn CN 102 C 7060

Copper Nickel 90/10 Buttweld Fittings Chemical Composition

Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 90-10 88.6 min 1.0 max .05 max 9-11 max 1.8 max 1 max

Copper Nickel 90/10 Buttweld Fittings Mechanical Properties

Properties Metric Imperial
Tensile strength, ultimate 303-414 MPa 43900-60000 psi
Tensile strength, yield (depending on temper) 110-393 MPa 16000-57000 psi
Elongation at break (in 254 mm) 42.00% 42.00%
Machinability (UNS C36000 (free-cutting brass) = 100%) 20% 20%

Copper Nickel 90/10 Buttweld Fittings Physical Properties

Element Density Melting Point Specific heat Thermal conductivity Electrical conductivity Electrical resistivity
Cu-Ni 90/10 8.90 kg/dm3 1100–1145 °C 377 J/kgK 50 W/mK 9 %IACS at 68 °F 115.0 ohms-cmil/ft at 68 °F

UNS C70600 Welded elbow Exporter, Copper Nickel WERKSTOFF NR. 2.0872 Cross, Copper Nickel 90/10 180 Degree Elbow, 90/10 Cu-Ni Pipe Reducer, ASTM B366 Cupro Nickel 90/10 90 Dgree Elbow, ASTM B122 Concentric Reducer, Cu-Ni 90-10 Seamless Fitting, Cu-Ni 90-10 180 Deg Elbow, Cu-Ni 90-10 Pipe Bends, 90/10 Cupro Nickel 180 Deg bend in Mumbai, India.

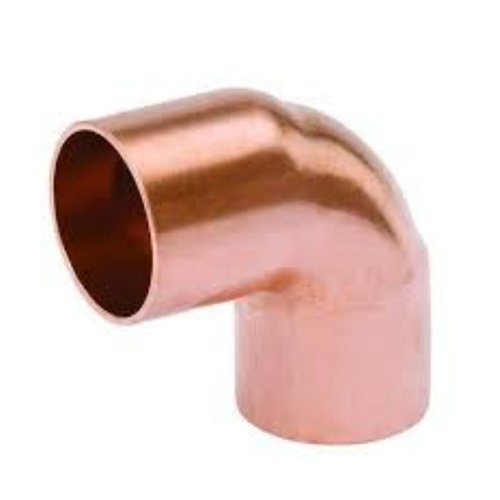

Cupro Nickel 90/10 Elbow

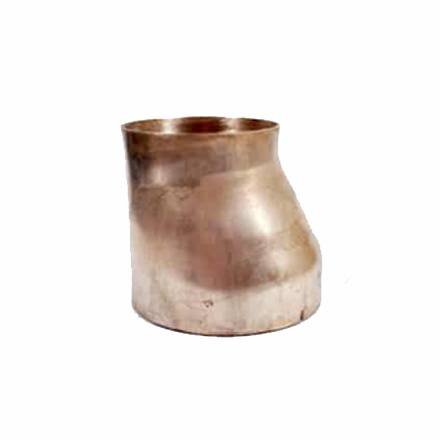

Cupro Nickel 90/10 Eccwntric Reducer

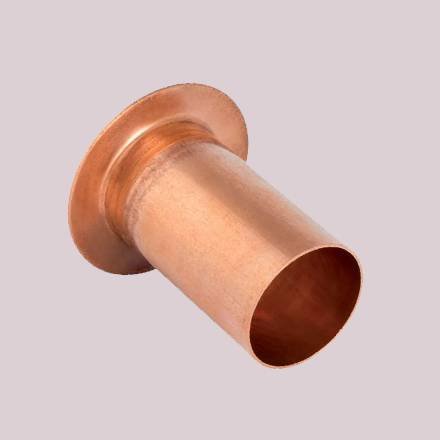

Cupro Nickel 90/10 Long Stub End

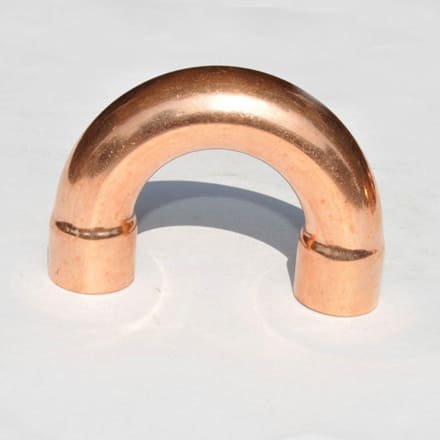

Cupro Nickel 90/10 Pipe bend

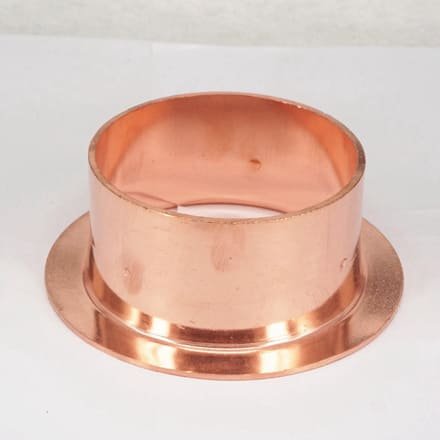

Cupro Nickel 90/10 Short Stub End

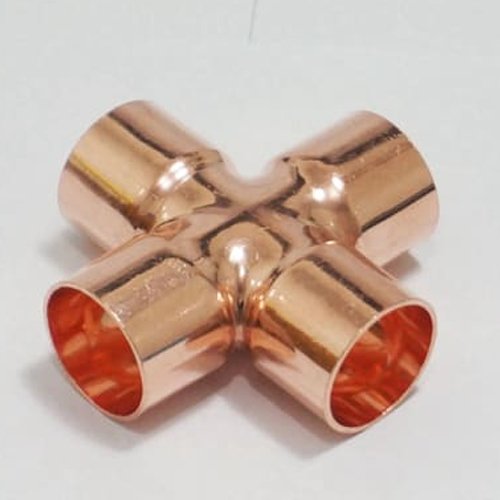

Cupro Nickel 90/10 Cross

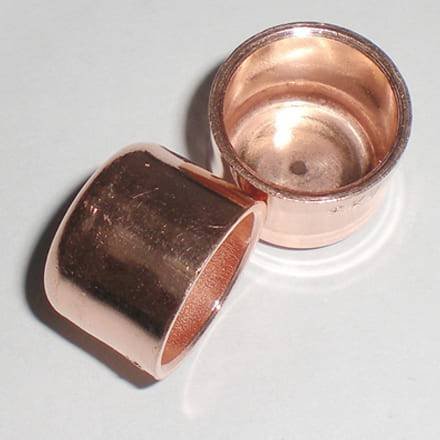

Cupro Nickel 90/10 Pipe Cap

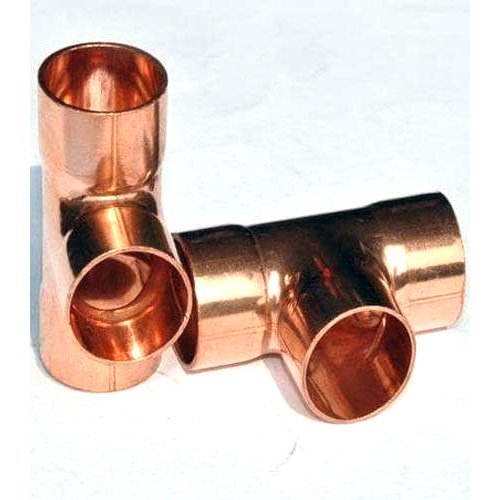

Cupro Nickel 90/10 Equal/Unequl Tee

Dimensions Standard Of Cupro Nickel 90/ 10 Buttweld Fittings

Nominal
Pipe
Size		 Outside
Diameter		 Caps Straight Tees Straight Crosses Stub Ends
inch mm inch Length
(inch)		 Center to End
(inch)		 Center to End
(inch)		 Lap Diameter
(inch)		 Long Length
(inch)		 Short Length
(inch)
1/2 21.3 0.840 1 1 – 1 3/8 3 2
3/4 26.7 1.050 1 1 1/8 – 1 11/16 3 2
1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
8 219.1 8.625 4 7 7 10 5/8 8 4
10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
12 323.9 12.750 6 10 10 15 10 6

Copper Nickel 90/10 Buttweld Fittings Size Chart

Product Size* Wall Thickness** Seamless Welded
Elbow 1/2"-24" SCH10S~XXS √ √
8"-104"  SCH5S~80S/XS √
Tee 1/2"-24" SCH10S~XXS √ √
8"-104"  SCH5S~80S/XS √
Reducer 1/2"-24" SCH10S~XXS √ √
8"-104"  SCH5S~80S/XS √
Cap 1/2"-80" SCH10S~SCH160 √
Lap Joint Stub End 1/2"-24" SCH5S~80S/XS √ √
8"-80"  SCH5S~80S/XS √

Copper Nickel 90/10 Buttweld Fittings Pressure Ratings

(oF) (oC) 150
-20 to 150 -29 to 66 300
200 93 265
250 121 225
300 149 185
350 177 150
400 204 -
450 232 -
500 260 -
550 288 -

Copper Nickel 90/10 Buttweld Fittings Weight Chart

DN Schedule 10S Schedule 40S Schedule 80S
900 Elbow 450 Elbow Equal tee 900 Elbow 450 Elbow Equal tee 900 Elbow 450 Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

Types Of Copper Nickel 90/10 Buttweld Fittings

Copper Nickel C70600 Buttweld 90 Deg Elbow Cupro Nickel 90-10 Buttweld 90 Deg Elbow
Copper Nickel 90/10 Butt weld Pipe Cap Manufacturer ANSI B16.9 CuNi 90/10 Stub End
CuNi 90/10 Buttweld 45 Degree Elbow Suppliers Cu-Ni 90/10 Seamless Pipe Fittings Exporter
Cu-Ni 90/10 Buttweld Equal Tee Exporter 90/10 Copper Nickel Buttweld 45 Degree Elbow
90/10 Cu-ni Welded Pipe Fittings Manufacturers ASME SB466 CuNi 90/10 Butt weld Pipe Fittings
Cu-Ni 90-10 Butt weld Cross Distributors Copper Nickel 90/10 Buttweld Reducer
Copper Nickel 90-10 Two Joint Butt weld Fittings CuNi 90/10 Pipe Reducer Stockiest
CuNi 90/10 Buttweld Pipe Nipple Copper Nickel 2.0872 Buttweld Fittings Supplier
Copper Nickel 90/10 Buttweld Unequal Tee 90-10 Cupro Nickel Pipe Fittings
