C61300 Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C61300 Aluminum Bronze Pipes Manufacturer, C61300 Aluminum Bronze Tubes Supplier, ASTM B150 C61300 Aluminum Bronze Sheets, C61300 Aluminum Bronze Plates Exporter, Aluminum Bronze C61300 Round Bars, C61300 Aluminum Bronze Pipe Fittings, Aluminum Bronze C61300 Coils Supplier in Mumbai, India.

Raninox Steel is a leading manufacturer and supplier of high-quality C61300 Aluminum Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. Our products are designed to deliver exceptional strength, corrosion resistance, and long service life across demanding industrial applications.

We offers premium C61300 Aluminum Bronze Pipes & Tubes designed for industrial use where dependable performance matters. These products are suitable for applications that require strength, durability, and resistance to challenging operating conditions. Available in multiple dimensions and specifications, our pipes and tubes are supplied to meet project and manufacturing needs.

Our C61300 Aluminum Bronze Sheets, Plates & Coils are supplied for fabrication, engineering, and industrial applications. They are known for consistent quality and easy usability in manufacturing processes. We provide sheets in standard and customized sizes to support diverse project requirements.

We supply C61300 Aluminum Bronze Round Bars for machining, engineering, and industrial production needs. These round bars are widely used in applications that demand dependable material performance and consistent quality. Raninox Steel offers bars in various sizes to match customer requirements.

our C61300 Aluminum Bronze Pipe Fittings are designed to support secure and efficient piping systems. They are supplied for industrial installations where durable fittings are essential. With attention to accuracy and quality, we help customers find the right fitting solutions for their projects.

Specifications for C61300 Aluminum Bronze

End Product Specification
Bar ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461
Bolts ASTM F468
Nuts ASTM F467
Pipe ASTM B315
Pipe, Welded ASTM B608
Plate ASME SB169, ASTM B171, B169, FEDERAL QQ-C-450
Plate, Bridge and Bearing ASTM B100
Plate, Clad ASTM B432
Plate, Condenser Tube ASME SB171, ASTM B171
Rod ASME SB150, ASTM B150, SAE J463, J461
Screws ASTM F468
Shapes SAE J463, J461
Sheet ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461
Strip ASME SB169, ASTM B169, FEDERAL QQ-C-450, SAE J463, J461
Studs ASTM F468
Tube ASTM B315
Tube, Condenser ASTM B111

C61300 Aluminum Bronze Equivalent Grades

BS ASTM/ASME UNS ISO/EN JIS Indian Standard (IS) DIN
CA 106 ASTM B150 C61300 CuAl8Fe3/ CW303G C 6140 IS 1634 2.0932

C61300 Aluminum Bronze Chemical Composition

  Al Cu Fe Pb Mn P Zn
Min/Max 6.0 - 8.0 Rem 1.5 - 3.5 0.01 1 0.015 0.2
Nominals 7.0000 91.0000 2.0000 - - - -

C61300 Aluminum Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
FLAT PRODUCTS
O60 1     68 76 33 - - - - - - - - - - 40 28
O60 25.4 0 TYP 20 524 228 - - 45 81 - - - - - - 276 193 0
H04 0.13     68 89 60 - - - - - - - - - - - -
H04 3.18 0 TYP 20 614 414 - - 32 87 - - - - - - - - 0
H04 0.5     68 80 54 - - - - - - - - - - - -
H04 12.7 0 TYP 20 552 372 - - 38 85 - - - - - - - - 0
O60 0.5     68 78 35 - - - - - - - - - - 40 25
O60 12.7 0 TYP 20 538 241 - - 42 82 - - - - - - 276 172 0
H04 1     68 78 45 - - - - - - - - - - - -
H04 25.4 0 TYP 20 538 310 - - 40 84 - - - - - - - - 0
H04 0.31     68 85 58 - - - - - - - - - - - -
H04 7.9 0 TYP 20 586 400 - - 35 86 - - - - - - - - 0
O60 0.31     68 80 40 - - - - - - - - - - 42 26
O60 7.9 0 TYP 20 552 276 - - 40 83 - - - - - - 290 179 0
O60 0.13     68 82 45 - - - - - - - - - - 45 30
O60 3.18 0 TYP 20 565 310 - - 40 84 - - - - - - 310 207 0
ROD
H04 0.5     68 85 45 - - - - - - - - - - 48 -
H04 12.7 0 TYP 20 586 310 - - 35 91 - - - - - - 331 - 0
H04 1     68 82 40 - - - - - - - - - - 45 -
H04 25.4 0 TYP 20 565 276 - - 35 90 - - - - - - 310 - 0
H04 2.01     68 80 35 - - - - - - - - - - 40 -
H04 51 0 TYP 20 552 241 - - 35 88 - - - - - - 276 - 0
  0.47     68 80 40 - - - - - - - - - - - -
  12 0 TYP 20 550 275 - - 30 - - - - - - - - - 0
        68 75 35 - - - - - - - - - - - -
  15-Dec     20 515 240 - - 30 - - - - - - - - - 0
  0.98 - 1.97     68 70 32 - - - - - - - - - - - -
  25 - 50     20 485 220 - - 30 - - - - - - - - - 0
  1.97 - 3.15     68 27 30 - - - - - - - - - - - -
  50 - 80     20 185 205 - - 30 - - - - - - - - - 0

C61300 Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 · 10-6 per oF (68-572 F) 16.2 · 10-6 per oC (20-300 C)
Density 0.285 lb/in3 @ 68 F 7.89 gm/cm3 @ 20 C
Electrical Conductivity 14 %IACS @ 68 F 0.082 MegaSiemens/cm @ 20 C
Electrical Resistivity 74.1 ohms-cmil/ft @ 68 F 12.32 microhm-cm @ 20 C
Melting Point Liquid US 1915 F 1046 C
Melting Point Solid US 1905 F 1041 C
Modulas of Elasticity in Tension 17000 ksi 117000 MPa
Modulas of Rigidity 6400 ksi 44130 MPa
Specific Gravity 7.89 7.89
Specific Heat Capacity 0.09 Btu/lb/oF @ 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 39.0 Btu · ft/(hr · ft2 · oF) @ 68 F 67.5 W/m · oK at 20 C

C61300 Aluminum Bronze Manufacturer, Aluminum Bronze Supplier, C61300 Pipes & Tubes, Aluminum Bronze Sheets & Plates, C61300 Round Bars Supplier, Industrial Bronze Products C61300 Forged Aluminum Bronze Bars, ASTM B150 C61300 Marine Grade Aluminum Bronze Supplier in Mumbai, India.

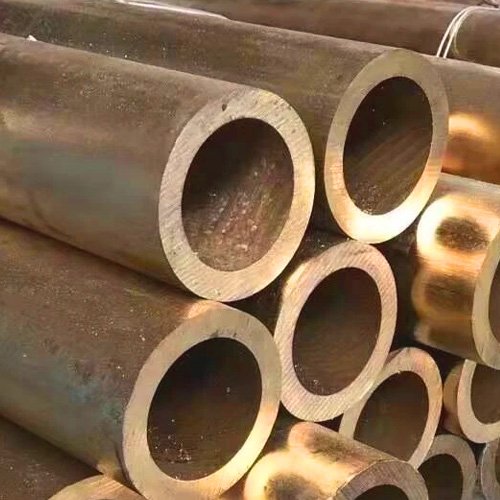

C61300 Aluminum Bronze Pipes & Tubes

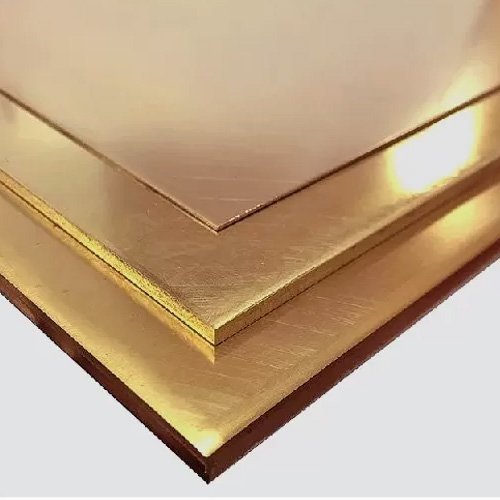

C61300 Aluminum Bronze Sheets, Plates & Coils

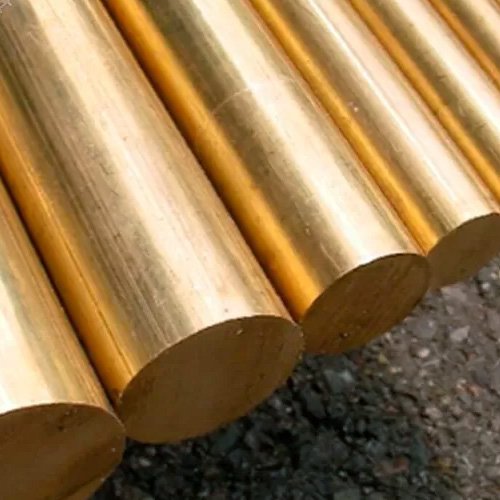

C61300 Aluminum Bronze Round Bars

C61300 Aluminum Bronze Sheets & Plates Size Chart

Size Thickness Size of sheet LBS/SQ FT LBS/Sheet
0.063 - 36 X 96 2.781 66.744
1/8 0.125 36 X 120 5.130 153.9
1/8 0.125 40 X 133 1/2 5.130 190.24
3/16 0.188 48 X 120 7.700 307.8
1/4 0.25 36 X 84 10.750 225.75
1/4 0.25 48 X 120 10.750 430
3/8 0.375 48 X 120 15.390 615.6
3/8 0.375 49 X 120 15.390 628.425
1/2 0.5 36 X 120 20.520 615.6
1/2 0.5 39 X 120 20.520 666.9
1/2 0.5 48 X 120 20.520 820.8
1/2 0.5 48 X 144 20.520 985
3/4 0.75 48 X 120 32.190 1231
3/4 0.75 48 X 144 32.190 1483
1 1.00 48 X 120 41.040 1641.6
1 ½ 1.50 48 X 96 64.380 2060.16
1 ½ 1.50 48 X 144 64.380 3090.24
2 2.00 48 X 72 86.000 2064

C61300 Aluminum Bronze Sheets Weight Chart

Size (inch) 0.063 01/4 3/16 01/4 01/8 01/8 03/8 01/2 01/2
Thick – 0.25 0.188 0.25 0.125 0.125 0.375 0.5 0.5
Weight in lbs per sheet 66.744 225.75 307.8 430 19 .24 153.9 615.6 82 .8 666.9
lbs per sq. ft 2.781 1 .750 7.7 1 .750 5.13 5.13 15.39 2 .520 2 .520
Size (inch) 01/2 01/2 03/8 03/4 1 ½ 1 ½ 03/4 2 1
Thick 0.5 0.5 0.375 0.75 1.5 1.5 0.75 2 1
Weight in lbs per sheet 985 615.6 628.425 1231 309 .24 206 .16 1483 2064 1641.6
lbs per sq. ft 2 .520 2 .520 15.39 32.19 64.38 64.38 32.19 86 41.04

C61300 Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C61300 Aluminum Bronze Round Bars Size

Size Table in MM Chucked true to Outside Dia in MM Chucked true to Inside Dia in MM and Inch
Outside Dia,
Millimeter		 Inside Dia,
Millimeter		 Maximum Outside Dia,
Millimeter		 Minimum. Inside Dia,
Millimeter		 Maximum Outside Dia,
Inches.		 Minimum. Inside Dia,
Inches		 Maximum Outside Dia,
Millimeter		 Minimum. Inside Dia,
Millimeter		 Maximum Outside Dia,
Inches		 Minimum. Inside Dia,
Inches
32 20 31 21.9 1.220 0.862 30 21 1.185 0.827
32 16 31 18 1.220 0.709 30 17 1.181 0.669
36 25 35 26.9 1.378 1.059 34.1 26 1.343 1.024
36 20 35 22 1.378 0.866 34 21 1.339 0.827
36 16 35 18.1 1.378 0.713 33.9 17 1.335 0.669
40 28 39 29.9 1.535 1.177 38.1 29 1.500 1.142
40 25 39 27 1.535 1.063 38 26 1.496 1.024
40 20 39 22.1 1.535 0.870 37.9 21 1.492 0.827
45 32 44 33.9 1.732 1.335 43.1 33 1.697 1.299
45 28 44 30 1.732 1.181 43 29 1.693 1.142
45 20 44 22.2 1.732 0.874 42.8 21 1.685 0.827
50 36 49 38 1.929 1.496 48 37 1.890 1.457
50 32 49 34.1 1.929 1.343 47.9 33 1.886 1.299
50 25 49 27.2 1.929 1.071 47.8 26 1.882 1.024
56 40 55 42 2.165 1.654 54 41 2.126 1.614
56 36 55 38.1 2.165 1.500 53.9 37 2.122 1.457
56 28 55 30.3 2.165 1.193 53.7 29 2.114 1.142
63 50 62 51.9 2.441 2.043 61.1 51 2.406 2.008
63 45 62 47 2.441 1.850 61 46 2.402 1.811
63 40 62 42.2 2.441 1.661 60.8 41 2.394 1.614
63 36 62 38.3 2.441 1.508 60.7 37 2.390 1.457
63 32 62 34.4 2.441 1.354 60.6 33 2.386 1.299
71 56 69.9 58 2.752 2.283 68.9 57 2.713 2.244
71 45 69.9 47.3 2.752 1.862 68.6 46 2.701 1.811
71 40 69.9 42.4 2.752 1.669 68.5 41 2.697 1.614
71 36 69.9 38.5 2.752 1.516 68.4 37 2.693 1.457
75 60 73.8 62 2.906 2.441 72.8 61 2.866 2.402
75 50 73.8 52.2 2.906 2.055 72.6 51 2.858 2.008
75 40 73.8 42.5 2.906 1.673 72.3 41 2.846 1.614
80 63 78.8 65 3.102 2.559 77.8 64 3.063 2.520
80 50 78.8 52.4 3.102 2.053 77.4 51 3.047 2.008
80 45 78.8 47.5 3.102 1.870 77.3 46 3.043 1.811
80 40 78.8 42.6 3.102 1.677 77.2 41 3.039 1.614
85 67 83.7 69.1 3.295 2.720 82.6 68 3.252 2.677
85 55 83.7 57.4 3.295 2.260 82.3 56.0 3.240 2.205
85 45 83.7 47.6 3.295 1.874 82.1 46.0 3.232 1.811
90 71 88.6 73.1 3.488 2.878 87.6 72.1 3.449 2.839
90 63 88.6 65.3 3.488 2.571 87.3 64.0 3.437 2.520
90 56 88.6 58.5 3.488 2.303 87.1 57.0 3.429 2.244
90 50 88.6 52.6 3.488 2.071 87.0 51.0 3.425 2.008
95 75 93.5 77.3 3.681 3.041 92.4 76.2 3.641 2.997
95 67 93.5 69.3 3.681 2.728 92.2 68.0 3.630 2.677
95 50 93.5 52.7 3.681 2.075 91.8 51.0 3.614 2.008
100 80 98.5 82.3 3.878 3.240 97.4 81.2 3.835 3.197
100 71 98.5 73.4 3.878 2.890 97.2 72.1 3.827 2.839
100 63 98.5 65.5 3.878 2.579 97.0 64.0 3.819 2.520
100 56 98.5 58.7 3.878 2.311 96.8 57.0 3.811 2.244
106 80 104.4 82.5 4.110 3.248 103.1 81.2 4.059 3.197
106 71 104.4 73.5 4.110 2.894 103.0 72.1 4.055 2.839
106 63 104.4 65.7 4.110 2.587 102.7 64.0 4.043 2.520
106 56 104.4 58.9 4.110 2.319 102.5 57.0 4.035 2.244
112 90 110.3 92.5 4.343 3.642 109.2 91.4 4.299 3.598
112 80 110.3 82.6 4.343 3.252 108.9 81.2 4.287 3.197
112 71 110.3 73.7 4.343 2.902 108.7 72.1 4.280 2.839
112 63 110.3 65.8 4.343 2.591 108.5 64.0 4.272 2.520
118 90 116.2 92.7 4.575 3.650 114.9 91.4 4.524 3.598
118 80 116.2 82.8 4.575 3.260 114.6 81.2 4.512 3.197
118 71 116.2 73.8 4.575 2.906 114.5 72.1 4.508 2.839
118 63 116.2 66.0 4.575 2.598 114.2 64.0 4.496 2.520
125 100 123.1 102.7 4.846 4.043 121.9 101.5 4.799 3.996
125 90 123.1 92.8 4.846 3.654 121.7 91.4 4.791 3.598
125 80 123.1 82.9 4.846 3.264 121.4 81.2 4.780 3.197
125 71 123.1 74.0 4.846 2.913 121.3 72.1 4.772 2.839
132 106 130.0 108.8 5.118 4.283 128.8 107.6 5.071 4.236
132 90 130.0 93.0 5.118 3.661 128.4 91.4 5.055 3.598
132 80 130.0 83.1 5.118 3.272 128.1 81.2 5.043 3.197
132 71 130.0 74.2 5.118 2.921 121.2 72.1 5.035 2.839
140 112 137.9 115 5.429 4.528 136.6 113.7 5.378 4.476
140 100 137.9 103.1 5.429 4.059 136.3 101.5 5.366 3.996
140 90 137.9 93.2 5.429 3.669 136.1 91.4 5.358 3.598
140 80 137.9 83.3 5.429 3.280 135.8 81.2 5.346 3.197

Types Of C61300 Aluminum Bronze

C61300 Aluminum Bronze Plates Manufacturer C61300 Aluminum Bronze Slit Coils Supplier in India
ASTM C61300 Aluminum Bronze Pipes at Best Price in India C61300 Aluminum Bronze Hex Bars Stockists
ASTM B171 Aluminum Bronze C61300 Bars Dealer in India UNS C61300 Aluminum Bronze Sheets Plates Wholesaler
C61300 Aluminum Bronze Round Rod Dealer C61300 Aluminum Bronze ERW Pipes Manufacturer
C61300 Aluminum Bronze Rectangular Bars C61300 Aluminum Bronze Square Bars Supplier
C61300 Aluminum Bronze Coils Supplier in Mumbai C61300 Aluminum Bronze Seamless Tubes Supplier
C61300 Aluminum Bronze Sheets Stockist C61300 Aluminum Bronze Pipes Supplier
C61300 Aluminum Bronze Welded Pipes C61300 Aluminum Bronze Square Pipes Supplier
C61300 Aluminum Bronze Coils ASTM B150 C61300 Aluminum Bronze Forgings
C61300 Aluminum Bronze Shim Sheet Supplier in India C61300 High Strength Aluminum Bronze Supplier
ASTM B150 C61300 Marine Grade Aluminum Bronze ASTM B150 Aluminum Bronze Rod C61300
C61300 Aluminum Bronze Castings in India Aluminum Bronze C61300 Round Bars Supplier

C61300 Aluminum Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination

Suppling & Exporting of C61300 Aluminum Bronze in Countries like

Raninox Steels have exported C61300 Aluminum Bronze Products to over 60 countries including Afghanistan, Albania, Andorra, Angloa, Austria, Australia, Bahrain, Bangladesh, Bhutan, Brazil, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Canada, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Madagascar, Mexico, Moldova, Monaco, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, New Zealand, North Korea, Netherlands, Norway, Nigeria, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, Singapore, South Korea, South Africa, Sri Lanka, Sudan, Syria, Taiwan, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Venezuela, Vietnam, Yemen, etc.

Suppling & Exporting of C61300 Aluminum Bronze in Cities like

Raninox Steels have exported C61300 Aluminum Bronze Products Mumbai, Los Angeles, Muscat, Doha, Singapore, Ahmedabad, Kolkata, Cairo, Jeddah, Bangkok, Tehran, London, Dammam, Milan, Surat, Courbevoie, Madrid, Nagpur, Nashik, Montreal, Colombo, Al Khobar, Geoje-si, Chennai, Howrah, Hong Kong, Chandigarh, Kuala Lumpur, Manama, New York, Ulsan, Vung Tau, Visakhapatnam, Dubai, Bogota, Rio de Janeiro, Hyderabad, Thane, Calgary, Granada, Caracas, Baroda, Busan, Jaipur, Gurgaon, Aberdeen, Jakarta, Kuwait City, New Delhi, Ho Chi Minh City, Ludhiana, Bengaluru, Ankara, Coimbatore, Petaling Jaya, Navi Mumbai, Noida, La Victoria, Dallas, Lahore, Rajkot, Jamshedpur, Atyrau, Gimhae-si, Pune, Abu Dhabi, Moscow, Riyadh, Thiruvananthapuram, Sharjah, Haryana, Hanoi, Bhopal, Ahvaz, Ranchi, Sydney, Faridabad, Seoul, Port-of-Spain, Al Jubail, Indore, Houston, Istanbul, Perth, Brisbane, Algiers, Karachi, Secunderabad, Vadodara, Melbourne, Toronto, Edmonton, Lagos, Pimpri-Chinchwad, Santiago, Chiyoda, Ernakulam, Kanpur, Mexico City.
