Raninox Steel is a trusted name in the metal industry, specializing in the manufacturing and supply of high-quality C92300 Leaded Tin Bronze Pipes & Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. With a commitment to precision engineering, superior quality, and global standards, we serve industries ranging from marine and automotive to heavy engineering and construction.

C92300 Leaded Tin Bronze pipes and tubes is widely used due to its excellent machinability and wear resistance. Industries prefer this alloy for components such as bearings, bushings, and gears due to its long-lasting performance.

C92300 Leaded Tin Bronze sheets are widely used for fabrication, stamping, machining, and industrial component production. Their consistent material behavior makes them a dependable choice for engineering work. C92300 Bronze Plates are suitable for heavy-duty machining, base plates, wear parts, and large-format industrial applications. C92300 Bronze Coils are used where bronze sheet material is needed in a continuous or roll form for efficient manufacturing and fabrication.

C92300 Leaded Tin Bronze round bars are widely used for bushings, bearings, gears, valve parts, piston rings, fasteners, and machined components. C92300 Bronze Round Bars are ideal for machining into precision components such as shafts, pins, bushings, and industrial fittings.

C92300 Leaded Tin Bronze pipe fittings provide durable connection solutions for industrial and fluid-handling systems. They are valued for corrosion resistance and long service life.

Specifications for C92300 Leaded Tin Bronze

End Product Specification
Centrifugal ASTM B271, SAE J462, J461
Continuous ASTM B505, SAE J461, J462
Fittings ASME B16.24, SB61, ASTM B61, FEDERAL WW-P-460
Flanges ASME SB61, ASTM B61, FEDERAL WW-P-460
Ingot ASTM B30
Sand ASME SB61, SB584, ASTM B61, B584, SAE J461, J462
Valves MILITARY MIL-V-17547

C92300 Leaded Tin Bronze Equivalent Grades

CDA ASTM SAE AMS Federal Military Other
C92300 B505
B505M
B143-2B		 621
J461
J462		   QQ-C-390, D3;
QQ-B-1005, Comp 6		 MIL-B-11553, Comp 6

C92300 Leaded Tin Bronze Chemical Composition

Cu%1 Pb% Sn% Zn% Fe% P%2 Ni%3 Al% S% Sb% Si%
85.00-
89.00		 0.30-
1.00		 7.50-
9.00		 2.50-
5.00		 0.25 0.05 1.00 0.005 0.05 0.25 0.005

C92300 Leaded Tin Bronze Mechanical Properties

Tensile Strength, min Yield Strength, at .5% Extension Under Load, min Elongation, in 2 in. or 50 mm min Brinell Hardness (500 kg load) Remarks
ksi MPa ksi MPa % typical BHN
40 276 19 131 16 70

C92300 Leaded Tin Bronze Physical Properties

Product Property US Customary Metric
Melting Point – Liquidus 1830° F 999 °C
Melting Point – Solidus 1570° F 854 °C
Incipient Melting 600° F 315 °C
Density 0.317 lb/in3 at 68° F 8.77 gm/cm3 at 20 °C
Specific Gravity 8.77 8.77
Electrical Conductivity 12% IACS at 68° F 0.07 MegaSiemens/cm at 20 °C
Thermal Conductivity 43.20 Btu/sq ft/ft hr/°F at 68 °F 74.8 W/m at 20 °C
Coefficient of Thermal Expansion 68-392 10 · 10-6 per °F (68-392° F) 17.3 · 10-6 per °C (20-200 °C)
Specific Heat Capacity 0.09 Btu/lb/°F at 68° F 377.1 J/kg at 293 °C
Modulus of Elasticity in Tension 14000 ksi 96500 MPa

C92300 Leaded leaded tin bronze pipes and tubes supplier, C92300 Leaded bronze sheets and plates manufacturer,Navy M bronze round bars exporter, C92300 Leaded bronze pipe fittings for industrial use, ASTM B61 C92300 Leaded bronze products, leaded tin bronze for bearings and bushings, corrosion resistant bronze alloy for valves in Mumbai, India.

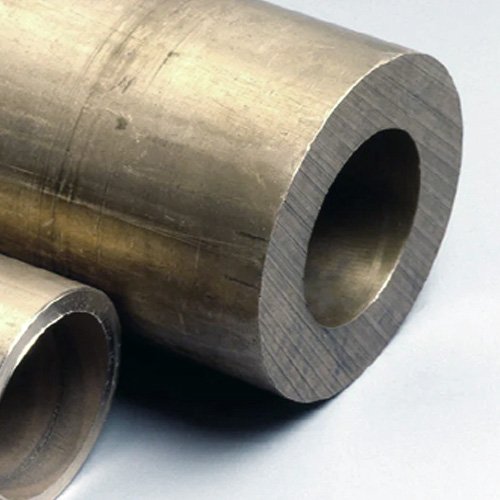

C92300 Leaded Tin Bronze Pipes & Tubes

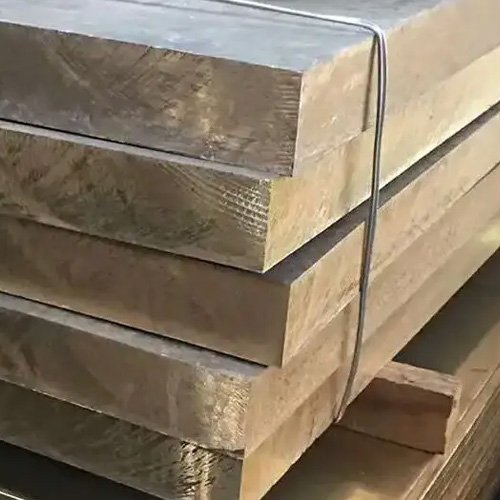

C92300 Leaded Tin Bronze Sheets, Plates & Coils

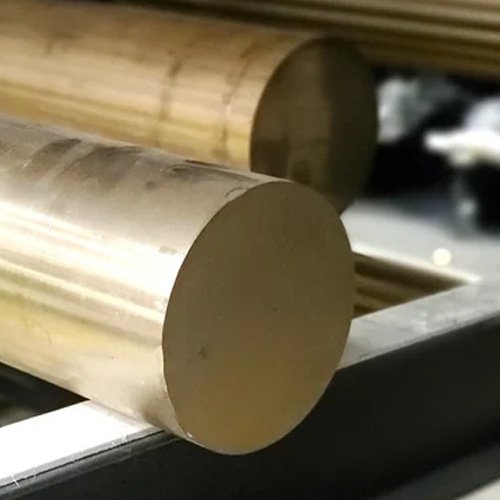

C92300 Leaded Tin Bronze Round Bars

C92300 Leaded Tin Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C92300 Leaded Tin Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C92300 Leaded Tin Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
