C63600 Silicon Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C63600 Silicon Aluminum Bronze Tubes, C63600 Silicon Aluminum Bronze Sheets & Plates, C63600 Silicon Aluminum Bronze Bars, CDA C63600 Silicon Aluminum Bronze Sheets, C63600 Silicon Aluminum Bronze Pipes, CDA C630 Nickel Aluminum Bronze Coils, C63600 Silicon Aluminum Bronze, C63600 Pipes, C63600 Tubes, C63600 Round Bars, C63600 Plates, Aluminum Bronze Fittings, Silicon Aluminum Bronze Supplier, C63600 Bronze Exporter, ASTM B150 C63600 in Mumbai, India.

Raninox Steel is leading supplier and exporter of C63600 Silicon Aluminum Bronze in the form of Pipes & Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. This high-strength bronze alloy combines excellent corrosion resistance, superior wear properties, and exceptional mechanical strength, making it ideal for marine, heavy-duty, and industrial applications.

Our materials comply with international standards and are available in custom sizes, thicknesses, and specifications as per client requirements.

We supply C63600 Silicon Aluminum Bronze Pipes & Tubes are available in seamless and welded forms, designed to perform in high-pressure and corrosive applications. Our provided C63600 pipes is Excellent resistance to seawater and brine, High mechanical strength, Long service life, Resistance to stress corrosion cracking and widely used in Marine piping systems, Offshore oil & gas platforms, Heat exchangers etc.

C63600 Silicon Aluminium Bronze Sheets & Plates are ideal for applications where superior corrosion resistance, strength and electrical conductivity are required. These sheets and plates have high tensile strength, low thermal expansion rates, good wear and fatigue properties, and excellent machinability and weldability.

The C63600 Silicon Aluminum Bronze Bars & Rods possess good hot and cold workability, forging ability and is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion.

We covers UNS C63600 Fasteners such as hex bolts, studs, stud bolts, hex nuts, washers, threaded rod and other fastener in metric and inch sizes with coarse, fine. Si-Al Bronze exhibits excellent mechanical strength, making it suitable for applications demanding robust materials.

Specifications for C63600 Silicon Aluminum Bronze

End Product Specification
Bar AMS 4631, ASME SB150, ASTM B150
Bar, Forging ASTM B124
Bolts ASTM F468
Forgings, Die AMS 4631, ASME SB283, ASTM B283
Nuts ASTM F467
Rod AMS 4631, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes ASTM B150
Shapes, Forging ASTM B124
Studs ASTM F468

C63600 Silicon Aluminum Bronze Equivalent Grades

Specifications Designation
ASTM ASTM B505 / ASTM B271
UNS C95510
SAE SAE J461 / SAE J462
Military/AMS QQ-C-390B
AMS AMS 4880
Military Specification MIL-B-16033 Class 4
CDA C95510

C63600 Silicon Aluminum Bronze Chemical Composition

  Al As Cu Fe Pb Ni Si Sn Zn
Min/Max 3.0 - 4.0 0.15 Rem 0.15 0.05 0.15 0.7 - 1.3 0.2 0.5
Nominals 3.5000 - 95.5000 - - - 1.0000 - -

C63600 Silicon Aluminum Bronze Mechanical Properties

Separately Cast Coupons English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings 1.0” and Under English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings Over 1.0” English Metric
Tensile Strength, min. 95.0 ksi 655 MPa
Yield Strength@ 0.2% Offset, min. 50.0 ksi 345 MPa
Elongation in 4D 8% 8%

C63600 Silicon Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient Of Thermal Expansion 9.4 10−6Per °F (68-572 F) 16.9 10−6Per °F (20-300 C)
Density 0.301 Lb/In3 At 68 F 8.33 Gm/Cm3 @ 20 C
Electrical Conductivity 12 %IACS @ 68 F 0.07 MegaSiemens/Cm @ 20 C
Electrical Resistivity 86.4 Ohms-Cmil/Ft @ 68 F 14.36 Microhm-Cm @ 20 C
Melting Point - Liquidus 1890 F 1032 C
Modulas Of Elasticity In Tension 16000 Ksi 110000 MPa
Specific Gravity 8.33 8.33
Thermal Conductivity 33.0 BTU In/Hr.Ft2.°F ) At 68F 57.1 W/M · OK At 20 C

C63600 Silicon Aluminum Bronze Plates, CDA C63600 Pipes Supplier, C63600 Silicon Aluminum Bronze Sheets & Plates, C63600 Silicon Aluminum Bronze Alloy Pipes Manufacturer, C63600 Silicon Aluminum Bronze Round Bars Supplier, CDA C63600 Silicon Aluminum Bronze Coils, C63600 Silicon Aluminum Bronze Rods, C63600 Silicon Aluminum Bronze Tubes Supplier in Mumbai, India.

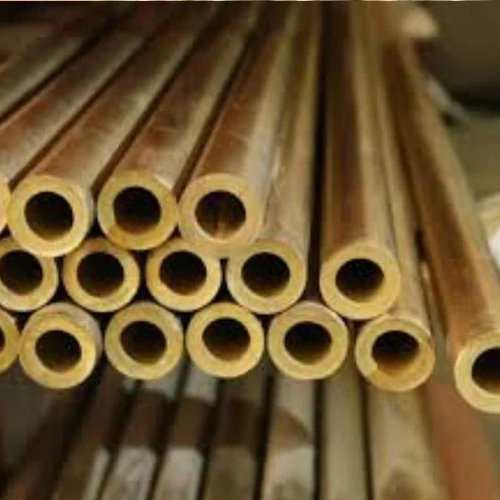

C63600 Silicon Aluminum Bronze Pipes & Tubes

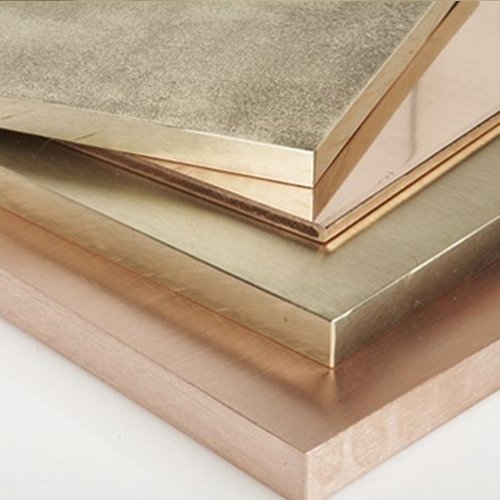

C63600 Silicon Aluminum Bronze Sheets, Plates & Coils

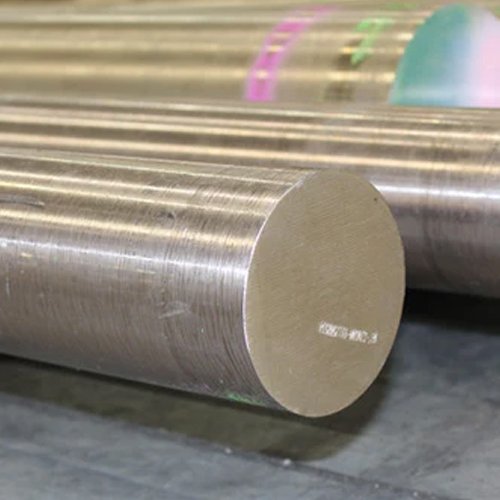

C63600 Silicon Aluminum Bronze Round Bars

C63600 Silicon Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C63600 Silicon Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C63600 Silicon Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

C63600 Silicon Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of C63600 Silicon Aluminum Bronze

C63600 Silicon Aluminum Bronze Plates Manufacturer C63600 Silicon Aluminum Bronze Slit Coils Supplier in India
CDA C63600 Silicon Aluminum Bronze Pipes at Best Price in India C63600 Silicon Aluminum Bronze Hex Bars Stockists
CDA C63600 Silicon Aluminum Bronze Strip Dealer in India CDA C63600 Silicon Aluminum Bronze Sheets Plates Wholesaler
C63600 Silicon Aluminum Bronze Round Rod Dealer CDA C63600 Silicon Aluminum Bronze ERW Pipes Manufacturer
C63600 Silicon Aluminum Bronze Rectangular Bars C63600 Silicon Aluminum Bronze Square Bars Supplier
CDA C63600 Silicon Aluminum Bronze Coils Supplier in Mumbai CDA C63600 Silicon Aluminum Bronze Condenser Tube Supplier
CDA C63600 Silicon Aluminum Bronze Sheets Stockist C63600 Silicon Aluminum Bronze Pipes Supplier
Phosphor Bronze C52100 Forgins CDA C63600 Silicon Aluminum Bronze Bolts Supplier
CDA C63600 Silicon Aluminum Bronze Coils CDA C63600 Silicon Aluminum Bronze Perforated Sheets Cut to Size
CDA C63600 Silicon Aluminum Bronze Nut Sheet Supplier in India C63600 Silicon Aluminum Bronze Round Bars Supplier

C63600 Silicon Aluminum Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
