C66800 Manganese Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C66800 Manganese Bronze Tubes, C66800 Manganese Bronze Sheets & Plates, C66800 Manganese Bronze Bars, CDA C66800 Manganese Bronze Sheets, C66800 Manganese Bronze Coil, Silicon Bronze Pipe Tube, Marine Grade Manganese Bronze, High Strength Bronze Alloy, Industrial Bronze Supplier, C66800 Bronze Price, C66800 Bronze Stockist, Copper Zinc Manganese Alloy Supplier in Mumbai, India.

Raninox Steel is a leading manufacturer and supplier of premium quality C66800 Manganese Bronze Pipes & Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C66800 Manganese Bronze is a high-strength copper alloy widely used in demanding industrial applications. Its unique composition offers excellent corrosion resistance, especially in marine environments.

We offers C66800 Manganese Bronze Pipes & Tubes built for strength, durability, and corrosion resistance. Ideal for marine and industrial systems, our products deliver reliable performance in demanding environments.

Our C66800 Manganese Bronze Sheets, Plates & Coils provide excellent wear resistance, formability, and long-term durability for fabrication and engineering applications. They provide excellent formability, strength, and resistance to wear, making them suitable for demanding mechanical environments.

Precision-engineered C66800 Manganese Bronze Round Bars from Raninox Steel are suitable for shafts, bearings, and machined parts that require dependable mechanical strength. C66800 Manganese Bronze Round Bars are used for precision-machined components that require high strength and exceptional durability. They are ideal for shafts, fasteners, bearings, and other critical parts.

Our C66800 Manganese Bronze Pipe Fittings are manufactured to ensure leak-free performance, pressure resistance, and durability in harsh industrial conditions. They are suitable for marine and fluid handling systems where corrosion resistance is a priority.

Specifications for C66800 Manganese Bronze

End Product Specification
Bar SAE J461, J463
Forgings SAE J461, J463
Rod SAE J463, J461
Shapes SAE J463, J461

C66800 Manganese Bronze Equivalent Grades

Specifications Designation
ASTM B249
UNS C66800
SAE J461, J463
ISO CuZn20Al2As

C66800 Manganese Bronze Chemical Composition

Elements
Cu(1,2) Pb Sn Zn Fe Ni(3) Al Mn Si
Min (%) 57.0 0.25 0.15 1.0 1.5 0.25
Max (%) 58.5 0.8 0.35 Rem 0.55 0.25 2.0 2.5 0.7

C66800 Manganese Bronze Mechanical Properties

Form Temper Temper Code Tensile Strength
(ksi) 		YS-0.2% Offset
(ksi)		 Elongation
(%) 		Rockwell B scale Section Size
(in)
* Measured at room temperature, 68°F (20°C).
Bar 1/2 Hard H02 82 Typ
 46 Typ
 18 Typ
 1.5
Rod 1/2 Hard H02 87 Typ
 46 Typ
 15 Typ
 85 Typ
 1.25
As Hot Extruded M30 82 Typ
 44 Typ
 20 Typ
 1.25
Hard H04 90 Typ
 69 Typ
 0.375
Tube As Hot Extruded M30 90 Typ
 47 Typ
 12 Typ
 2.5

C66800 Manganese Bronze Physical Properties

Product Property US Customary Metric
Melting point - liquidus 1625 °F 885 °C
Melting point - solidus 1590 °F 866 °C
Density 0.292 lb/in3 at 68 °F 8.08 gm/cm3 at 20 °C
Specific gravity 8.08 8.08
Electrical conductivity 23% IACS at 68 °F 0.13 MegaSiemens/cm at 20 °C
Thermal conductivity 58 Btu/sq ft/ft hr/°F at 68 °F 100.5 W/m at 20 °C
Coefficient of thermal expansion 68-572 11 · 10-6 per °F (68-572 °F) 19 · 10-6 per °C (20-300 °C)
Specific heat capacity 0.09 Btu/lb/°F at 68 °F 377.1 J/kg at 20 °C
Modulus of elasticity in tension 16000 ksi 110317 MPa
Modulus of rigidity 6000 ksi 41369 MPa

C66800 Manganese Bronze Supplier, C66800 Manganese Bronze Manufacturer, C66800 Manganese Bronze Exporter, C66800 Bronze Pipes, C66800 Bronze Tubes, C66800 Bronze Sheets, C66800 Bronze Plates, C66800 Bronze Coils, C66800 Bronze Round Bars, Manganese Bronze ASTM B505, Manganese Bronze ASTM B584 Bars in Mumbai, India.

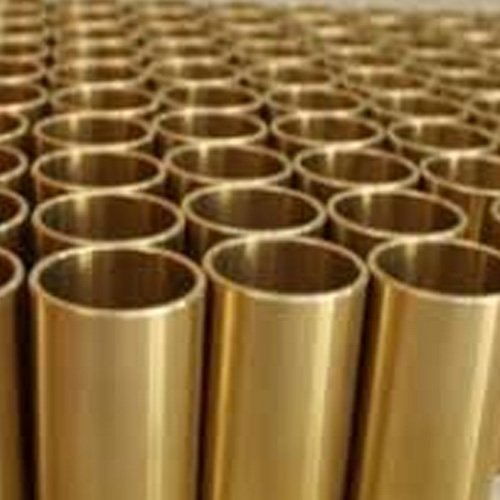

C66800 Manganese Bronze Pipes & Tubes

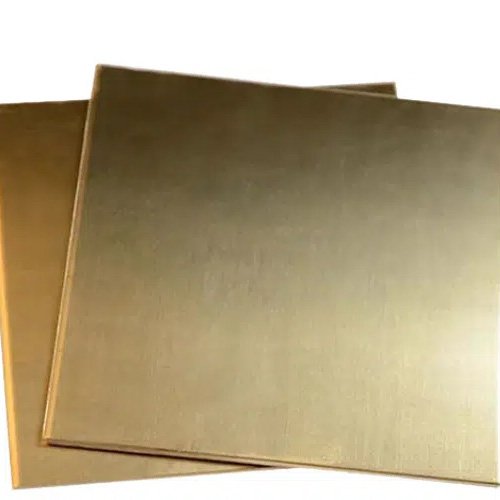

C66800 Manganese Bronze Sheets, Plates & Coils

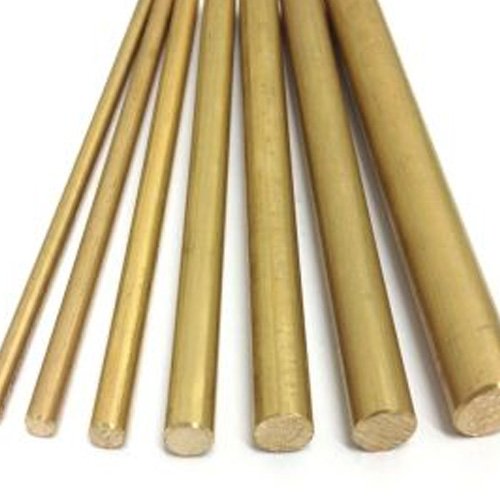

C66800 Manganese Bronze Round Bars

C66800 Manganese Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C66800 Manganese Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C66800 Manganese Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
