AMS 4640 Nickel Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of AMS 4640 Nickel Aluminum Bronze Tubes, AMS 4640 Nickel Aluminum Bronze Plates, AMS 4640 Nickel Aluminum Bronze Bars, AMS 4640 Nickel Aluminum Bronze Sheets, AMS 4640 Nickel Aluminum Bronze Pipes, AMS 4640 Nickel Aluminum Bronze Coils, AMS 4640 Round Bars Supplier, AMS 4640 Pipe Fittings, Copper Alloy AMS 4640 Supplier in Mumbai, India.

Raninox Steel is a trusted name in the global metal industry, specializing in the manufacturing and supply of high-quality AMS 4640 Nickel Aluminum Bronze products. We offer a variety of products, such as pipes, tubes, sheets, plates, coils, round bars, and pipe fittings, with a strong dedication to accuracy, durability, and international standards.

Nickel Aluminum Bronze AMS 4640 Pipes & Tubes are made for harsh conditions. These products are renowned for their superb performance in industrial and seawater applications, high strength, and outstanding resistance to corrosion. Heat exchangers, condensers, pump parts, heavy-duty fluid handling systems, and maritime equipment all make extensive use of them.

Our AMS 4640 Nickel Aluminum Bronze Sheets are expertly crafted for uses that need robustness, resistance to corrosion, and consistent fabrication performance. These sheets are frequently utilized in structural applications, industrial machinery, and marine components. AMS 4640 Nickel Aluminum Bronze Plates have exceptional mechanical qualities and remarkable environmental resilience. Our AMS 4640 Nickel Aluminum Bronze Coils are perfect for industrial processing, shaping, and fabrication. They provide exceptional resistance to wear and corrosion, precise measurements, and constant quality.

AMS 4640 Nickel Aluminum Bronze Round Bars are frequently utilized in heavy-duty industrial applications, machined parts, fasteners, and shafts. These bars provide outstanding machining performance, strength, and resistance to wear.

Our AMS 4640 Nickel Aluminum Bronze Pipe Fittings are made for dependable operation in pressure and fluid transfer systems. They work particularly well in corrosive settings, such as offshore and maritime facilities. We offer a wide range of pipe fittings including elbows, tees, reducers, and flanges.

Specifications for AMS 4640 Nickel Aluminum Bronze

End Product Specification
Bar ASTM B150
Pipe ASTM B315
Rod ASTM B150
Sheets, Plates AMS 4640, ASTM B150
Tube ASTM B315

AMS 4640 Nickel Aluminum Bronze Equivalent Grades

Specifications Designation
ASTM ASME SB150, ASTM B-150, B-124, B-171, B-283
UNS AMS 4640
SAE SAE J463
Military/AMS QQ-C-465B
AMS AMS 4880
Military Specification MIL-B-16033 Class 4
CDA AMS 4640

AMS 4640 Nickel Aluminum Bronze Chemical Composition

Element Symbol Range % Nominal %
Aluminium Al 9.0-11.0 10.0
Iron Fe 2.0-4.0 3.0
Nickel Ni 4.0-5.0 5.0
Manganese Mn 1.5 maximum
Tin Sn 0.2 maximum
Zinc Zn 0.3 maximum
Silicon Si 0.25 maximum
Copper Cu Balance

AMS 4640 Nickel Aluminum Bronze Temper

Product Type Temper Type
HR50 extruded / cold drawn / heat treated (3/4" diameter inclusive)
TQ50 hot forged / heat treated (3 1/8" - 8" diameter inclusive)

AMS 4640 Nickel Aluminum Bronze Mechanical Properties

Separately Cast Coupons English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings 1.0” and Under English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings Over 1.0” English Metric
Tensile Strength, min. 95.0 ksi 655 MPa
Yield Strength@ 0.2% Offset, min. 50.0 ksi 345 MPa
Elongation in 4D 8% 8%

AMS 4640 Nickel Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 90 10-6 per oF (68-572 F) 16.2 · 10-6 per oC (20-300 C)
Density 0.272 lb/in3 at 68 F 7.53 gm/cm3 @ 20 C
Electrical Conductivity 8.5 %IACS @ 68 F 0.049 MegaSiemens/cm @ 20 C
Electrical Resistivity 122.8 ohms-cmil/ft @ 68 F 20.41 microhm-cm @ 20 C
Magnetic Permeability (As Cast) 1.32 1.32
Magnetic Permeability (TQ50 temper) 1.2 1.2
Melting Point - Liquidus 1930 F 1054 C
Melting Point - Solidus 1900 F 1038 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Poisson's Ratio 0.32 0.32
Specific Gravity 7.53 7.53
Specific Heat Capacity 0.1 Btu/lb/oF at 68 F 419.0 J/kg · oK at 293 K
Thermal Conductivity 24.2 Btu · ft/(hr · ft2 · oF)at 68F 41.9 W/m · oK at 20 C

AMS 4640 Sheets & Plates, Nickel Aluminum Bronze Fittings, Marine Grade Bronze Supplier, AMS 4640 Material Properties, Nickel Aluminum Bronze Exporter, AMS 4640 Nickel Aluminum Bronze, Nickel Aluminum Bronze Manufacturer, AMS 4640 Supplier, Nickel Aluminum Bronze Pipes, AMS 4640 Round Bars India in Mumbai, India.

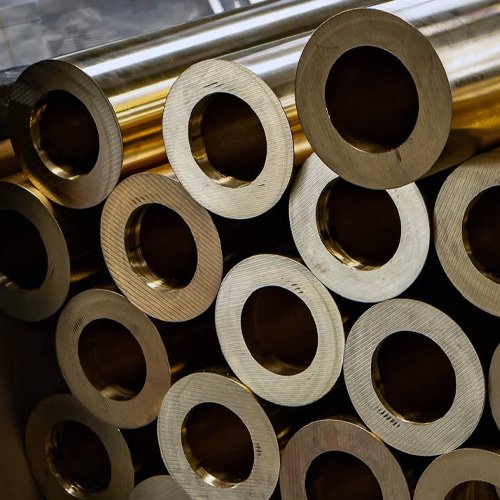

AMS 4640 Nickel Aluminum Bronze Pipes & Tubes

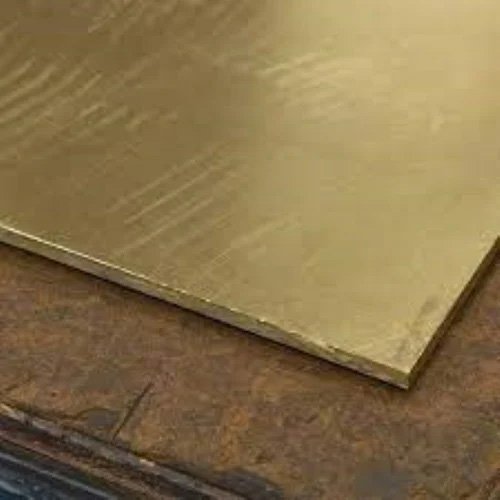

AMS 4640 Nickel Aluminum Bronze Sheets, Plates & Coils

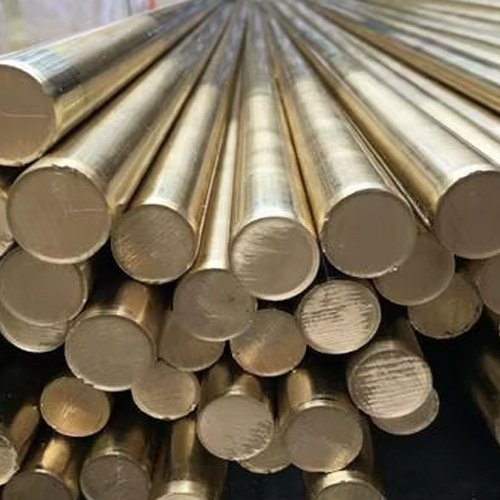

AMS 4640 Nickel Aluminum Bronze Round Bars

AMS 4640 Nickel Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

AMS 4640 Nickel Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

AMS 4640 Nickel Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

AMS 4640 Nickel Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of AMS 4640 Nickel Aluminum Bronze

AMS 4640 Nickel Aluminum Bronze Plates Manufacturer AMS 4640 Nickel Aluminum Bronze Slit Coils Supplier in India
AMS 4640 Nickel Aluminum Bronze Pipes at Best Price in India AMS 4640 Nickel Aluminum Bronze Hex Bars Stockists
AMS 4640 Nickel Aluminum Bronze Strip Dealer in India AMS 4640 Nickel Aluminum Bronze Sheets Plates Wholesaler
AMS 4640 Nickel Aluminum Bronze Round Rod Dealer AMS 4640 Nickel Aluminum Bronze ERW Pipes Manufacturer
AMS 4640 Nickel Aluminum Bronze Rectangular Bars AMS 4640 Nickel Aluminum Bronze Square Bars Supplier
AMS 4640 Nickel Aluminum Bronze Coils Supplier in Mumbai AMS 4640 Nickel Aluminum Bronze Condenser Tube Supplier
AMS 4640 Nickel Aluminum Bronze Sheets Stockist AMS 4640 Nickel Aluminum Bronze Pipes Supplier
AMS 4640 Forgins AMS 4640 Nickel Aluminum Bronze Bolts Supplier
AMS 4640 Nickel Aluminum Bronze Coils AMS 4640 Nickel Aluminum Bronze Perforated Sheets Cut to Size
AMS 4640 Nickel Aluminum Bronze Nut Sheet Supplier in India AMS 4640 Nickel Aluminum Bronze Round Bars Supplier
