C92500 Tin Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C92500 Tin Bronze Tubes, C92500 Tin Bronze Sheets & Plates, C92500 Tin Bronze Bars, CDA C92500 Tin Bronze Sheets, C92500 Tin Bronze, C92500 Pipes and Tubes, C92500 Sheets Supplier, C92500 Plates Manufacturer, Bronze Bearing Material, Marine Bronze Alloy, ASTM B505 Bronze, ASTM B271 Bronze, Bronze Bush Material, Industrial Bronze Components, Copper Tin Alloy Supplier, Continuous Cast Bronze Bars, C92500 Round Bars Exporter & Supplier in Mumbai, India.

Raninox Steel is a trusted manufacturer and supplier of premium-quality C92500 Tin Bronze products, including pipes, tubes, sheets, plates, coils, round bars, and pipe fittings. We produce products that fulfill the demanding requirements of industries such as maritime, oil and gas, construction, and engineering by focusing on precision engineering, high-quality raw materials, and global standards.

We make high-performance C92500 Tin Bronze Pipes & Tubes for industrial applications that require durability and corrosion resistance. These tubes are ideal for fluid-handling systems, precision assembly, machinery parts, and specialized engineering projects that require dependable bronze performance.

Our C92500 sheets and plates are made from premium-grade bronze alloys, which provide exceptional strength, formability, and surface quality for fabrication, machining, and component production. They're commonly employed in worn parts, bearing surfaces, machine coverings, and industrial assemblies. C92500 Tin Bronze Coils are appropriate for applications that require a flexible stock material for forming, cutting, stamping, and fabricating. These coils provide constant processing and are appropriate for engineering and production applications.

Our C92500 tin bronze round bars are used in machining, turning, bush fabrication, and general engineering applications. They are ideal for components requiring strength, wear resistance, and dimensional stability.

We supplies C92500 tin bronze pipe fittings for long-lasting connections in harsh service situations. These fittings are appropriate for systems that require high corrosion resistance and mechanical strength.

Specifications for C92500 Tin Bronze

End Product Specification
Continuous ASTM B505, SAE J461, J462
Ingot ASTM B30
Sand SAE J462, J461

C92500 Tin Bronze Equivalent Grades

CDA ASTM SAE
C92500 (SAE 620) ASTM: B505, B505M J461, J462

C92500 Tin Bronze Chemical Composition

  Al Sb Cu Fe Pb Ni P Si S Sn Zn
Min/Max 0.005 0.25 85.0 - 88.0 0.3 1.0 - 1.5 0.80 - 1.5 0.3 0.005 0.05 10.0 - 12.0 0.5
Nominals - - 86.5000 - 1.3000 1.2000 - - - 11.0000 -

C92500 Tin Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
As Continous Cast
M07       68 40 24 - - - - - - - - - - - -
M07   0 SMIN 20 276 165 - - 10 - - - - - - - - - 0
As Sand Cast
M01       68 44 20 - - - - - - - - - - - -
M01   0 TYP 20 303 138 - - 20 - - - - - 80 - - - 0

C92500 Tin Bronze Physical Properties

Product Property US Customary Metric
Density 0.317 lb/in3 at 68 F 8.7 gm/cm3 @ 20 C
Incipient Melting 600 oF 316 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Specific Gravity 8.7 8.7
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg · oK at 293 K

C92500 Tin Bronze Supplier, C92500 Tin Bronze Manufacturer, C92500 Tin Bronze Exporter, C92500 Bronze Pipes, C92500 Bronze Tubes, C92500 Bronze Sheets, C92500 Tin Bronze, Gun Metal Bronze Supplier, C92500 Bronze Pipes, C92500 Bronze Tubes, C92500 Bronze Sheets, C92500 Bronze Plates, C92500 Bronze Round Bars, C92500 Bronze Coils, Tin Bronze Manufacturer, C92500 Alloy Material, C92500 Bronze Rod in Mumbai, India.

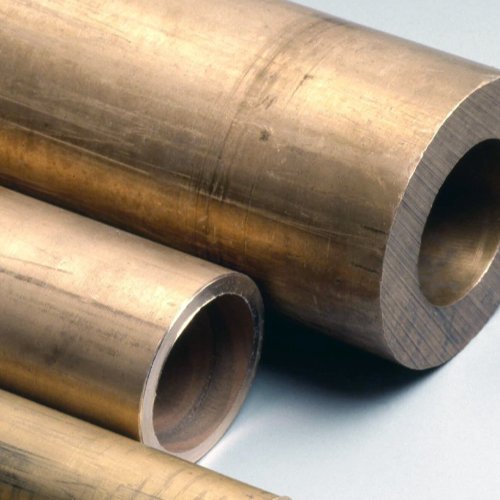

C92500 Tin Bronze Pipes & Tubes

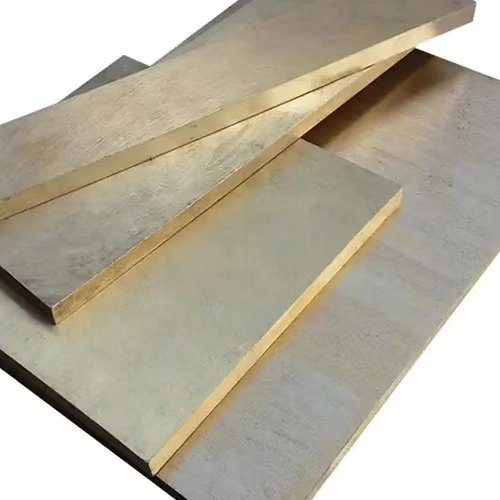

C92500 Tin Bronze Sheets, Plates & Coils

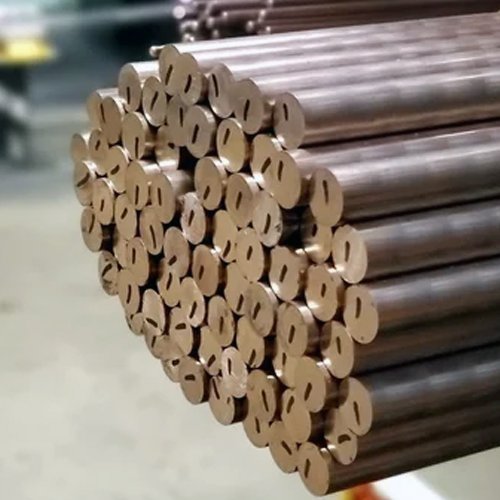

C92500 Tin Bronze Round Bars

C92500 Tin Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C92500 Tin Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C92500 Tin Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
