C28000 Red Brass Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of ASTM B36 C28000 Brass Pipes, C28000 Red Brass Tubes, C28000 brass Pipe Fittings supplier, ASTM B134 red brass Sheets, ASTM B36 red brass Plates, C28000 red brass round bars, UNS C28000 rods, leaded red brass alloy Plates, C28000 Muntz Metal Bars, marine brass alloy Coils supplier, C28000 Brass Fittings Manufacturer, UNS C28000 Brass Sheet Supplier, ASTM Brass Alloy C28000 Manufacturer stockist India, Yellow Brass C28000 Rods, C28000 Red Brass Material in Mumbai, India.

Raninox Steel is leading supplier and exporter of C28000 Red Brass Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. delivering high-quality brass products for industrial and commercial applications worldwide. C28000 Red Brass, also known as 60/40 Brass, is widely used due to its excellent corrosion resistance, strength, ductility, and machinability.

With approximately 60% copper and 40% zinc, this alloy offers exceptional performance in demanding environments such as marine, plumbing, electrical, construction, and heat exchanger applications. C28000 Red Brass, commonly known as Muntz Metal, is a copper-zinc alloy containing approximately 60% copper and 40% zinc.

C28000 Red Brass Pipes and Tubes are widely used in industries that require high corrosion resistance, durability, and excellent conductivity. These pipes are manufactured with precision to ensure dimensional accuracy and superior performance. Our brass pipes and tubes are available in seamless and welded forms and comply with global standards such as ASTM, ASME, DIN, and EN specifications.

Raninox Steel manufactures C28000 Red Brass Sheets and Plates with high dimensional precision and excellent surface finish. These sheets are widely used in industrial fabrication, architectural decoration, and electrical applications. The alloy provides excellent cold working characteristics, making it suitable for deep drawing and forming processes. Our C28000 Brass Coils are manufactured with high precision and consistent thickness. These coils are used in industries requiring flexible forming, bending, and stamping applications.

We supplies C28000 Red Brass Round Bars with high dimensional accuracy and superior mechanical properties. These bars are widely used in machining, forging, and manufacturing components. Our round bars are available in custom diameters, lengths, and finishes to meet specific industrial requirements.

We manufacture C28000 Red Brass Pipe Fittings including elbows, tees, reducers, couplings, and connectors. These fittings provide leak-proof connections and excellent resistance to corrosion, making them ideal for plumbing and fluid transfer systems.

We export our C28000 brass products to Middle East, Europe, Asia, Africa, and America, serving industries with reliable and durable metal solutions.

Specifications for C28000 Red Brass

End Product Specification
Bar ASTM B36
Fittings ASME B16.29, B16.22
Nipples ASTM B687
Pipe ASME SB43, ASTM B698, B43
Plate ASTM B36
Sheet ASTM B36, SAE J461, J463
Strip ASTM B888, B36, SAE J463, J461
Tube ASTM B569, B698
Tube, Condenser ASME SB111, ASTM B111
Tube, Finned ASME SB359, ASTM B359
Tube, Seamless AMS 4553, ASME SB135, ASTM B135, FEDERAL WW-T-791, MILITARY MIL-T-20168, SAE J461, J463
Tube, U-Bend ASME SB395, ASTM B395
Tube, Welded ASME SB543, ASTM B587, B543
Wire ASTM B134

C28000 Red Brass Equivalent Grades

STANDARD WERKSTOFF NR. UNS EN DIN CEN/TS 13388 JIS BS
Brass C28000 2.0402 C28000 CuZn40 CW617N C 3771 CZ 122

C28000 Red Brass Chemical Composition

  Cu Fe Pb Zn
Min 59.0 - 63.0 - - -
Max - 0.07 0.09 Rem

C28000 Red Brass Mechanical Properties

Element Melting point-liquidus Density Melting point-solidus Tensile strength Elongation Yield strength
C28000 Brass Metric – 904°C / Imperial – 1660°F 8.39 gm/cm3 Metric – 899°C / Imperial – 1650°F 360 MPa, 52200 psi 52 140 MPa, 20300 psi

C28000 Red Brass Physical Properties

Product Property Metric US Customary
Density 8.39 gm/cm3 @ 20 C 0.303 lb/in3 @ 68 F
Coefficient of Thermal Expansion 20.9 · 10 6? per °C (20-300 C) 11.6 ·10-6 per oF (68-572 F)
Thermal Conductivity 1229.9 W/m · °K at 20 C 71.0 Btu · ft/(hr · ft2 ·°F) @ 68 F
Electrical Resistivity 6.15 microhm-cm @ 20 C 37.0 ohms-cmil/ft @ 68 F
Melting Point Liquid US 904 C 1660 F
Electrical Conductivity 0.164 MegaSiemens/cm @ 20 C 28 %IACS @ 68 F
Melting Point Solid US 899 C 1650 F
Modulas of Rigidity 38610 MPa 5600 ksi
Modulas of Elasticity in Tension 103400 MPa 15000 ksi
Specific Gravity 8.39 8.39
Specific Heat Capacity 377.1 J/kg · °K at 293 K 0.09 Btu/lb/°F @ 68 F

C28000 Red Brass Pipes C28000 Brass Tubes Supplier, C28000 Red Brass Sheets Exporter, C28000 Brass Plates, C28000 Red Brass Coils Supplier, C28000 Brass Round Bars, C28000 Brass Pipe Fittings Supplier, 60/40 Brass Products, Red Brass Alloy C28000 Supplier, C28000 Brass Pipes, C28000 Brass Tubes Stockist, Industrial C28000 Brass Products, Marine Grade Red Brass Pipes, High Quality C28000 Brass Sheets, C28000 Brass Coil Supplier India, C28000 Brass Round Bar, Red Brass Pipe Fittings, ASTM B36 C28000 Brass Products, C28000 Brass Plates Supplier India, Best C28000 Brass Manufacturer India, C28000 Brass Components Supplier, Custom C28000 Brass Products Exporter in Mumbai, India.

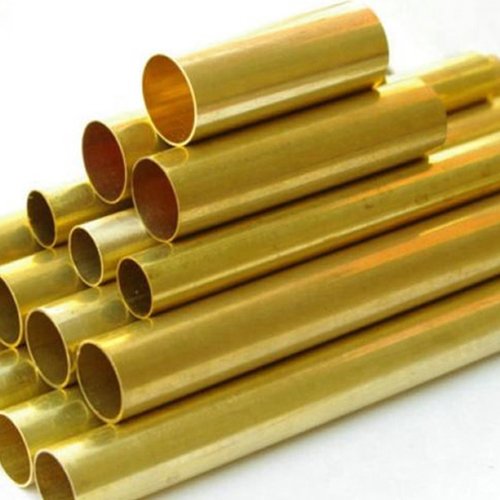

C28000 Red Brass Pipes & Tubes

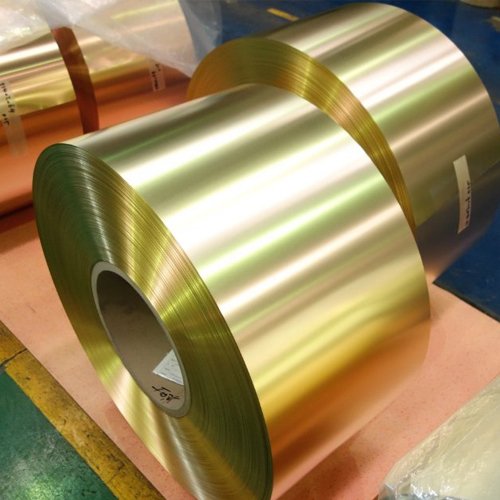

C28000 Red Brass Sheets, Plates & Coils

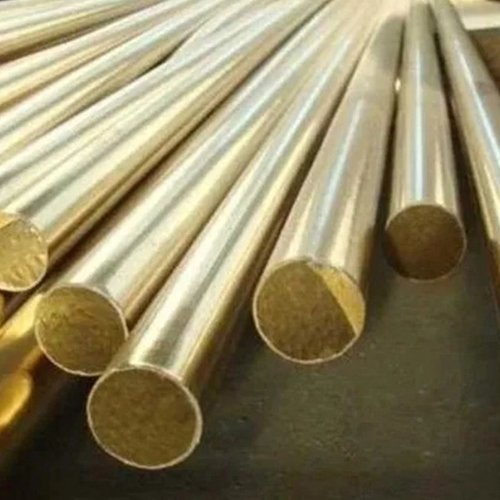

C28000 Red Brass Round Bars

C28000 Red Brass Sheets & Plates Size Chart

Brass Sheet Size Chart
Sizes Weight
(Millimeter) (kg/sheet)
2000 * 600 * 0.4 4.1
2000 * 600 * 0.5 5.14
2000 * 600 * 0.6 6.15
2000 * 600 * 0.8  8.19
2000 * 600 * 1.0 10.3
2000 * 600 * 1.2 12.2
2000 * 600 * 1.5 15.45
2000 * 600 * 2.0 20.52
2000 * 600 * 2.5 25.6
2000 * 600 * 3.0 30.72
1800 * 900 * 3.0 41.49
1800 * 900 * 5.0 69.09
2000 * 1000 * 6.0 103.2

C28000 Red Brass Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C28000 Red Brass Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
