Raninox Steel is a leading manufacturer & Supplier of Aluminium Bronze AB1 CA103 pipes, tubes, sheets, plates, coils, and round bars. Aluminium Bronze AB1 (CA103) is a high-performance copper-based alloy renowned for its outstanding strength, corrosion resistance, and wear-resistant properties. With a balanced composition of copper, aluminum, and trace elements, AB1 is engineered for demanding environments across marine, oil & gas, heavy machinery, and power generation industries.

Aluminium Bronze AB1 delivers superior mechanical performance, oxidation resistance, and fatigue strength, making it an ideal choice for critical components such as pipes, sheets, and bars that are exposed to harsh conditions.

For a variety of industrial applications, we provide ASTM B316 Aluminum Bronze Rod with exceptional strength and corrosion resistance. These Aluminium Bronze AB1 CA103 Rods created by high standards and accurate procedures are particularly popular in maritime applications as well as aerospace and engineering. To ensure that the aluminum bronze plates we supply to the market meet the highest standards available, we adhere to all UNS CA-104/C-95400 specifications. To accommodate any project, our aluminum bronze sheets are also offered in a variety of sizes, thicknesses, and dimensions. Depending on the weight and size you need, you can go through our selection of sheets.

Our AB1 Aluminium Bronze CA103 Pipes and Tubes offer superior performance and reliability in many applications. They have excellent thermal conductivity, low thermal expansion coefficient, good electrical properties, high strength-to-weight ratio, and strong handleability.

Specifications for Aluminium Bronze AB1 CA103 Pipes & Tubes

Standards ASTM B521 / ASME SB521
Size ½”NB – 24″NB
Schedule SCH 10 – SCH XXS
Type Seamless / ERW / Welded
Length Single Random, Double Random & Cut Length.
End Plain End, Beveled End, Treaded

Specifications for Aluminium Bronze AB1 CA103 Sheets, Plates & Coils

Specifications ASTM B708 / ASME SB708
Sheet thickness range from .008″ to .0125″
Size 15NB to 150NB In
Width 10mm – 2500mm
Length As Your Required
Purity ≥99.9% or 99.95%
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form Sheet, Shims.
Tantalum Grades R05200 / R05252 / R05255 / R05400 / R05240

Specifications for Aluminium Bronze AB1 CA103 Round Bars

Specifications ASTM B365 / ASME SB365
Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Size 5 mm To 500 mm
Length 9 – 12 metres
Form Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Finish Cold drawn, Bright drawn, Centreless ground, Cold finished, Peeled and turned, Smooth turned, Slit rolled edge, Hot finished, Hot rolled, Rough turned/peeled, Peeled and reeled
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements

Aluminium Bronze AB1 CA103 Equivalent Grades

BS 2872/BS 1400 ASTM/ASME UNS (United States) ISO/EN JIS Indian Standard (IS) European
CA103 / AB1 ASTM B150 / B505 – C62300 UNS C62300 CuAl10Fe3 H5114 / C6301 (depending on sub-designation) IS 10569 / IS 3091 CuAl0Ni5Fe4

Aluminium Bronze AB1 CA103 Chemical Composition

Grade Cu Al Ni Fe
CA103 Rem 9.5% 4.0% 4.0%

Aluminium Bronze AB1 CA103 Mechanical Properties

Grade CA103
Ultimate Tensile Strength (N/mm2) 570 – 650
0.2% Proof Strength (N/mm2) 260 – 340
Elongation (%) 22 – 30
Impact Strength (J) 21 – 48

Aluminium Bronze AB1 CA103 Physical Properties

Grade CA103
Density (g/cm3) 7840
Thermal conductivity (20°C;
W/m°K)		 42
Coeff. Thermal Exp. (0-300°C;
m/m°K x 10-6)		 16.8
Electrical Conductivity (% IACS) 7

Aluminium Bronze AB1 CA103 Plates, Aluminium Bronze AB1 CA103 Pipes Supplier, Aluminium Bronze AB1 CA103 Sheets & Plates, Aluminium Bronze AB1 CA103 Alloy Pipes Manufacturer, Aluminium Bronze AB1 CA103 Round Bars Supplier, Aluminium Bronze AB1 CA103 Coils, Aluminium Bronze AB1 CA103 Rods, Aluminium Bronze AB1 CA103 Tubes Supplier in Mumbai, India.

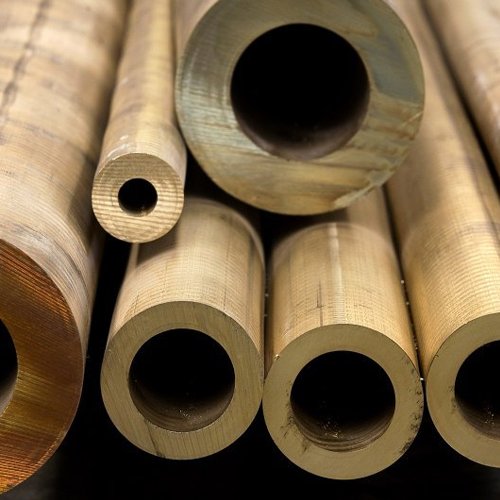

Aluminium Bronze AB1 CA103 Pipes & Tubes

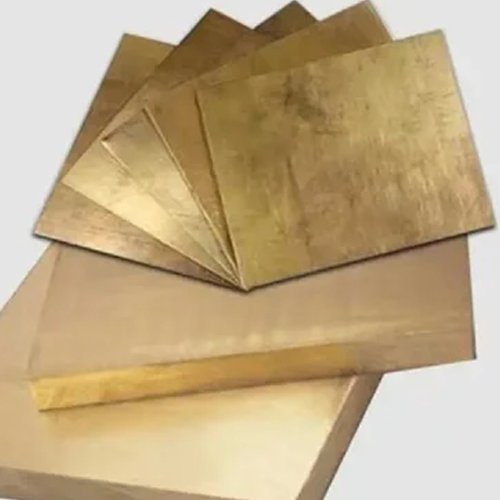

Aluminium Bronze AB1 CA103 Sheets, Plates & Coils

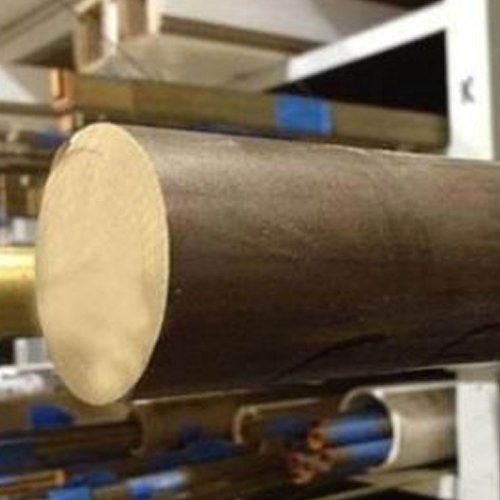

Aluminium Bronze AB1 CA103 Round Bars

Aluminium Bronze AB1 CA103 Sheets & Plates Size Chart

Size 0.063 01/8 01/8 3/16 01/4 03/8 01/4 1 ½ 03/8
Thick - 0.125 0.125 0.188 0.25 0.375 0.25 1.5 0.375
Size of sheets & plates 36 X 96 40 X 133 1/2 36 X 120 48 X 120 48 X 120 48 X 120 36 X 84 48 X 144 49 X 120
Size 01/2 01/2 01/2 01/2 03/4 1 03/4 1 ½ 2
Thick 0.5 0.5 0.5 0.5 0.75 1 0.75 1.5 2
Size of sheets & plates 36 X 120 48 X 120 39 X 120 48 X 144 48 X 144 48 X 120 48 X 120 48 X 96 48 X 72

Aluminium Bronze AB1 CA103 Sheets Weight Chart

Size (inch) 0.063 01/4 3/16 01/4 01/8 01/8 03/8 01/2 01/2
Thick – 0.25 0.188 0.25 0.125 0.125 0.375 0.5 0.5
Weight in lbs per sheet 66.744 225.75 307.8 430 19 .24 153.9 615.6 82 .8 666.9
lbs per sq. ft 2.781 1 .750 7.7 1 .750 5.13 5.13 15.39 2 .520 2 .520
Size (inch) 01/2 01/2 03/8 03/4 1 ½ 1 ½ 03/4 2 1
Thick 0.5 0.5 0.375 0.75 1.5 1.5 0.75 2 1
Weight in lbs per sheet 985 615.6 628.425 1231 309 .24 206 .16 1483 2064 1641.6
lbs per sq. ft 2 .520 2 .520 15.39 32.19 64.38 64.38 32.19 86 41.04

Aluminium Bronze AB1 CA103 Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

Aluminium Bronze AB1 CA103 Round Bars Size

Size Table in MM Chucked true to Outside Dia in MM Chucked true to Inside Dia in MM and Inch
Outside Dia,
Millimeter		 Inside Dia,
Millimeter		 Maximum Outside Dia,
Millimeter		 Minimum. Inside Dia,
Millimeter		 Maximum Outside Dia,
Inches.		 Minimum. Inside Dia,
Inches		 Maximum Outside Dia,
Millimeter		 Minimum. Inside Dia,
Millimeter		 Maximum Outside Dia,
Inches		 Minimum. Inside Dia,
Inches
32 20 31 21.9 1.220 0.862 30 21 1.185 0.827
32 16 31 18 1.220 0.709 30 17 1.181 0.669
36 25 35 26.9 1.378 1.059 34.1 26 1.343 1.024
36 20 35 22 1.378 0.866 34 21 1.339 0.827
36 16 35 18.1 1.378 0.713 33.9 17 1.335 0.669
40 28 39 29.9 1.535 1.177 38.1 29 1.500 1.142
40 25 39 27 1.535 1.063 38 26 1.496 1.024
40 20 39 22.1 1.535 0.870 37.9 21 1.492 0.827
45 32 44 33.9 1.732 1.335 43.1 33 1.697 1.299
45 28 44 30 1.732 1.181 43 29 1.693 1.142
45 20 44 22.2 1.732 0.874 42.8 21 1.685 0.827
50 36 49 38 1.929 1.496 48 37 1.890 1.457
50 32 49 34.1 1.929 1.343 47.9 33 1.886 1.299
50 25 49 27.2 1.929 1.071 47.8 26 1.882 1.024
56 40 55 42 2.165 1.654 54 41 2.126 1.614
56 36 55 38.1 2.165 1.500 53.9 37 2.122 1.457
56 28 55 30.3 2.165 1.193 53.7 29 2.114 1.142
63 50 62 51.9 2.441 2.043 61.1 51 2.406 2.008
63 45 62 47 2.441 1.850 61 46 2.402 1.811
63 40 62 42.2 2.441 1.661 60.8 41 2.394 1.614
63 36 62 38.3 2.441 1.508 60.7 37 2.390 1.457
63 32 62 34.4 2.441 1.354 60.6 33 2.386 1.299
71 56 69.9 58 2.752 2.283 68.9 57 2.713 2.244
71 45 69.9 47.3 2.752 1.862 68.6 46 2.701 1.811
71 40 69.9 42.4 2.752 1.669 68.5 41 2.697 1.614
71 36 69.9 38.5 2.752 1.516 68.4 37 2.693 1.457
75 60 73.8 62 2.906 2.441 72.8 61 2.866 2.402
75 50 73.8 52.2 2.906 2.055 72.6 51 2.858 2.008
75 40 73.8 42.5 2.906 1.673 72.3 41 2.846 1.614
80 63 78.8 65 3.102 2.559 77.8 64 3.063 2.520
80 50 78.8 52.4 3.102 2.053 77.4 51 3.047 2.008
80 45 78.8 47.5 3.102 1.870 77.3 46 3.043 1.811
80 40 78.8 42.6 3.102 1.677 77.2 41 3.039 1.614
85 67 83.7 69.1 3.295 2.720 82.6 68 3.252 2.677
85 55 83.7 57.4 3.295 2.260 82.3 56.0 3.240 2.205
85 45 83.7 47.6 3.295 1.874 82.1 46.0 3.232 1.811
90 71 88.6 73.1 3.488 2.878 87.6 72.1 3.449 2.839
90 63 88.6 65.3 3.488 2.571 87.3 64.0 3.437 2.520
90 56 88.6 58.5 3.488 2.303 87.1 57.0 3.429 2.244
90 50 88.6 52.6 3.488 2.071 87.0 51.0 3.425 2.008
95 75 93.5 77.3 3.681 3.041 92.4 76.2 3.641 2.997
95 67 93.5 69.3 3.681 2.728 92.2 68.0 3.630 2.677
95 50 93.5 52.7 3.681 2.075 91.8 51.0 3.614 2.008
100 80 98.5 82.3 3.878 3.240 97.4 81.2 3.835 3.197
100 71 98.5 73.4 3.878 2.890 97.2 72.1 3.827 2.839
100 63 98.5 65.5 3.878 2.579 97.0 64.0 3.819 2.520
100 56 98.5 58.7 3.878 2.311 96.8 57.0 3.811 2.244
106 80 104.4 82.5 4.110 3.248 103.1 81.2 4.059 3.197
106 71 104.4 73.5 4.110 2.894 103.0 72.1 4.055 2.839
106 63 104.4 65.7 4.110 2.587 102.7 64.0 4.043 2.520
106 56 104.4 58.9 4.110 2.319 102.5 57.0 4.035 2.244
112 90 110.3 92.5 4.343 3.642 109.2 91.4 4.299 3.598
112 80 110.3 82.6 4.343 3.252 108.9 81.2 4.287 3.197
112 71 110.3 73.7 4.343 2.902 108.7 72.1 4.280 2.839
112 63 110.3 65.8 4.343 2.591 108.5 64.0 4.272 2.520
118 90 116.2 92.7 4.575 3.650 114.9 91.4 4.524 3.598
118 80 116.2 82.8 4.575 3.260 114.6 81.2 4.512 3.197
118 71 116.2 73.8 4.575 2.906 114.5 72.1 4.508 2.839
118 63 116.2 66.0 4.575 2.598 114.2 64.0 4.496 2.520
125 100 123.1 102.7 4.846 4.043 121.9 101.5 4.799 3.996
125 90 123.1 92.8 4.846 3.654 121.7 91.4 4.791 3.598
125 80 123.1 82.9 4.846 3.264 121.4 81.2 4.780 3.197
125 71 123.1 74.0 4.846 2.913 121.3 72.1 4.772 2.839
132 106 130.0 108.8 5.118 4.283 128.8 107.6 5.071 4.236
132 90 130.0 93.0 5.118 3.661 128.4 91.4 5.055 3.598
132 80 130.0 83.1 5.118 3.272 128.1 81.2 5.043 3.197
132 71 130.0 74.2 5.118 2.921 121.2 72.1 5.035 2.839
140 112 137.9 115 5.429 4.528 136.6 113.7 5.378 4.476
140 100 137.9 103.1 5.429 4.059 136.3 101.5 5.366 3.996
140 90 137.9 93.2 5.429 3.669 136.1 91.4 5.358 3.598
140 80 137.9 83.3 5.429 3.280 135.8 81.2 5.346 3.197
