AMS 4880 Nickel Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of AMS 4880 Nickel Aluminum Bronze Tubes, AMS 4880 Nickel Aluminum Bronze Plates, AMS 4880 Nickel Aluminum Bronze Bars, AMS 4880 Nickel Aluminum Bronze Sheets, AMS 4880 Nickel Aluminum Bronze Pipes, AMS 4880 Nickel Aluminum Bronze Coils, AMS 4880 Round Bars Supplier, AMS 4880 Pipe Fittings, Copper Alloy AMS 4880 Supplier in Mumbai, India.

Raninox Steel is a trusted manufacturer and supplier of premium-quality AMS 4880 Nickel Aluminum Bronze products. With a strong commitment to quality, precision, and customer satisfaction, we deliver a wide range of industrial materials including pipes, tubes, sheets, plates, coils, round bars, and pipe fittings.

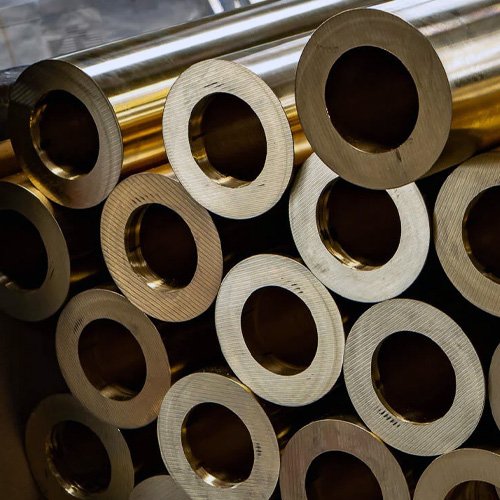

Nickel Aluminum Bronze AMS 4880 Pipes & Tubes are known for their excellent resistance to seawater corrosion and biofouling. These products are ideal for marine, offshore, and desalination applications. AMS 4880 Nickel Aluminum Bronze is a high-performance alloy known for its exceptional corrosion resistance, especially in marine environments.

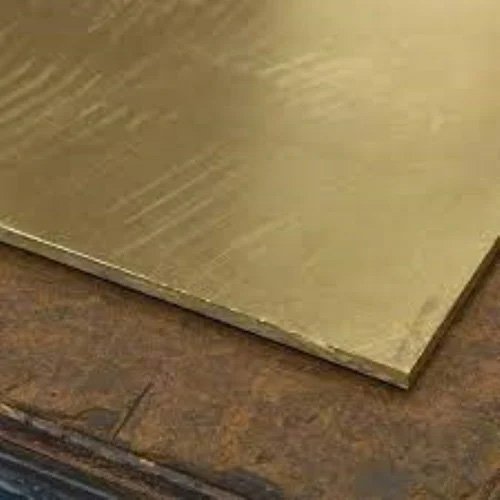

Our AMS 4880 Nickel Aluminum Bronze (NAB) Sheets & Plates , especially is widely recognized for its exceptional performance in marine environments. Its resistance to corrosion, biofouling, and cavitation makes it the preferred choice for shipbuilding and offshore industries. One of the key advantages of NAB 4880 Coils is its ability to withstand harsh seawater conditions without degradation. This ensures long-term reliability and reduced maintenance costs. Additionally, its high strength and durability make it suitable for critical components such as propellers, valves, and pumps.

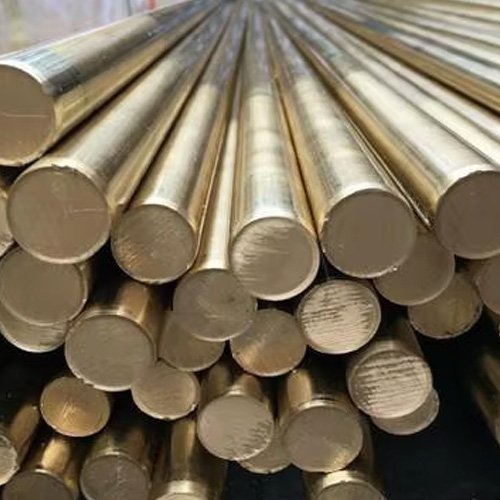

AMS 4880 Nickel Aluminum Bronze Round Bars are widely used in shafts, fasteners, machined parts, and heavy-duty industrial applications. These bars offer exceptional strength, wear resistance, and machining performance.

Our AMS 4880 Nickel Aluminum Bronze Pipe Fittings are designed to function reliably in fluid transmission and pressure systems. In corrosive environments like offshore and maritime facilities, they perform very well. Elbows, tees, reducers, and flanges are just a few of the many pipe fittings that we provide.

Specifications for AMS 4880 Nickel Aluminum Bronze

End Product Specification
Bar ASTM B150
Pipe ASTM B315
Rod ASTM B150
Sheets, Plates AMS 4880, ASTM B150
Tube ASTM B315

AMS 4880 Nickel Aluminum Bronze Equivalent Grades

Specifications Designation
ASTM ASME SB150, ASTM B-150, B-124, B-171, B-283
UNS AMS 4880
SAE SAE J463
Military/AMS QQ-C-465B
AMS AMS 4880
Military Specification MIL-B-16033 Class 4
CDA AMS 4880

AMS 4880 Nickel Aluminum Bronze Chemical Composition

Propertion Al Cu Fe Mn Ni Sn Zn
Min/Max 9.7-10.9 78.0 min 2.0-3.5 1.5 4.5-5.5 .20 .30
Nominals 10.3 - 2.7 - 5.0 - -

AMS 4880 Nickel Aluminum Bronze Temper

Product Type Temper Type
HR50 extruded / cold drawn / heat treated (3/4" diameter inclusive)
TQ50 hot forged / heat treated (3 1/8" - 8" diameter inclusive)

AMS 4880 Nickel Aluminum Bronze Mechanical Properties

Separately Cast Coupons English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings 1.0” and Under English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings Over 1.0” English Metric
Tensile Strength, min. 95.0 ksi 655 MPa
Yield Strength@ 0.2% Offset, min. 50.0 ksi 345 MPa
Elongation in 4D 8% 8%

AMS 4880 Nickel Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 90 10-6 per oF (68-572 F) 16.2 · 10-6 per oC (20-300 C)
Density 0.272 lb/in3 at 68 F 7.53 gm/cm3 @ 20 C
Electrical Conductivity 8.5 %IACS @ 68 F 0.049 MegaSiemens/cm @ 20 C
Electrical Resistivity 122.8 ohms-cmil/ft @ 68 F 20.41 microhm-cm @ 20 C
Magnetic Permeability (As Cast) 1.32 1.32
Magnetic Permeability (TQ50 temper) 1.2 1.2
Melting Point - Liquidus 1930 F 1054 C
Melting Point - Solidus 1900 F 1038 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Poisson's Ratio 0.32 0.32
Specific Gravity 7.53 7.53
Specific Heat Capacity 0.1 Btu/lb/oF at 68 F 419.0 J/kg · oK at 293 K
Thermal Conductivity 24.2 Btu · ft/(hr · ft2 · oF)at 68F 41.9 W/m · oK at 20 C

AMS 4880 Sheets & Plates, Nickel Aluminum Bronze Fittings, Marine Grade Bronze Supplier, AMS 4880 Material Properties, Nickel Aluminum Bronze Exporter, AMS 4880 Nickel Aluminum Bronze, Nickel Aluminum Bronze Manufacturer, AMS 4880 Supplier, Nickel Aluminum Bronze Pipes, AMS 4880 Round Bars India in Mumbai, India.

AMS 4880 Nickel Aluminum Bronze Pipes & Tubes

AMS 4880 Nickel Aluminum Bronze Sheets, Plates & Coils

AMS 4880 Nickel Aluminum Bronze Round Bars

AMS 4880 Nickel Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

AMS 4880 Nickel Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

AMS 4880 Nickel Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

AMS 4880 Nickel Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75
