C92700 Tin Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C92700 Tin Bronze Tubes, C92700 Tin Bronze Sheets & Plates, C92700 Tin Bronze Bars, CDA C92700 Tin Bronze Sheets, C92700 Tin Bronze, C92700 Pipes and Tubes, C92700 Sheets Supplier, C92700 Plates Manufacturer, Bronze Bearing Material, Marine Bronze Alloy, ASTM B505 Bronze, ASTM B271 Bronze, Bronze Bush Material, Industrial Bronze Components, Copper Tin Alloy Supplier, Continuous Cast Bronze Bars, C92700 Round Bars Exporter & Supplier in Mumbai, India.

Raninox Steel is leading supplier and exporter of C92700 Tin Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C92700 Tin Bronze (also known as High-Lead Tin Bronze Bearing Alloy) is a premium copper-based alloy engineered for superior anti-friction performance, excellent wear resistance, and reliable service under moderate loads and speeds. We supply C92700 Tin Bronze in multiple mill forms including sheets, plates, coils, pipes, tubes, round bars, and rods with precise dimensional tolerances and certified chemical composition.

C92700 (SAE 660 / Bearing Bronze) pipes and tubes are high-performance copper-tin-lead alloy products engineered for superior wear resistance, low friction, and excellent machinability. Commonly used in heavy-duty mechanical and industrial applications, this alloy is ideal for bushings, bearings, sleeves, hydraulic components, and precision equipment parts where durability and long service life are essential.

Our C92700 sheets, plates, and coils are manufactured with strict quality controls, ensuring consistent mechanical properties and dimensional accuracy for industrial machining and fabrication. C92700 Tin Bronze Plates is a high-lead, high-tin bearing bronze alloy engineered for superior anti-friction performance, wear resistance, and excellent machinability. It is widely used in heavy-duty applications where reliable load carrying capacity and long service life are essential.

C92700 Tin Bronze Round Bars & Rods also known as Bearing Bronze Rod or SAE 660 Bronze Bars are high-performance copper-tin-lead alloys designed for excellent wear resistance, load-bearing capacity, and machinability. These bronze bars are widely used in industrial machinery, automotive components, marine equipment, and heavy engineering applications where durability and low friction performance are critical.

Specifications for C92700 Tin Bronze

End Product Specification
Centrifugal AMS 4845, ASTM B271, SAE J462, J461
Continuous ASTM B505, SAE J461, J462
Ingot ASTM B30, B30
Sand SAE J462, J461

C92700 Tin Bronze Equivalent Grades

CDA ASTM SAE AMS Federal Military Other
C92700 B505
B505M
B22
B22M
B143-1A		 62
J461
J462		 4845 QQ-C-390, D6
QQ-B-1005, Comp 16		 MIL-B-11553, Comp 16 Gun Metal

C92700 Tin Bronze Chemical Composition

  Al Sb Cu Fe Pb Ni P Si S Sn Zn
Min/Max 0.005 0.25 86.0 - 89.0 0.2 1.0 - 2.5 1 0.25 0.005 0.05 9.0 - 11.0 0.7
Nominals - - 87.5000 - 1.8000 - - - - 10.0000 -

C92700 Tin Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
As Continous Cast
M07       68 38 20 - - - - - - - - - - - -
M07   0 SMIN 20 262 138 - - 8 - - - - - - - - - 0
As Sand Cast
M01       68 42 21 - - - - - - - - - - - - 7
M01   0 TYP 20 290 145 - - 20 - - 78 - - 77 - - - 9

C92700 Tin Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.0 · 10-6 per oF (68-572 F) 19.8 · 10-6 per oC (20-200 C)
Density 0.315 lb/in3 at 68 F 8.72 gm/cm3 @ 20 C
Electrical Conductivity 11.0 %IACS @ 68 F 0.064 MegaSiemens/cm @ 20 C
Electrical Resistivity 94.0 ohms-cmil/ft @ 68 F 15.63 microhm-cm @ 20 C
Magnetic Permeability 1 1
Melting Point - Liquidus 1830 F 999 C
Melting Point - Solidus 1570 F 854 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Specific Gravity 8.72 8.72
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 43.2 Btu · ft/(hr · ft2 · oF) at 68F 74.8 W/m · oK at 20 C

C92700 Tin Bronze Supplier, C92700 Tin Bronze Manufacturer, C92700 Tin Bronze Exporter, C92700 Bronze Pipes, C92700 Bronze Tubes, C92700 Bronze Sheets, C92700 Tin Bronze, Gun Metal Bronze Supplier, C92700 Bronze Pipes, C92700 Bronze Tubes, C92700 Bronze Sheets, C92700 Bronze Plates, C92700 Bronze Round Bars, C92700 Bronze Coils, Tin Bronze Manufacturer, C92700 Alloy Material, C92700 Bronze Rod in Mumbai, India.

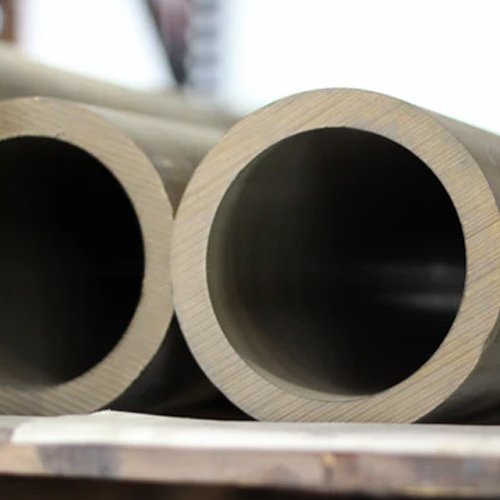

C92700 Tin Bronze Pipes & Tubes

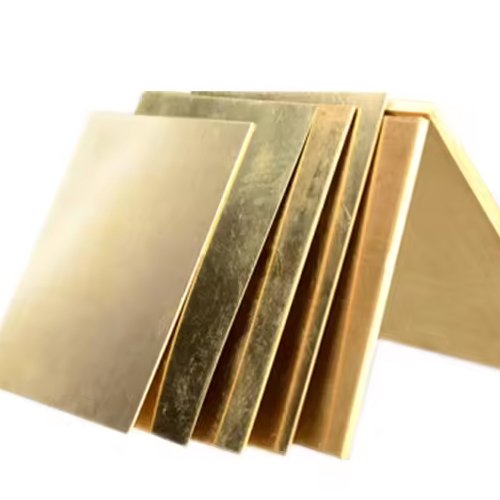

C92700 Tin Bronze Sheets, Plates & Coils

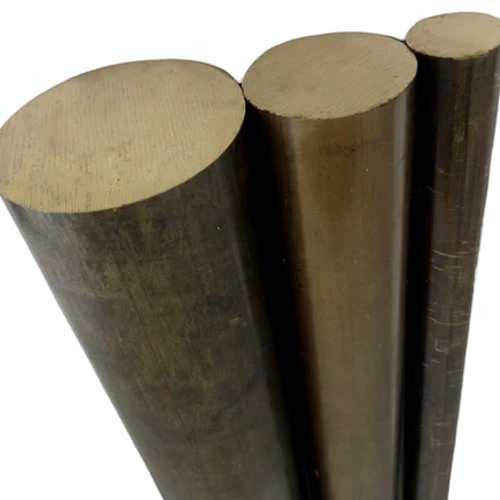

C92700 Tin Bronze Round Bars

C92700 Tin Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C92700 Tin Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C92700 Tin Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
