C83600 Red Brass Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C83600 Red Brass Tubes, C83600 Red Brass, C83600 brass supplier, ASTM B62 red brass Pipes, 85-5-5-5 red brass Sheets, C83600 red brass round bars, UNS C83600 rods, leaded red brass alloy Plates, ASTM B62 brass Fittings, marine brass alloy Coils supplier, plumbing brass material, red brass Round Bars stockist India, Yellow Brass C83600 Rods, C83600 Red Brass Material in Mumbai, India.

Raninox Steel is leading supplier and exporter of C83600 Red Brass Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C83600 Red Brass (also called 85-5-5-5 Leaded Red Brass) is a copper-based alloy containing copper, tin, zinc, and lead. It is widely used in plumbing, marine, architectural, and industrial components because of its excellent corrosion resistance, pressure tightness, machinability, and casting properties.

C83600 Red Brass Pipes & Tubes (also known as 85-5-5-5 Leaded Red Brass) are premium copper-based alloy products widely used in plumbing, marine, architectural, and industrial fluid-handling applications. The alloy combines excellent corrosion resistance, machinability, pressure tightness, and durability, making it one of the most trusted materials for water service and low-pressure steam systems.

We supply C83600 Red Brass Sheets, Plates, and Coils in various thicknesses, widths, and custom sizes, manufactured as per international quality standards and suitable for fabrication, machining, and forming processes. It offers an excellent balance of corrosion resistance, pressure tightness, machinability, and strength, making it one of the most reliable alloys for pressure-bearing and fluid-handling components.

With excellent corrosion resistance, superior machinability, and high pressure tightness, C83600 round bars and rods are the preferred material for plumbing, marine, valve, and pump applications. We supply C83600 Red Brass Round Bars & Rods in multiple diameters, cut lengths, and custom machining tolerances suitable for OEM and industrial fabrication.

Specifications for C83600 Red Brass

End Product Specification
Centrifugal ASTM B271
Continuous ASTM B505
Fittings ASME B16.24, B16.18, B16.23, B16.26, B16.32, B16.15, ASTM B584
Ingot ASTM B30
Sand ASTM B584, B763
Unions FEDERAL WW-U-516

C83600 Red Brass Equivalent Grades

CDA ASTM SAE AMS Federal Military Other
C83600 B505
B505M
B271
B271M
B62		 J461
J462		 4855 WW-P-460
WW-U-516		 MIL-C-11866
MIL-V-18436		 Ounce Metal

C83600 Red Brass Chemical Composition

  Al Sb Cu Fe Pb Ni P Si S Sn Zn
Min/Max 0.005 0.25 84.0 / 86.0 0.4 4.0 / 6.0 1 0.02 0.005 0.08 4.0 / 6.0 4.0 / 6.0
Nominals - - 85.0 - 5.0 - - - - 5.0 5.0

C83600 Red Brass Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
As Centrifugal Cast
M02       68 29 13 - - - - - - - - - - - -
M02   0 SMIN 20 200 90 - - 18 - - - - - - - - - 0
M07       68 30 15 - - - - - - - - - - - -
M07   0 SMIN 20 207 103 - - 16 - - - - - - - - - 0
As Sand Cast
M01       68 34 15 - - - - - - - - - - - - 6
M01   0 TYP 20 234 103 - - 26 - - - - - 55 - - - 8
M01       68 29 13 - - - - - - - - - - - -
M01   0 SMIN 20 200 90 - - 18 - - - - - - - - - 0

C83600 Red Brass Physical Properties

Product Property US Customary
Coefficient of Thermal Expansion 10.0 per oF (68-572 F)
Density 0.318 lb/in3 at 68 F
Electrical Conductivity 15.0 %IACS @ 68 F
Electrical Resistivity 69.1 ohms-cmil/ft @ 68 F
Magnetic Permeability 1
Melting Point - Liquidus 1850 F
Melting Point - Solidus 1570 F
Modulas of Elasticity in Tension 13500 ksi
Specific Gravity 8.83
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F
Thermal Conductivity 41.6 Btu · ft/(hr · ft2 · oF) at 68F

C83600 Red Brass Supplier, C83600 Red Brass Manufacturer, C83600 Red Brass Exporter, C27400 Bronze Pipes, C27400 Bronze Tubes, C27400 Bronze Sheets, C27400 Brass Pipes, C27400 Brass Plates, brass engineering rods, C27400 Brass Sheets, Brass Round Bar Supplier, C83600 Red Brass pipes, C27400 Brass Coils, brass heat exchanger tubes, ASTM B16 Brass Rod, Brass Bars Exporter, 63/37 Brass Rod manufacturer, C27400 Brass Sheets, C27400 Brass Coils, brass round bar supplier in Mumbai, India.

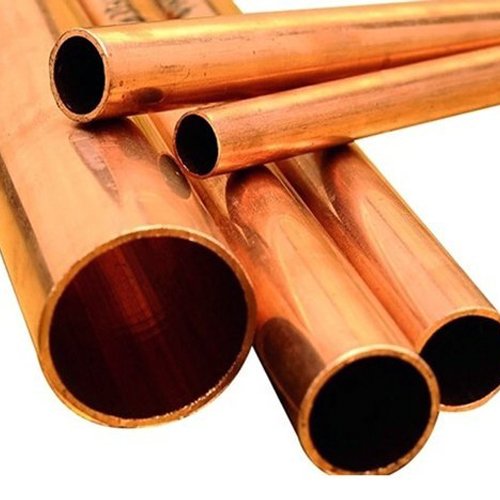

C83600 Red Brass Pipes & Tubes

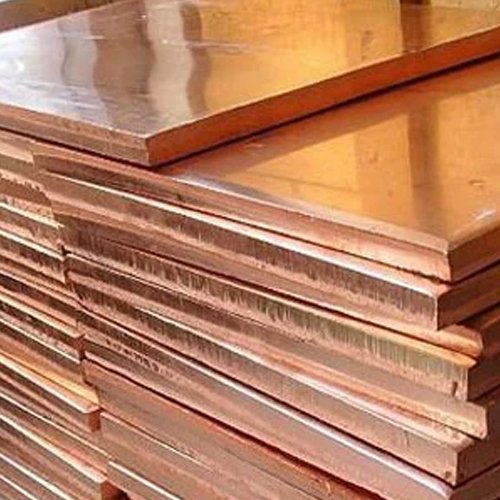

C83600 Red Brass Sheets, Plates & Coils

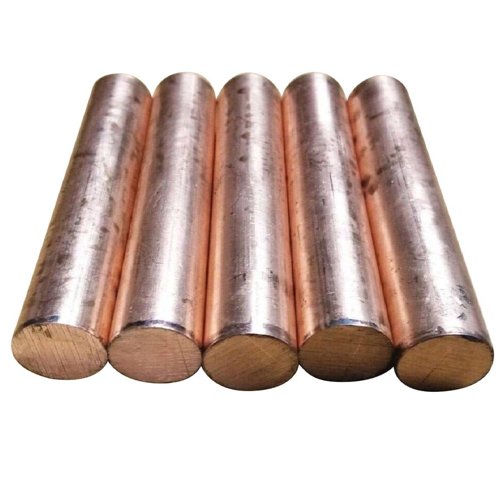

C83600 Red Brass Round Bars

C83600 Red Brass Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C83600 Red Brass Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C83600 Red Brass Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
