C27000 Yellow Brass Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C27000 Yellow Brass Tubes, Yellow Brass Alloy Manufacturer, C27000 Yellow Brass, CuZn35 Brass, Yellow Brass Sheets Supplier, Brass Plates Manufacturer, Brass Coils Exporter, Brass Pipes Tubes, Brass Round Bars Rods, ASTM B36 Brass Sheet, CW508L Brass, IS 319 Brass, Decorative Brass Alloy, Deep Drawing Brass Material in Mumbai, India.

Raninox Steel is leading supplier and exporter of C27000 Yellow Brass Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C27000 Yellow Brass (CuZn35) is a versatile copper-zinc alloy containing approximately 65% copper and 35% zinc. Known for its bright golden appearance, excellent cold-working ability, and good corrosion resistance, this alloy is widely used across electrical, decorative, architectural, marine, and general engineering industries.

C27000 Yellow Brass Pipes & Tubes are high-quality copper-zinc alloy products widely used across plumbing, architectural, industrial, and decorative applications. Known for their excellent corrosion resistance, good strength, and attractive golden appearance, C27000 brass (also called 65/35 brass) offers an ideal balance of performance and workability.

Our C27000 Yellow Brass Sheets & Plates are precision-rolled to tight tolerances, offering consistent thickness, superior surface finish, and excellent formability for deep drawing, stamping, bending, spinning, and engraving applications. With excellent cold-working properties, attractive golden appearance, and reliable corrosion resistance, it is one of the most versatile brass grades available in sheets, plates, and coils.

We supply C27000 Yellow Brass Round Bars & Rods in various diameters, tempers, and lengths — suitable for machining, forming, forging, and fabrication industries. It offers a balanced combination of strength, ductility, corrosion resistance, and machinability, making it ideal for decorative, architectural, electrical, and precision engineering applications.

Specifications for C27000 Yellow Brass

End Product Specification
Bolt ASTM F468
Nuts ASTM F467
Rod SAE J463, J461
Screws ASTM F468
Studs ASTM F468
Tube ASTM B135
Tube, Welded ASTM B587
Wire AMS 4712, 4713, ASTM B134, SAE J463, J461
Wire, Tinned AMS 4710

C27000 Yellow Brass Equivalent Grades

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Yellow Brass C27000 CZ107 CW507L H3250(92) C2700 BE 2.0335 CuZn36 IS 2704 CuZn35

C27000 Yellow Brass Chemical Composition

  Cu Fe Pb Zn
Min/Max 63.0 - 68.5 0.07 0.09 Rem
Nominals 65.0000 - - 35.0000

C27000 Yellow Brass Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
FLAT PRODUCTS
H02 0.04     68 61 50 - - - - - - - - - - 40 -
H02 1 0 TYP 20 421 345 - - 23 70 - - 65 - - - 276 - 0
OS015 0.04     68 53 22 - - - - - - - - - - - -
OS015 1 0 TYP 20 365 152 - - 54 - - 78 43 - - - - - 0
H06 0.04     68 85 62 - - - - - - - - - - 45 -
H06 1 0 TYP 20 586 427 - - 5 87 - - 74 - - - 310 - 0
OS035 0.04     68 49 17 - - - - - - - - - - 34 -
OS035 1 0 TYP 20 338 117 - - 57 - - 68 31 - - - 234 - 0
H04 0.04     68 74 60 - - - - - - - - - - 43 14
H04 1 0 TYP 20 510 414 - - 8 80 - - 70 - - - 296 97 0
H08 0.04     68 91 62 - - - - - - - - - - 47 20
H08 1 0 TYP 20 627 427 - - 3 90 - - 76 - - - 324 138 0
OS070 0.04     68 46 14 - - - - - - - - - - 32 12
OS070 1 0 TYP 20 317 97 - - 65 - - 58 15 - - - 221 83 0
OS050 0.04     68 47 15 - - - - - - - - - - - -
OS050 1 0 TYP 20 324 103 - - 62 - - 64 26 - - - - - 0
H01 0.04     68 54 40 - - - - - - - - - - 36 -
H01 1 0 TYP 20 372 276 - - 43 55 - - 54 - - - 248 - 0
H00 0.04     68 50 35 - - - - - - - - - - - -
H00 1 0 TYP 20 345 241 - - 50 50 - - 50 - - - - - 0
OS025 0.04     68 51 19 - - - - - - - - - - - -
OS025 1 0 TYP 20 352 131 - - 55 - - 72 36 - - - - - 0
ROD
H00 1     68 55 40 - - - - - - - - - - 36 -
H00 25.4 6 TYP 20 379 276 - - 48 55 - - - - - - 248 - 0
OS050 1     68 48 16 - - - - - - - - - - 34 -
OS050 25.4 0 TYP 20 331 110 - - 65 - - 65 - - - - 234 - 0
WIRE
H01 0.08     68 70 - - - - - - - - - - - 42 22
H01 2 0 TYP 20 483 - - - 20 - - - - - - - 290 152 0
H00 0.08     68 58 - - - - - - - - - - - 38 -
H00 2 0 TYP 20 400 - - - 35 - - - - - - - 262 - 0
H04 0.08     68 110 - - - - - - - - - - - 55 -
H04 2 0 TYP 20 758 - - - 8 - - - - - - - 379 - 0
H02 0.08     68 88 - - - - - - - - - - - - -
H02 2 0 TYP 20 607 - - - 15 - - - - - - - - - 0
H06 0.08     68 120 - - - - - - - - - - - 60 -
H06 2 0 TYP 20 827 - - - 4 - - - - - - - 414 - 0
H08 0.08     68 128 - - - - - - - - - - - 60 -
H08 2 0 TYP 20 883 - - - 3 - - - - - - - 414 - 0
OS035 0.08     68 50 - - - - - - - - - - - 34 -
OS035 2 0 TYP 20 345 - - - 60 - - - - - - - 234 - 0

C27000 Yellow Brass Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.3 · 10-6 per oF (68-572 F) 20.3 · 10-6 per oC (20-300 C)
Density 0.306 lb/in3 @ 68 F 8.47 gm/cm3 @ 20 C
Electrical Conductivity 27 %IACS @ 68 F 0.158 MegaSiemens/cm @ 20 C
Electrical Resistivity 38.4 ohms-cmil/ft @ 68 F 6.38 microhm-cm @ 20 C
Melting Point Liquid US 1710 F 932 C
Melting Point Solid US 1660 F 904 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulas of Rigidity 5600 ksi 38610 Mpa
Specific Gravity 8.47 8.47
Specific Heat Capacity 0.09 Btu/lb/oF @ 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 67.0 Btu · ft/(hr · ft2 · oF) @ 68 F 116.0 W/m · oK at 20 C

C27000 Yellow Brass Supplier, C27000 Yellow Brass Manufacturer, C27000 Yellow Brass Exporter, C27000 Bronze Pipes, C27000 Bronze Tubes, C27000 Bronze Sheets, C27000 Brass Pipes, C27000 Brass Plates, brass engineering rods, brass round bar India, brass bright bars, Cartridge Brass 70/30, C27000 yellow brass rods, C27000 brass bars, yellow brass rods manufacturer, C27000 Brass Sheets, C27000 Brass Coils, brass round bar supplier in Mumbai, India.

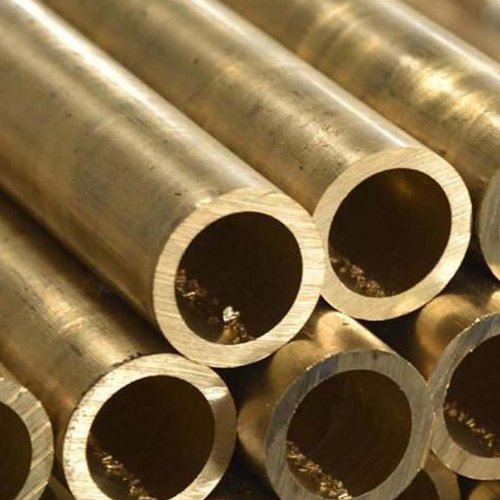

C27000 Yellow Brass Pipes & Tubes

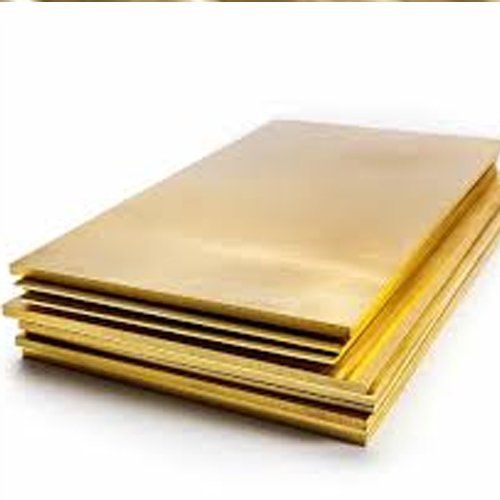

C27000 Yellow Brass Sheets, Plates & Coils

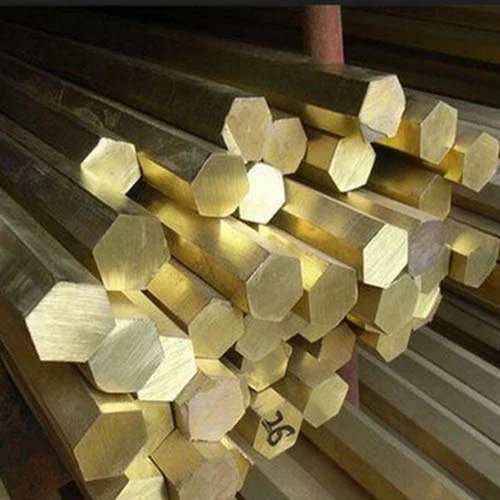

C27000 Yellow Brass Round Bars

C27000 Yellow Brass Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C27000 Yellow Brass Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C27000 Yellow Brass Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154

Types Of C27000 Yellow Brass

C27000 Yellow Brass Plates Manufacturer C27000 Yellow Brass Slit Coils Supplier in India
CDA C27000 Yellow Brass Pipes at Best Price in India C27000 Yellow Brass Hex Bars Stockists
CDA C27000 Yellow Brass Strip Dealer in India CDA C27000 Yellow Brass Sheets Plates Wholesaler
C27000 Yellow Brass Round Rod Dealer CDA C27000 Yellow Brass ERW Pipes Manufacturer
C27000 Yellow Brass Rectangular Bars C27000 Yellow Brass Square Bars Supplier
CDA C27000 Yellow Brass Coils Supplier in Mumbai CDA C27000 Yellow Brass Condenser Tube Supplier
CDA C27000 Yellow Brass Sheets Stockist C27000 Yellow Brass Pipes Supplier
C27000 Yellow Brass Forgins CDA C27000 Yellow Brass Bolts Supplier
CDA C27000 Yellow Brass Coils CDA C27000 Yellow Brass Perforated Sheets Cut to Size
CDA C27000 Yellow Brass Nut Sheet Supplier in India C27000 Yellow Brass Round Bars Supplier

C27000 Yellow Brass Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination

Suppling & Exporting of C27000 Yellow Brass in Countries like

Raninox Steels have exported C27000 Yellow Brass Products to over 60 countries including Afghanistan, Albania, Andorra, Angloa, Austria, Australia, Bahrain, Bangladesh, Bhutan, Brazil, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Canada, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Madagascar, Mexico, Moldova, Monaco, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, New Zealand, North Korea, Netherlands, Norway, Nigeria, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, Singapore, South Korea, South Africa, Sri Lanka, Sudan, Syria, Taiwan, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Venezuela, Vietnam, Yemen, etc.

Suppling & Exporting of C27000 Yellow Brass in Cities like

Raninox Steels have exported C27000 Yellow Brass Products Mumbai, Los Angeles, Muscat, Doha, Singapore, Ahmedabad, Kolkata, Cairo, Jeddah, Bangkok, Tehran, London, Dammam, Milan, Surat, Courbevoie, Madrid, Nagpur, Nashik, Montreal, Colombo, Al Khobar, Geoje-si, Chennai, Howrah, Hong Kong, Chandigarh, Kuala Lumpur, Manama, New York, Ulsan, Vung Tau, Visakhapatnam, Dubai, Bogota, Rio de Janeiro, Hyderabad, Thane, Calgary, Granada, Caracas, Baroda, Busan, Jaipur, Gurgaon, Aberdeen, Jakarta, Kuwait City, New Delhi, Ho Chi Minh City, Ludhiana, Bengaluru, Ankara, Coimbatore, Petaling Jaya, Navi Mumbai, Noida, La Victoria, Dallas, Lahore, Rajkot, Jamshedpur, Atyrau, Gimhae-si, Pune, Abu Dhabi, Moscow, Riyadh, Thiruvananthapuram, Sharjah, Haryana, Hanoi, Bhopal, Ahvaz, Ranchi, Sydney, Faridabad, Seoul, Port-of-Spain, Al Jubail, Indore, Houston, Istanbul, Perth, Brisbane, Algiers, Karachi, Secunderabad, Vadodara, Melbourne, Toronto, Edmonton, Lagos, Pimpri-Chinchwad, Santiago, Chiyoda, Ernakulam, Kanpur, Mexico City.
