C27200 Yellow Brass Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C27200 Yellow Brass Tubes, c27200 Yellow Brass Alloy Manufacturer, C27200 Yellow Brass Pipes, C27200 Brass Plates, C27200 Brass Rods, C27200 Yellow Brass, seamless brass tubes supplier, C27200 Yellow Brass Round Bars, C27200 Brass Manufacturer, Yellow Brass 63/37 Bars, Yellow Brass Sheets, 65/35 brass tubing, ASTM B135 brass tube, C27200 brass tubes, decorative brass tubing, c27200 Brass Coils Exporter, c27200 Brass Tubes, Brass Round Bars Rods, ASTM B36 c27200 Brass Sheet, IS 319 c27200 Brass Rods, Yellow Brass 63/37 Rods, Deep Drawing c27200 Brass Material in Mumbai, India.

Raninox Steel is leading supplier and exporter of C27200 Yellow Brass Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C27200 Yellow Brass is a high-quality copper-zinc alloy containing approximately 63% copper and 37% zinc. It offers an excellent balance of strength, corrosion resistance, ductility, and formability, making it one of the most widely used brass grades in engineering, construction, electrical, marine, and decorative applications.

C27200 Yellow Brass Pipes & Tubes are high-quality copper-zinc alloy products widely used across plumbing, architectural, industrial, and decorative applications. Buy high-quality C27200 Yellow Brass pipes and tubes with excellent formability, corrosion resistance and smooth finish. Available in seamless, round, square and custom sizes with fast delivery.

C27200 Yellow Brass Sheets, Plates & Coils(also known as 63/37 brass) is a high-quality copper-zinc alloy widely used in architectural, electrical, and industrial applications. Known for its excellent cold working properties, bright golden appearance, and superior corrosion resistance, C27200 brass sheets, plates, and coils are ideal for both decorative and functional uses.

C27200 Yellow Brass Round Bars & Rods are high-quality copper-zinc alloy products widely used in architectural, industrial, and decorative applications. Known for their bright golden appearance, excellent corrosion resistance, and good mechanical strength, C27200 brass bars and rods are a versatile solution for machining and fabrication needs.

Specifications for C27200 Yellow Brass

End Product Specification
Bolt ASTM F468
Nuts ASTM F467
Rod SAE J463, J461
Screws ASTM F468
Studs ASTM F468
Tube ASTM B135
Tube, Welded ASTM B587
Wire AMS 4712, 4713, ASTM B134, SAE J463, J461
Wire, Tinned AMS 4710

C27200 Yellow Brass Equivalent Grades

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Yellow Brass C27200 CZ108 CW507L H3100(92)C2720 2.0321
CuZn37
CuZn36		 1637-CuZn37 IS 4413 CuZn37

C27200 Yellow Brass Chemical Composition

  Cu Fe Pb Zn
Min/Max 62.0 - 65.0 .07 .07 Rem
Nominals 63.5 - - 36.5

C27200 Yellow Brass Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
Tube
H80 0.065 0 TYP 68 74 55 - - 10 - - 80 - - - - - - 0.0
  1.65     20 510 379 - - 10 - - 80 - - - - - - 0.0
OS025 0.065 0 TYP 68 56 23 - - 50 - - 82 - - - - - - 0.0
  1.65     20 386 159 - - 50 - - 82 - - - - - - 0.0

C27200 Yellow Brass Physical Properties

Product Property US Customary Metric
Melting Point - Liquidus 1680 F 916 C
Density 0.305 lb/in3 at 68 F 8.44 gm/cm3 @ 20 C
Specific Gravity 8.440 8.44
Electrical Conductivity 27.60 %IACS @ 68 F 0.161 MegaSiemens/cm @ 20 C
Thermal Conductivity 67 Btu · ft/(hr · ft2̴ · oF)at 68F 116.0 W/m · oK at 20 C
Coefficient of Thermal Expansion 11.40 · 10-6 per oF (68-572 F) 20.5 · 10-6 per oC (20-300 C)
Specific Heat Capacity 0.090 Btu/lb/oF at 68 F 377.1 J/kg · oK at 293 K
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulus of Rigidity 5600 ksi 38610 MPa

C27200 Yellow Brass Supplier, C27200 Yellow Brass Manufacturer, C27200 Yellow Brass Exporter, C27200 Bronze Pipes, C27200 Bronze Tubes, C27200 Bronze Sheets, C27200 Brass Pipes, C27200 Brass Plates, brass engineering rods, C27200 Brass Sheets, Brass Round Bar Supplier, C27200 yellow brass pipes, C27200 Brass Coils, brass heat exchanger tubes, ASTM B16 Brass Rod, Brass Bars Exporter, 63/37 Brass Rod manufacturer, C27200 Brass Sheets, C27200 Brass Coils, brass round bar supplier in Mumbai, India.

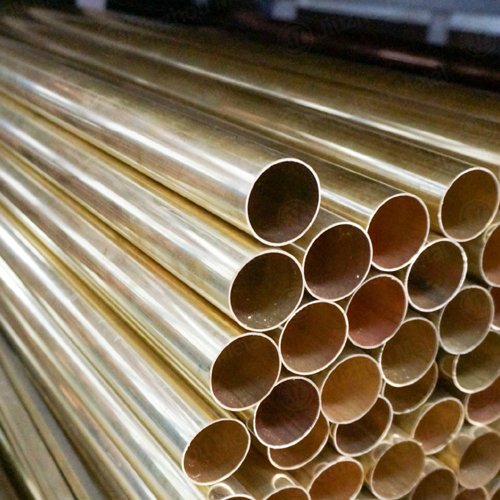

C27200 Yellow Brass Pipes & Tubes

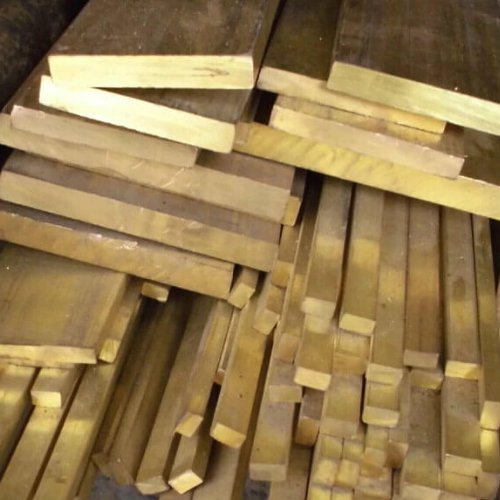

C27200 Yellow Brass Sheets, Plates & Coils

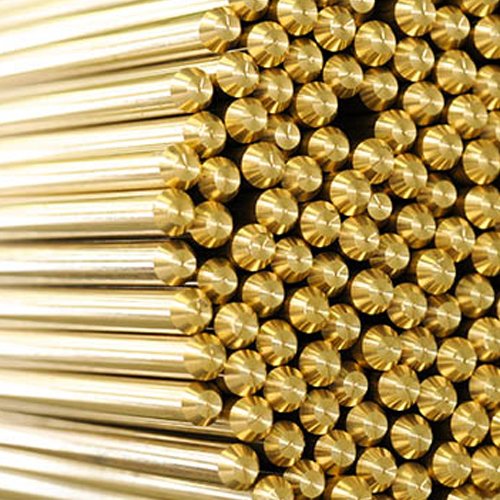

C27200 Yellow Brass Round Bars

C27200 Yellow Brass Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C27200 Yellow Brass Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C27200 Yellow Brass Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
