AMS 4590 Nickel Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of AMS 4590 Nickel Aluminum Bronze Tubes, AMS 4590 Nickel Aluminum Bronze Plates, AMS 4590 Nickel Aluminum Bronze Bars, AMS 4590 Nickel Aluminum Bronze Sheets, AMS 4590 Nickel Aluminum Bronze Pipes, AMS 4590 Nickel Aluminum Bronze Coils, AMS 4590 Round Bars Supplier, AMS 4590 Pipe Fittings, Copper Alloy AMS 4590 Supplier in Mumbai, India.

Raninox Steel is a trusted name in the global metal industry, specializing in the manufacturing and supply of high-quality AMS 4590 Nickel Aluminum Bronze products. With a strong commitment to precision, durability, and international standards, we provide a wide range of products including pipes, tubes, sheets, plates, coils, round bars, and pipe fittings.

Nickel Aluminum Bronze AMS 4590 Pipes & Tubes designed for demanding environments. These products are known for excellent corrosion resistance, high strength, and superior performance in seawater and industrial applications. They are widely used in marine equipment, condensers, pump components, heat exchangers, and heavy-duty fluid handling systems.

Our AMS 4590 Nickel Aluminum Bronze Sheets are manufactured with precision for applications requiring durability, corrosion resistance, and dependable fabrication performance. These sheets are widely used in marine components, industrial equipment, and structural applications. AMS 4590 Nickel Aluminum Bronze Plates with excellent mechanical properties and outstanding resistance to harsh environments. Our AMS 4590 Nickel Aluminum Bronze Coils are ideal for fabrication, forming, and industrial processing. They offer consistent quality, accurate dimensions, and excellent resistance to corrosion and wear.

AMS 4590 Nickel Aluminum Bronze Round Bars that are widely used in machined components, fasteners, shafts, and heavy-duty industrial applications. These bars offer excellent strength, wear resistance, and machining performance.

Our AMS 4590 Nickel Aluminum Bronze Pipe Fittings are manufactured for reliable performance in fluid transfer and pressure systems. They are especially suitable for corrosive environments, including marine and offshore installations.

Specifications for AMS 4590 Nickel Aluminum Bronze

End Product Specification
Bar ASTM B150
Pipe ASTM B315
Rod ASTM B150
Sheets, Plates AMS 4590, ASTM B150
Tube ASTM B315

AMS 4590 Nickel Aluminum Bronze Equivalent Grades

Specifications Designation
ASTM ASTM B505 / ASTM B271
UNS AMS 4590
SAE SAE J461 / SAE J462
Military/AMS QQ-C-390B
AMS AMS 4880
Military Specification MIL-B-16033 Class 4
CDA AMS 4590

AMS 4590 Nickel Aluminum Bronze Chemical Composition

Propertion Al Cr Co Cu Fe Pb Mn Ni Sn Zn
Min/Max 10.0 - 11.0 0.05 0.2 74.5 min 4.0 - 5.5 0.03 1.5 4.2 - 6.0 0.25 0.3
Nominals 10.5000 - - - 4.7000 - - 5.1000 - -

AMS 4590 Nickel Aluminum Bronze Temper

Product Type Temper Type
HR50 extruded / cold drawn / heat treated (3/4" diameter inclusive)
TQ50 hot forged / heat treated (3 1/8" - 8" diameter inclusive)

AMS 4590 Nickel Aluminum Bronze Mechanical Properties

Separately Cast Coupons English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings 1.0” and Under English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings Over 1.0” English Metric
Tensile Strength, min. 95.0 ksi 655 MPa
Yield Strength@ 0.2% Offset, min. 50.0 ksi 345 MPa
Elongation in 4D 8% 8%

AMS 4590 Nickel Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 90 10-6 per oF (68-572 F) 16.2 · 10-6 per oC (20-300 C)
Density 0.272 lb/in3 at 68 F 7.53 gm/cm3 @ 20 C
Electrical Conductivity 8.5 %IACS @ 68 F 0.049 MegaSiemens/cm @ 20 C
Electrical Resistivity 122.8 ohms-cmil/ft @ 68 F 20.41 microhm-cm @ 20 C
Magnetic Permeability (As Cast) 1.32 1.32
Magnetic Permeability (TQ50 temper) 1.2 1.2
Melting Point - Liquidus 1930 F 1054 C
Melting Point - Solidus 1900 F 1038 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Poisson's Ratio 0.32 0.32
Specific Gravity 7.53 7.53
Specific Heat Capacity 0.1 Btu/lb/oF at 68 F 419.0 J/kg · oK at 293 K
Thermal Conductivity 24.2 Btu · ft/(hr · ft2 · oF)at 68F 41.9 W/m · oK at 20 C

AMS 4590 Sheets & Plates, Nickel Aluminum Bronze Fittings, Marine Grade Bronze Supplier, AMS 4590 Material Properties, Nickel Aluminum Bronze Exporter, AMS 4590 Nickel Aluminum Bronze, Nickel Aluminum Bronze Manufacturer, AMS 4590 Supplier, Nickel Aluminum Bronze Pipes, AMS 4590 Round Bars India in Mumbai, India.

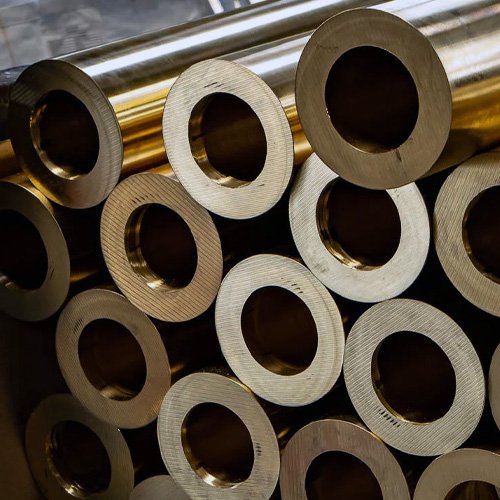

AMS 4590 Nickel Aluminum Bronze Pipes & Tubes

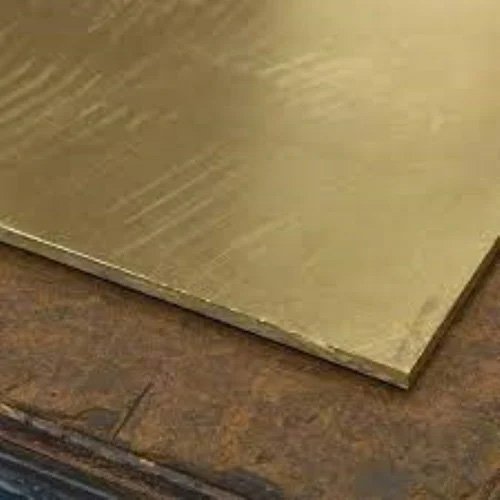

AMS 4590 Nickel Aluminum Bronze Sheets, Plates & Coils

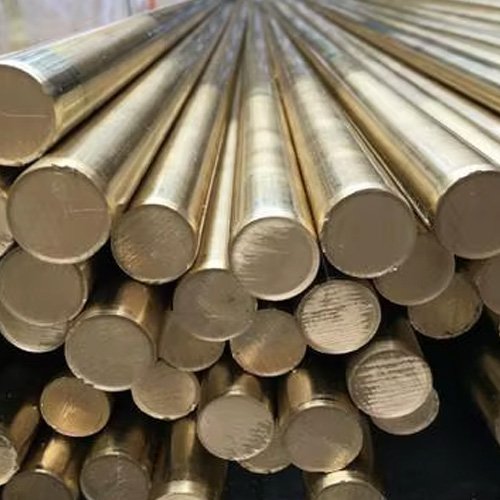

AMS 4590 Nickel Aluminum Bronze Round Bars

AMS 4590 Nickel Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

AMS 4590 Nickel Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

AMS 4590 Nickel Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

AMS 4590 Nickel Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of AMS 4590 Nickel Aluminum Bronze

AMS 4590 Nickel Aluminum Bronze Plates Manufacturer AMS 4590 Nickel Aluminum Bronze Slit Coils Supplier in India
AMS 4590 Nickel Aluminum Bronze Pipes at Best Price in India AMS 4590 Nickel Aluminum Bronze Hex Bars Stockists
AMS 4590 Nickel Aluminum Bronze Strip Dealer in India AMS 4590 Nickel Aluminum Bronze Sheets Plates Wholesaler
AMS 4590 Nickel Aluminum Bronze Round Rod Dealer AMS 4590 Nickel Aluminum Bronze ERW Pipes Manufacturer
AMS 4590 Nickel Aluminum Bronze Rectangular Bars AMS 4590 Nickel Aluminum Bronze Square Bars Supplier
AMS 4590 Nickel Aluminum Bronze Coils Supplier in Mumbai AMS 4590 Nickel Aluminum Bronze Condenser Tube Supplier
AMS 4590 Nickel Aluminum Bronze Sheets Stockist AMS 4590 Nickel Aluminum Bronze Pipes Supplier
AMS 4590 Forgins AMS 4590 Nickel Aluminum Bronze Bolts Supplier
AMS 4590 Nickel Aluminum Bronze Coils AMS 4590 Nickel Aluminum Bronze Perforated Sheets Cut to Size
AMS 4590 Nickel Aluminum Bronze Nut Sheet Supplier in India AMS 4590 Nickel Aluminum Bronze Round Bars Supplier
