C92200 Leaded Tin Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C92200 Leaded Tin Bronze Tubes, C92200 Leaded Tin Bronze Sheets & Plates, C92200 Leaded Tin Bronze Bars, CDA C92200 Leaded Tin Bronze Sheets, C92200 Leaded Tin Bronze, C92200 Leaded Pipes, C92200 Leaded Sheets Supplier, SAE 660 Tin Bronze Plates, ASTM B505 Bronze Bars, ASTM B271 Bronze, Bronze Bush Material, C92200 Leaded Tin Bronze Components, C92200 Leaded Tin Bronze Bars Exporter & Supplier in Mumbai, India.

Raninox Steel is a trusted manufacturer and supplier of high-quality C92200 Leaded Leaded Tin Bronze products, including pipes, tubes, sheets, plates, coils, round bars, and pipe fittings. With a strong commitment to precision engineering and international quality standards, we deliver reliable solutions for industrial applications worldwide.

C92200 Leaded Tin Bronze pipes and tubes are suitable for industrial and fluid-handling systems where corrosion resistance and pressure-tight performance are important. This alloy is commonly used in cooling equipment, heating equipment, steam equipment, valves, and fittings. C92200 is also used in service up to 550°F / 288°C in listed applications.

C92200 Leaded Tin Bronze sheets and plates are preferred for fabrication jobs that require a bronze alloy with good machinability, moderate strength, and dependable wear behavior. Typical product forms for this alloy include plate, flats, rectangular bar, and other semi-finished shapes. C92200 Leaded Tin Bronze coil stock is suitable where consistent bronze material feed is needed for fabrication and forming. The alloy’s balance of machinability and corrosion resistance makes it a practical choice for downstream manufacturing and industrial parts.

C92200 Leaded Tin Bronze round bars are widely used for bushings, bearings, gears, valve parts, piston rings, fasteners, and machined components. The alloy is recognized for good machinability, wear resistance, and corrosion resistance in many environments.

C92200 Leaded Tin Bronze pipe fittings are ideal for pressure-containing systems, plumbing, steam service, and industrial fluid transfer. The alloy is used for fittings, valve components, and other parts where pressure tightness and machinability are valuable.

Specifications for C92200 Leaded Tin Bronze

End Product Specification
Centrifugal ASTM B271, SAE J462, J461
Continuous ASTM B505, SAE J461, J462
Fittings ASME B16.24, SB61, ASTM B61, FEDERAL WW-P-460
Flanges ASME SB61, ASTM B61, FEDERAL WW-P-460
Ingot ASTM B30
Sand ASME SB61, SB584, ASTM B61, B584, SAE J461, J462
Valves MILITARY MIL-V-17547

C92200 Leaded Tin Bronze Equivalent Grades

CDA ASTM SAE AMS Federal Military Other
C92200 B505
B505M
B61
B143-2A		 622
J461
J462		   QQ-C-390, D4;
QQ-B-1005, Comp 1		 MIL-B-11553, Comp 1;
MIL-B-16541		 Navy M Bronze

C92200 Leaded Tin Bronze Chemical Composition

  Al Sb Cu Fe Pb Ni P Si S Sn Zn
Min/Max 0.005 0.25 86.0 - 90.0 0.25 1.0 - 2.0 1 0.05 0.005 0.05 5.5 - 6.5 3.0 - 5.0
Nominals - - 88.0000 - 1.5000 - - - - 6.0000 4.5000

C92200 Leaded Tin Bronze Mechanical Properties

  Al Sb Cu Fe Pb Ni P Si S Sn Zn
Min/Max 0.005 0.25 86.0 - 90.0 0.25 1.0 - 2.0 1 0.05 0.005 0.05 5.5 - 6.5 3.0 - 5.0
Nominals - - 88.0000 - 1.5000 - - - - 6.0000 4.5000

C92200 Leaded Tin Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 10.0 · 10-6 per oF (68-572 F) 18.0 · 10-6 per oC (20-200 C)
Density 0.312 lb/in3 at 68 F 8.64 gm/cm3 @ 20 C
Electrical Conductivity 14 %IACS @ 68 F 0.083 MegaSiemens/cm @ 20 C
Electrical Resistivity 72.5 ohms-cmil/ft @ 68 F 12.00 microhm-cm @ 20 C
Incipient Melting 600 oF 315 C
Magnetic Permeability 1 1
Melting Point - Liquidus 1810 F 988 C
Melting Point - Solidus 1518 F 826 C
Modulas of Elasticity in Tension 14000 ksi 96500 MPa
Specific Gravity 8.64 8.64
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 40.2 Btu · ft/(hr · ft2 · oF) at 68F 69.6 W/m · oK at 20 C

C92200 Leaded leaded tin bronze pipes and tubes supplier, C92200 Leaded bronze sheets and plates manufacturer,Navy M bronze round bars exporter, C92200 Leaded bronze pipe fittings for industrial use, ASTM B61 C92200 Leaded bronze products, leaded tin bronze for bearings and bushings, corrosion resistant bronze alloy for valves in Mumbai, India.

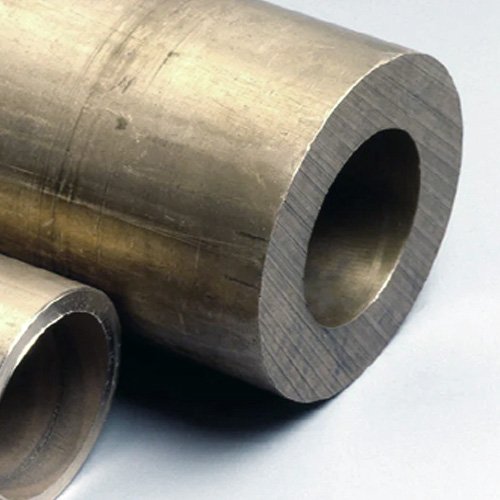

C92200 Leaded Tin Bronze Pipes & Tubes

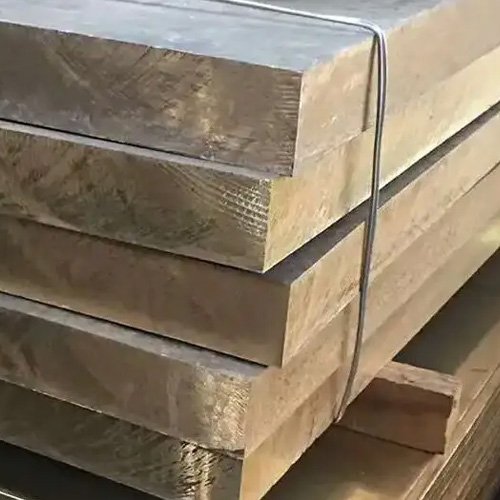

C92200 Leaded Tin Bronze Sheets, Plates & Coils

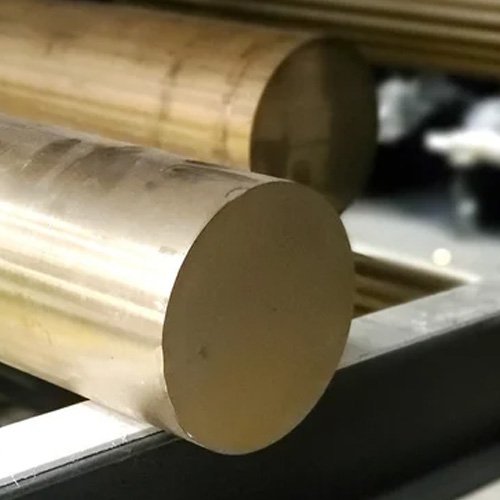

C92200 Leaded Tin Bronze Round Bars

C92200 Leaded Tin Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C92200 Leaded Tin Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C92200 Leaded Tin Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
