C95510 Nickel Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C95510 Nickel Aluminum Bronze Tubes, C95510 Nickel Aluminum Bronze Sheets & Plates, C95510 Nickel Aluminum Bronze Bars, CDA C95510 Nickel Aluminum Bronze Sheets, C95510 Nickel Aluminum Bronze Pipes, CDA C630 Nickel Aluminum Bronze Coils, Supplier, C95510 Nickel Aluminum Bronze Plates, C95510 Nickel Aluminum Bronze, NAB Alloy Supplier, C95510 Pipes, C95510 Tubes, C95510 Plates, C95510 Bars, Nickel Aluminum Bronze Fittings, Marine Bronze Alloy, Copper Alloy C95510 in Mumbai, India.

Raninox Steel is a leading manufacturer & Supplier of C95510 Nickel Aluminum Bronze pipes, tubes, sheets, plates, coils, and round bars. C95510 Nickel Aluminum Bronze (NAB) is a high-strength copper-based alloy containing aluminum, nickel, and iron, making it ideal for heavy-duty applications exposed to seawater, chemicals, and high pressure.

We supply C95510 Nickel Aluminum Bronze Pipes & Tubes manufactured according to international standards and are available in Seamless & welded, Round, square & rectangular tubes, Custom cut lengths & widly used in marine pipelines & cooling systems.

C63020 Sheets and Plates offer exceptional structural strength and corrosion resistance available in Cold rolled & hot rolled sheets & Plates. Used in application like Shipbuilding components, Marine hardware, Industrial machinery etc.

C63020 (AMS 4640 - CDA C95510) Nickel Aluminum Bronze alloy Bars & Rods is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion.

We provide a complete range of NAB C95510 Nickel Aluminum Bronze Pipe Fittings including elbows, tees, reducers, couplings, caps, and flanges. These fitting are Leak-proof performance, Corrosion resistant joints, Suitable for marine pressure lines.

Specifications for C95510 Nickel Aluminum Bronze

End Product Specification
Bar ASTM B150
Pipe ASTM B315
Rod ASTM B150
Sheets, Plates AMS 4590, ASTM B150
Tube ASTM B315

C95510 Nickel Aluminum Bronze Equivalent Grades

Specifications Designation
ASTM ASTM B505 / ASTM B271
UNS C95510
SAE SAE J461 / SAE J462
Military/AMS QQ-C-390B
AMS AMS 4880
Military Specification MIL-B-16033 Class 4
CDA C95510

C95510 Nickel Aluminum Bronze Chemical Composition

Propertion Al Cu Fe Mn Ni Sn Zn
Min/Max 9.7-10.9 78.0 min 2.0-3.5 1.5 4.5-5.5 .20 .30
Nominals 10.3 - 2.7 - 5.0 - -

C95510 Nickel Aluminum Bronze Mechanical Properties

Separately Cast Coupons English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings 1.0” and Under English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings Over 1.0” English Metric
Tensile Strength, min. 95.0 ksi 655 MPa
Yield Strength@ 0.2% Offset, min. 50.0 ksi 345 MPa
Elongation in 4D 8% 8%

C95510 Nickel Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 90 10-6 per oF (68-572 F) 16.2 · 10-6 per oC (20-300 C)
Density 0.272 lb/in3 at 68 F 7.53 gm/cm3 @ 20 C
Electrical Conductivity 8.5 %IACS @ 68 F 0.049 MegaSiemens/cm @ 20 C
Electrical Resistivity 122.8 ohms-cmil/ft @ 68 F 20.41 microhm-cm @ 20 C
Magnetic Permeability (As Cast) 1.32 1.32
Magnetic Permeability (TQ50 temper) 1.2 1.2
Melting Point - Liquidus 1930 F 1054 C
Melting Point - Solidus 1900 F 1038 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Poisson's Ratio 0.32 0.32
Specific Gravity 7.53 7.53
Specific Heat Capacity 0.1 Btu/lb/oF at 68 F 419.0 J/kg · oK at 293 K
Thermal Conductivity 24.2 Btu · ft/(hr · ft2 · oF)at 68F 41.9 W/m · oK at 20 C

C95510 Nickel Aluminum Bronze Plates, CDA C95510 Pipes Supplier, C95510 Nickel Aluminum Bronze Sheets & Plates, C95510 Nickel Aluminum Bronze Alloy Pipes Manufacturer, C95510 Nickel Aluminum Bronze Round Bars Supplier, CDA C95510 Nickel Aluminum Bronze Coils, C95510 Nickel Aluminum Bronze Rods, C95510 Nickel Aluminum Bronze Tubes Supplier in Mumbai, India.

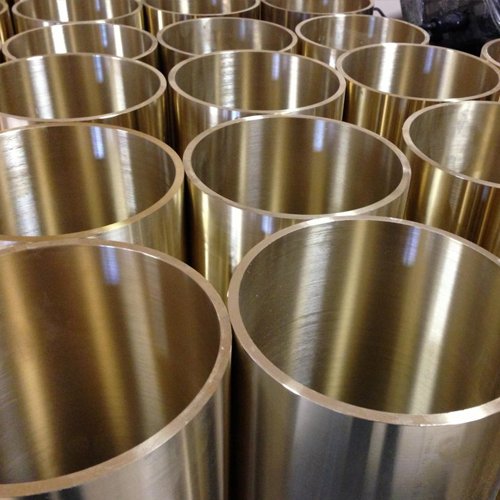

C95510 Nickel Aluminum Bronze Pipes & Tubes

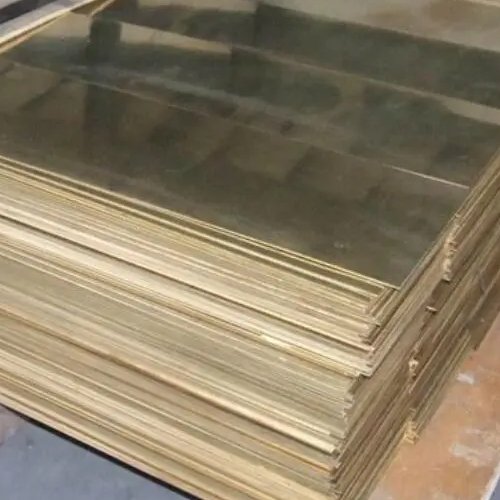

C95510 Nickel Aluminum Bronze Sheets, Plates & Coils

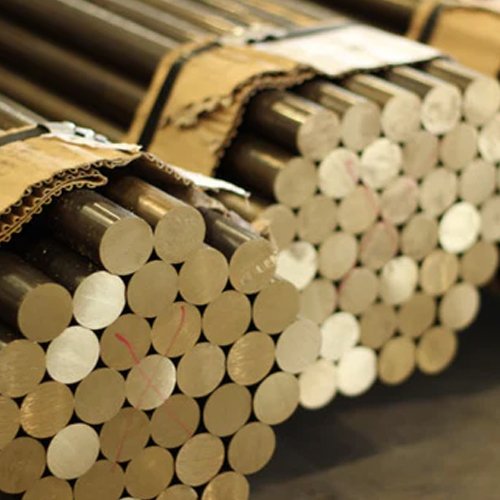

C95510 Nickel Aluminum Bronze Round Bars

C95510 Nickel Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C95510 Nickel Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C95510 Nickel Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

C95510 Nickel Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of C95510 Nickel Aluminum Bronze

C95510 Nickel Aluminum Bronze Plates Manufacturer C95510 Nickel Aluminum Bronze Slit Coils Supplier in India
CDA C95510 Nickel Aluminum Bronze Pipes at Best Price in India C95510 Nickel Aluminum Bronze Hex Bars Stockists
CDA C95510 Nickel Aluminum Bronze Strip Dealer in India CDA C95510 Nickel Aluminum Bronze Sheets Plates Wholesaler
C95510 Nickel Aluminum Bronze Round Rod Dealer CDA C95510 Nickel Aluminum Bronze ERW Pipes Manufacturer
C95510 Nickel Aluminum Bronze Rectangular Bars C95510 Nickel Aluminum Bronze Square Bars Supplier
CDA C95510 Nickel Aluminum Bronze Coils Supplier in Mumbai CDA C95510 Nickel Aluminum Bronze Condenser Tube Supplier
CDA C95510 Nickel Aluminum Bronze Sheets Stockist C95510 Nickel Aluminum Bronze Pipes Supplier
Phosphor Bronze C52100 Forgins CDA C95510 Nickel Aluminum Bronze Bolts Supplier
CDA C95510 Nickel Aluminum Bronze Coils CDA C95510 Nickel Aluminum Bronze Perforated Sheets Cut to Size
CDA C95510 Nickel Aluminum Bronze Nut Sheet Supplier in India C95510 Nickel Aluminum Bronze Round Bars Supplier

C95510 Nickel Aluminum Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
