C67500 Manganese Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C67500 Manganese Bronze Tubes, C67500 Manganese Bronze Sheets & Plates, C67500 Manganese Bronze Bars, CDA C67500 Manganese Bronze Sheets, C67500 Manganese Bronze Coil, Silicon Bronze Pipe Tube, Marine Grade Manganese Bronze, High Strength Bronze Alloy, Industrial Bronze Supplier, C67500 Bronze Price, C67500 Bronze Stockist, Copper Zinc Manganese Alloy Supplier in Mumbai, India.

Raninox Steel is leading supplier and exporter of C67500 Manganese Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C67500 Manganese Bronze is a high-strength copper-zinc alloy known for its excellent mechanical properties, good corrosion resistance, and superior wear resistance. This alloy is widely used in marine hardware, industrial components, bearings, gears, bushings, and heavy-duty engineering applications.

We offer high-performance C67500 Manganese Bronze Pipes & Tubes manufactured using superior grade raw materials and strict quality control standards. This copper-zinc-manganese alloy provides excellent strength, corrosion resistance, and wear resistance, making it suitable for heavy-duty engineering and marine applications.

We supply premium quality C67500 Manganese Bronze Sheets, Plates & Coils known for exceptional strength, wear resistance, and corrosion resistance. This alloy is widely used in marine hardware, heavy-duty machinery, and high-load industrial components where ordinary brass or bronze cannot perform.

C67500 Manganese Bronze Round Bars are high-strength copper-zinc alloys containing manganese, iron, aluminum, and silicon that significantly improve mechanical performance and wear resistance. These bars are widely used in marine hardware, heavy-duty engineering components, and industrial machinery where strength, corrosion resistance, and durability are critical.

Specifications for C67500 Manganese Bronze

End Product Specification
Bar ASTM B138, SAE J461, J463
Bar, For ging ASTM B124
Bolts ASTM F468
Forgings, Die ASTM B283, SAE J463, J461
Nuts ASTM F467
Rod ASTM B138, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes ASTM B138, SAE J461, J463
Shapes, Forging ASTM B124
Studs ASTM F468

C67500 Manganese Bronze Equivalent Grades

Specifications Designation
ISO CuAl8Fe3
UNS C67500
DIN -
EN CuAl8Fe3

C67500 Manganese Bronze Chemical Composition

  Al Cu Fe Pb Mn Sn Zn
Min/Max 0.25 57.0 - 60.0 0.80 - 2.0 0.2 0.05 - 0.50 0.50 - 1.5 Rem
Nominals - 58.5000 1.4000 - 0.1000 1.0000 39.0000

C67500 Manganese Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
H01 2.01     68 72 42 - - - - - - - - - - 44 -
H01 51 10 TYP 20 496 290 - - 27 77 - - - - - - 303 - 0
O60 1     68 65 30 - - - - - - - - - - 42 -
O60 25.4 0 TYP 20 448 207 - - 33 65 - - - - - - 290 - 0
H02 1     68 84 60 - - - - - - - - - - 48 -
H02 25.4 20 TYP 20 579 414 - - 19 90 - - - - - - 331 - 0
H01 2.01     68 77 45 - - - - - - - - - - 47 -
H01 51 10 TYP 20 531 310 - - 23 83 - - - - - - 324 - 0

C67500 Manganese Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.8 · 10-6 per oF (68-572 F) 21.2 · 10-6 per oC (20-300 C)
Density 0.302 lb/in3 at 68 F 8.36 gm/cm3 @ 20 C
Electrical Conductivity 24 %IACS @ 68 F 0.14 MegaSiemens/cm @ 20 C
Electrical Resistivity 43.2 ohms-cmil/ft @ 68 F 7.18 microhm-cm @ 20 C
Melting Point - Liquidus 1630 F 888 C
Melting Point - Solidus 1590 F 866 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulus of Rigidity 5600 ksi 38610 MPa
Specific Gravity 8.36 8.36
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg/ · oK at 293 K
Thermal Conductivity 61.0 Btu · ft/(hr · ft2 · oF) at 68F 105.6 W/m · oK at 20 C

C67500 Manganese Bronze Supplier, C67500 Manganese Bronze Manufacturer, C67500 Manganese Bronze Exporter, C67500 Bronze Pipes, C67500 Bronze Tubes, C67500 Bronze Sheets, C67500 Bronze Plates, C67500 Bronze Coils, C67500 Bronze Round Bars, Manganese Bronze ASTM B505, Manganese Bronze ASTM B584, in Mumbai, India.

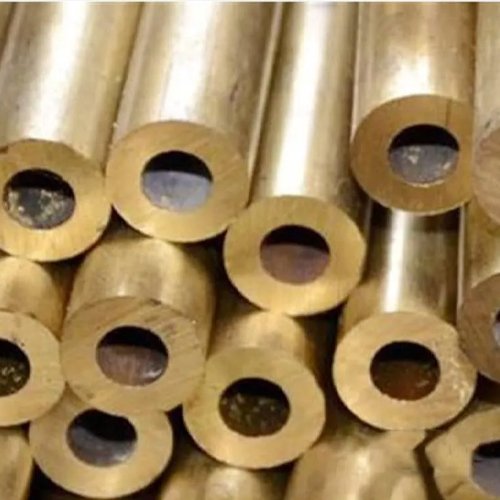

C67500 Manganese Bronze Pipes & Tubes

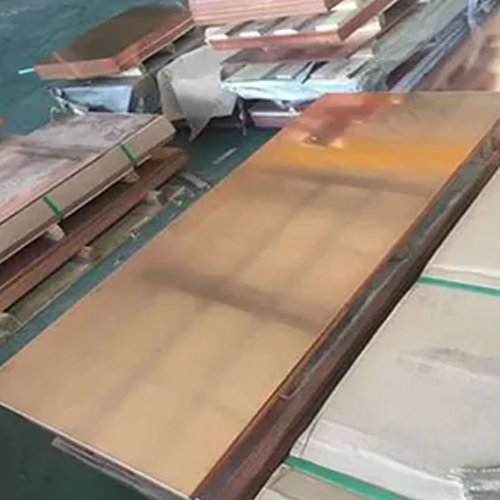

C67500 Manganese Bronze Sheets, Plates & Coils

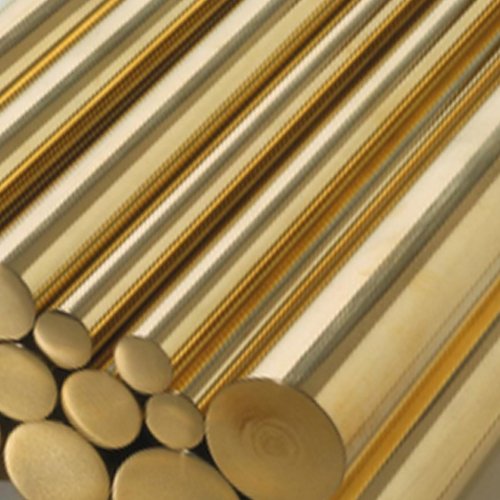

C67500 Manganese Bronze Round Bars

C67500 Manganese Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C67500 Manganese Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C67500 Manganese Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
