C90500 Tin Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C90500 Tin Bronze Tubes, C90500 Tin Bronze Sheets & Plates, C90500 Tin Bronze Bars, CDA C90500 Tin Bronze Sheets, C90500 Tin Bronze, C92700 Pipes and Tubes, C92700 Sheets Supplier, C90500 Plates Manufacturer, Bronze Bearing Material, Marine Bronze Alloy, ASTM B505 Bronze, ASTM B271 Bronze, Bronze Bush Material, Industrial Bronze Components, Copper Tin Alloy Supplier, Continuous Cast Bronze Bars, C90500 Round Bars Exporter & Supplier in Mumbai, India.

Raninox Steel is leading supplier and exporter of C90500 Tin Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C90500 Tin Bronze is a high-strength copper-zinc alloy enhanced with manganese and small additions of aluminum and iron. This alloy is known for its excellent corrosion resistance, high tensile strength, good wear resistance, and superior performance in marine and industrial environments.

C90500 Tin Bronze Pipes & Tubes are high-strength copper-tin alloy products widely used in marine, industrial, and heavy-duty engineering applications. Also known as Gun Metal Bronze, C90500 offers excellent corrosion resistance, superior wear properties, and good machinability, making it ideal for components exposed to harsh environments and high loads.

C90500 Tin Bronze Sheets, Plates & Coils is a high-strength copper alloy containing tin and zinc that offers excellent wear resistance, corrosion resistance, and superior machinability. C90500 Plates is particularly valued in marine, engineering, and power transmission industries due to its ability to perform reliably under load, pressure, and continuous movement. It is widely used in heavy-duty industrial applications where strength, durability, and resistance to friction are essential.

C90500 Tin Bronze (Gun Metal Bronze) round bars and rods are high-strength copper alloy products widely used in heavy-duty industrial, marine, and engineering applications. Known for excellent wear resistance, good corrosion resistance, and superior machinability, this alloy performs reliably under moderate loads and friction conditions.

Specifications for C90500 Tin Bronze

End Product Specification
Centrifugal AMS 4845, ASTM B271, SAE J462, J461
Continuous ASTM B505, SAE J461, J462
Ingot ASTM B30
Sand AMS 4845, ASTM B763, B584, B22, SAE J462, J461

C90500 Tin Bronze Equivalent Grades

CDA ASTM SAE AMS Federal Military Other
C90500 B505
B505M
B22
B22M
B143-1A		 62
J461
J462		 4845 QQ-C-390, D6
QQ-B-1005, Comp 16		 MIL-B-11553, Comp 16 Gun Metal

C90500 Tin Bronze Chemical Composition

  Al Sb Cu Fe Pb Ni P Si S Sn Zn
Min/Max 0.005 0.2 86.0 - 89.0 0.2 0.2 1 0.05 0.005 0.05 9.0 - 11.0 1.0 - 3.0
Nominals - - 87.5000 - - - - - - 10.0000 2.0000

C90500 Tin Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
As Centrifugal Cast
M02       68 45 22 - - - - - - - - - - - 13
M02   0 TYP 20 310 152 - - 25 - - - - - 75 - - 90 0
M02       68 40 18 - - - - - - - - - - - -
M02   0 SMIN 20 276 124 - - 20 - - - - - - - - - 0
As Continous Cast
M07       68 44 25 - - - - - - - - - - - -
M07   0 SMIN 20 303 172 - - 10 - - - - - - - - - 0
As Sand Cast
M01       68 40 18 - - - - - - - - - - - -
M01   0 SMIN 20 276 124 - - 20 - - - - - - - - - 0
M01       68 45 22 - - - - - - - - - - - 13
M01   0 TYP 20 310 152 - - 25 - - - - - 75 - - 90 0

C90500 Tin Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.0 · 10-6 per oF (68-572 F) 19.8 · 10-6 per oC (20-200 C)
Density 0.315 lb/in3 at 68 F 8.72 gm/cm3 @ 20 C
Electrical Conductivity 11.0 %IACS @ 68 F 0.064 MegaSiemens/cm @ 20 C
Electrical Resistivity 94.0 ohms-cmil/ft @ 68 F 15.63 microhm-cm @ 20 C
Magnetic Permeability 1 1
Melting Point - Liquidus 1830 F 999 C
Melting Point - Solidus 1570 F 854 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Specific Gravity 8.72 8.72
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 43.2 Btu · ft/(hr · ft2 · oF) at 68F 74.8 W/m · oK at 20 C

C90500 Tin Bronze Supplier, C90500 Tin Bronze Manufacturer, C90500 Tin Bronze Exporter, C90500 Bronze Pipes, C90500 Bronze Tubes, C90500 Bronze Sheets, C90500 Tin Bronze, Gun Metal Bronze Supplier, C90500 Bronze Pipes, C90500 Bronze Tubes, C90500 Bronze Sheets, C90500 Bronze Plates, C90500 Bronze Round Bars, C90500 Bronze Coils, Tin Bronze Manufacturer, C90500 Alloy Material, C90500 Bronze Rod in Mumbai, India.

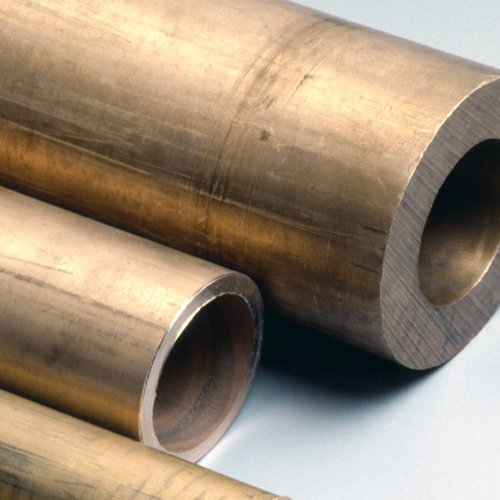

C90500 Tin Bronze Pipes & Tubes

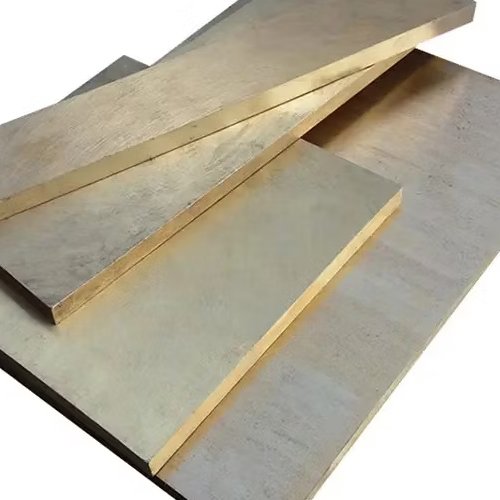

C90500 Tin Bronze Sheets, Plates & Coils

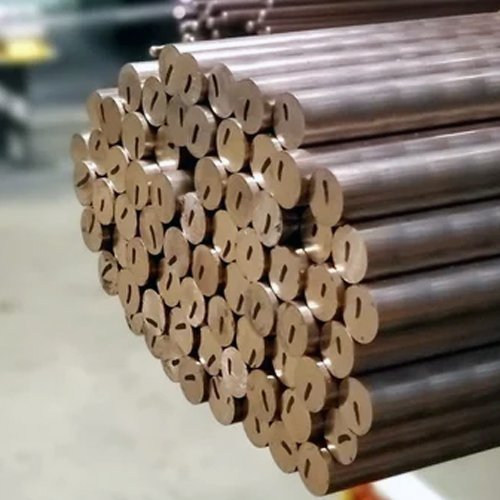

C90500 Tin Bronze Round Bars

C90500 Tin Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C90500 Tin Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C90500 Tin Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
