C65620 Silicon Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C65620 Silicon Bronze Tubes, C65620 Silicon Bronze Sheets & Plates, C65620 Silicon Bronze Bars, CDA C65620 Silicon Bronze Sheets, C65620 Silicon Bronze Coil, Silicon Bronze Pipe Tube, AMS 4616 Silicon Bronze round bars supplier, Silicon bronze pipe tube manufacturer, C65620 bronze sheet plate exporter in Mumbai, India.

Raninox Steel is leading supplier and exporter of C65620 Silicon Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C65620 Silicon Bronze is a high-strength copper-based alloy containing silicon, iron, manganese and zinc. It offers an excellent combination of mechanical strength, corrosion resistance, wear resistance and self-lubricating properties, making it ideal for marine, aerospace, electrical and industrial engineering applications.

C65620 Silicon Bronze Pipes & Tubes are premium copper-based alloy products known for their excellent corrosion resistance, high strength, and superior wear properties. The alloy contains copper with silicon and small additions of manganese, providing exceptional durability in marine, chemical, and industrial environments. Silicon Bronze C65620 tubing is widely used where strength comparable to mild steel is required along with the corrosion resistance of copper alloys.

C65620 Silicon Bronze Sheets is a high-performance copper alloy known for its excellent strength, corrosion resistance, and superior fabrication properties. Ideal for marine, architectural, industrial, and electrical applications, C65620 offers an exceptional balance of durability and workability. Our C65620 Silicon Bronze Sheets, Plates & Coils are manufactured to precise industry standards and are available in a wide range of thicknesses, widths, and finishes to meet diverse project requirements.

C65620 Silicon Bronze Round Bar is a high-strength copper alloy known for its excellent corrosion resistance, durability, and attractive golden appearance. Commonly referred to as high-silicon bronze, Alloy C65620 offers superior mechanical properties compared to standard bronze alloys, making it ideal for marine, industrial, architectural, and heavy-duty applications.

Specifications for C65620 Silicon Bronze

Bar ASME SB98, ASTM B98
Bolts ASTM F468
Nuts ASTM F467
Pipe ASTM B315
Plate ASTM B96
Plate, Clad ASTM B432
Rod ASME SB98, ASTM B98
Screws ASTM F468
Shapes ASME SB98, ASTM B98
Sheet ASTM B96
Strip ASTM B96
Studs ASTM F468
Tube ASTM B315
Wire ASTM B99, B105

C65620 Silicon Bronze Equivalent Grades

Specifications Designation
ISO CuSi1
UNS C65620
DIN 2.1525
EN CuSi3Fe2Zn3C

C65620 Silicon Bronze Chemical Composition

Cu Fe Mn Si Zn
Min/Max 90 1.0-2.0 1 2.4-4.0 1.5-4.0
Nominals - - - - -

C65620 Silicon Bronze Mechanical Properties

Separately Cast Coupons English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings 1.0” and Under English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings Over 1.0” English Metric
Tensile Strength, min. 95.0 ksi 655 MPa
Yield Strength@ 0.2% Offset, min. 50.0 ksi 345 MPa
Elongation in 4D 8% 8%

C65620 Silicon Bronze Physical Properties

Melting Point - Liquidus°F 1940
Melting Point - Solidus°F 1890
Densitylb/cu in. at 68°F 0.316
Specific Gravity 8.75
Electrical Conductivity% IACS at 68°F 12
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 33
Coefficient of Thermal Expansion 68-5720 to -6 power per °F (68 – 572°F) 9.9
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 17000
Modulus of Rigidityksi 6400

C65620 Silicon Bronze Plates, CDA C65620 Pipes Supplier, C65620 Silicon Bronze Sheets & Plates, C65620 Bronze Round Bar, C65620 Bronze Pipes & Tubes, Silicon Bronze Sheets & Plates C65620, C65620 Bronze Coil Manufacturer, marine grade silicon bronze material supplier, high strength copper alloy C65620 Pipes Supplier in Mumbai, India.

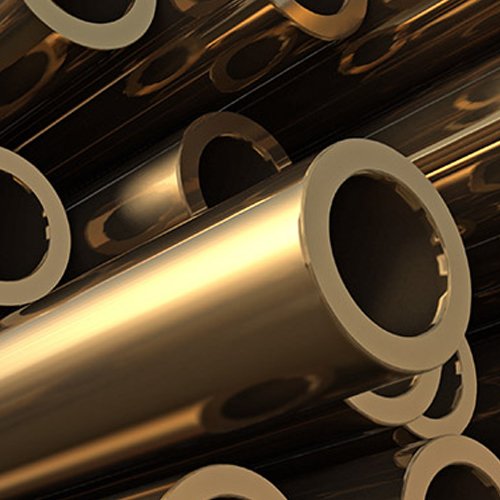

C65620 Silicon Bronze Pipes & Tubes

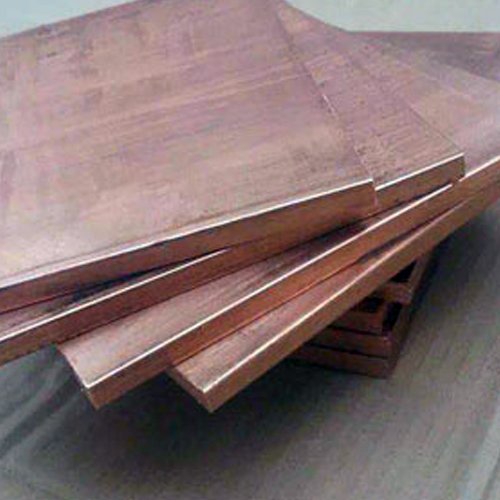

C65620 Silicon Bronze Sheets, Plates & Coils

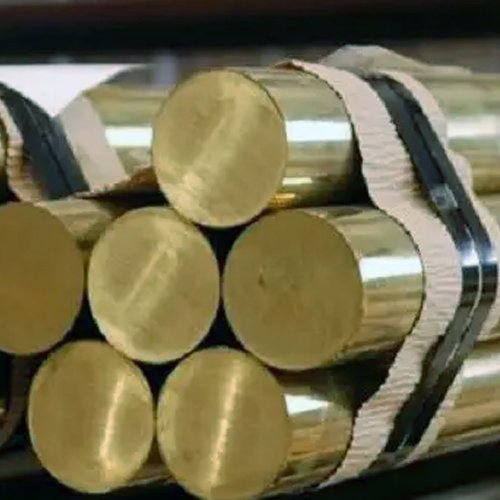

C65620 Silicon Bronze Round Bars

C65620 Silicon Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C65620 Silicon Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C65620 Silicon Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154

Types Of C65620 Silicon Bronze

C65620 Silicon Bronze Plates Manufacturer C65620 Silicon Bronze Slit Coils Supplier in India
CDA C65620 Silicon Bronze Pipes at Best Price in India C65620 Silicon Bronze Hex Bars Stockists
CDA C65620 Silicon Bronze Strip Dealer in India CDA C65620 Silicon Bronze Sheets Plates Wholesaler
C65620 Silicon Bronze Round Rod Dealer CDA C65620 Silicon Bronze ERW Pipes Manufacturer
C65620 Silicon Bronze Rectangular Bars C65620 Silicon Bronze Square Bars Supplier
CDA C65620 Silicon Bronze Coils Supplier in Mumbai CDA C65620 Silicon Bronze Condenser Tube Supplier
CDA C65620 Silicon Bronze Sheets Stockist C65620 Silicon Bronze Pipes Supplier
Phosphor Bronze C52100 Forgins CDA C65620 Silicon Bronze Bolts Supplier
CDA C65620 Silicon Bronze Coils CDA C65620 Silicon Bronze Perforated Sheets Cut to Size
CDA C65620 Silicon Bronze Nut Sheet Supplier in India C65620 Silicon Bronze Round Bars Supplier
