C67600 Manganese Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C67600 Manganese Bronze Tubes, C67600 Manganese Bronze Sheets & Plates, C67600 Manganese Bronze Bars, CDA C67600 Manganese Bronze Sheets, C67600 Manganese Bronze, C67600 Pipes and Tubes, C67600 Sheets Supplier, C67600 Plates Manufacturer, C67600 Round Bars Exporter & Supplier in Mumbai, India.

Raninox Steel is leading supplier and exporter of C67600 Manganese Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C67600 Manganese Bronze is a high-strength copper-zinc alloy enhanced with manganese and small additions of aluminum and iron. This alloy is known for its excellent corrosion resistance, high tensile strength, good wear resistance, and superior performance in marine and industrial environments.

We are a leading manufacturer and supplier of C67600 Manganese Bronze Pipes & Tubes, in the form of Seamless Pipes, ERW Pipes, Welded Tubes, Seamless Tubes and this engineered for high strength, superior corrosion resistance, and excellent wear performance. Manufactured in compliance with international standards, our manganese bronze pipes and tubes are widely used in marine, industrial, and heavy engineering applications.

C67600 Manganese Bronze Sheets, Plate & Coils is a high-strength copper-zinc alloy containing manganese, aluminum, iron, and tin that significantly improves hardness, wear resistance, and corrosion performance compared to standard brass grades. C67600 Manganese Bronze Sheets is widely used in industries requiring high mechanical strength and corrosion resistance such as Marine Industry, Heavy Engineering, Automotive & Transport, Oil & Gas, Industrial Machinery etc.

C67600 Manganese Bronze Round Bars is a high-strength copper-zinc alloy enriched with manganese, aluminum, and iron. It offers an excellent combination of strength, wear resistance, corrosion resistance, and machinability, making it ideal for heavy-duty engineering and marine applications where reliability and durability are critical. Our C67600 Manganese Bronze Round Bars are manufactured with precise dimensional accuracy and superior surface finish, suitable for machining, forging, and high-load mechanical components.

Specifications for C67600 Manganese Bronze

End Product Specification
Bar ASTM B138, SAE J461, J463
Bar, For ging ASTM B124
Bolts ASTM F468
Forgings, Die ASTM B283, SAE J463, J461
Nuts ASTM F467
Rod ASTM B138, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes ASTM B138, SAE J461, J463
Shapes, Forging ASTM B124
Studs ASTM F468

C67600 Manganese Bronze Equivalent Grades

Specifications Designation
ISO CuAl8Fe3
UNS C67600
DIN -
EN CuAl8Fe3

C67600 Manganese Bronze Chemical Composition

  Al Cu Fe Pb Mn Sn Zn
Min/Max 0.25 57.0 - 60.0 0.80 - 2.0 0.2 0.05 - 0.50 0.50 - 1.5 Rem
Nominals - 58.5000 1.4000 - 0.1000 1.0000 39.0000

C67600 Manganese Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
H01 2.01     68 72 42 - - - - - - - - - - 44 -
H01 51 10 TYP 20 496 290 - - 27 77 - - - - - - 303 - 0
O60 1     68 65 30 - - - - - - - - - - 42 -
O60 25.4 0 TYP 20 448 207 - - 33 65 - - - - - - 290 - 0
H02 1     68 84 60 - - - - - - - - - - 48 -
H02 25.4 20 TYP 20 579 414 - - 19 90 - - - - - - 331 - 0
H01 2.01     68 77 45 - - - - - - - - - - 47 -
H01 51 10 TYP 20 531 310 - - 23 83 - - - - - - 324 - 0

C67600 Manganese Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.8 · 10-6 per oF (68-572 F) 21.2 · 10-6 per oC (20-300 C)
Density 0.302 lb/in3 at 68 F 8.36 gm/cm3 @ 20 C
Electrical Conductivity 24 %IACS @ 68 F 0.14 MegaSiemens/cm @ 20 C
Electrical Resistivity 43.2 ohms-cmil/ft @ 68 F 7.18 microhm-cm @ 20 C
Melting Point - Liquidus 1630 F 888 C
Melting Point - Solidus 1590 F 866 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulus of Rigidity 5600 ksi 38610 MPa
Specific Gravity 8.36 8.36
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg/ · oK at 293 K
Thermal Conductivity 61.0 Btu · ft/(hr · ft2 · oF) at 68F 105.6 W/m · oK at 20 C

C67600 Manganese Bronze Supplier, C67600 Manganese Bronze Manufacturer, C67600 Manganese Bronze Exporter, C67600 Bronze Pipes, C67600 Bronze Tubes, C67600 Bronze Sheets, C67600 Marine Bronze, High Strength Manganese Bronze, C67600 Bronze Coil, C67600 Bronze Pipe Supplier, Manganese Bronze Round Bar, C67600 Bronze Plates, Manganese Bronze C67600 Stockist, C67600 Alloy Material, C67600 Bronze Rod in Mumbai, India.

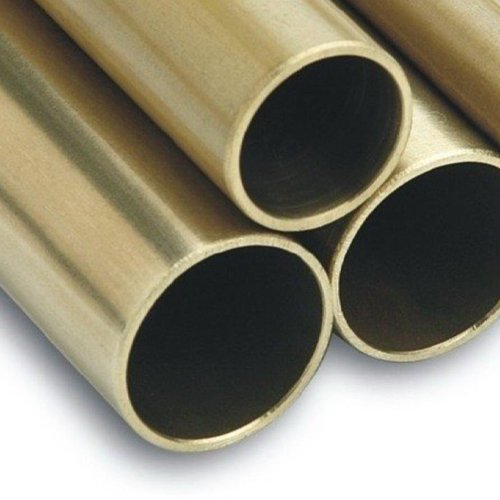

C67600 Manganese Bronze Pipes & Tubes

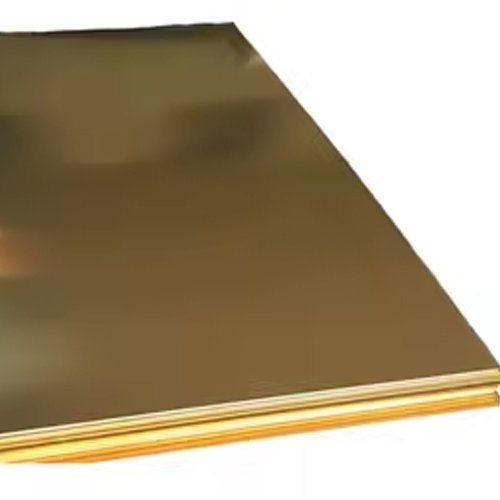

C67600 Manganese Bronze Sheets, Plates & Coils

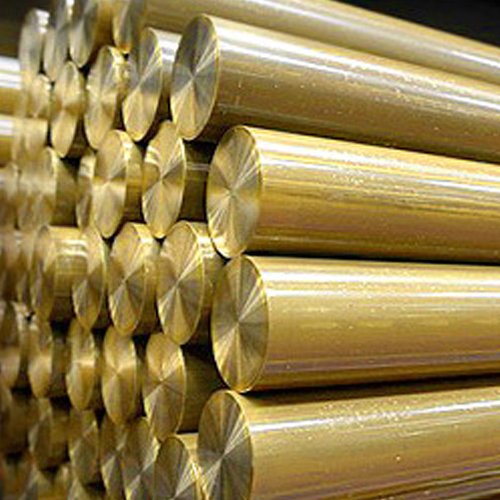

C67600 Manganese Bronze Round Bars

C67600 Manganese Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C67600 Manganese Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C67600 Manganese Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
