AMS 4881 Nickel Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of AMS 4881 Nickel Aluminum Bronze Tubes, AMS 4881 Nickel Aluminum Bronze Plates, AMS 4881 Nickel Aluminum Bronze Bars, AMS 4881 Nickel Aluminum Bronze Sheets, AMS 4881 Nickel Aluminum Bronze Pipes, AMS 4881 Nickel Aluminum Bronze Coils, AMS 4881 Round Bars Supplier, AMS 4881 Pipe Fittings, Copper Alloy AMS 4881 Supplier in Mumbai, India.

Raninox Steel is a trusted manufacturer and supplier of premium-quality AMS 4881 Nickel Aluminum Bronze products. With a strong commitment to quality, precision, and customer satisfaction, we deliver a wide range of industrial materials including pipes, tubes, sheets, plates, coils, round bars, and pipe fittings.

The exceptional resilience of Nickel Aluminum Bronze AMS 4881 pipes and tubes to biofouling and seawater corrosion is well-known. These items are perfect for desalination, offshore, and marine applications. High-performance alloy AMS 4881 Nickel Aluminum Bronze is renowned for its remarkable resistance to corrosion, particularly in maritime settings.

In particular, our AMS 4881 Nickel Aluminum Bronze (NAB) Sheets & Plates are well known for their outstanding performance in maritime settings. It is the ideal option for shipbuilding and offshore industries due to its resistance to corrosion, biofouling, and cavitation. The capacity of NAB 4881 Coils to endure severe seawater conditions without deteriorating is one of its main features. This ensures long-term reliability and reduced maintenance costs. Additionally, its high strength and durability make it suitable for critical components such as propellers, valves, and pumps.

AMS 4881 Nickel Aluminum Bronze Round Bars are commonly utilized in shafts, fasteners, machined parts, and high-volume industrial applications. These bars provide superior strength, wear resistance, and machining performance.

Our AMS 4881 Nickel Aluminum Bronze Pipe Fittings are engineered to perform consistently in fluid transmission and pressure systems. They operate exceptionally well in corrosive situations such as offshore and maritime installations. Elbows, tees, reducers, and flanges are just a few of the various pipe fittings we provide.

Specifications for AMS 4881 Nickel Aluminum Bronze

End Product Specification
Bar ASTM B150
Pipe ASTM B315
Rod ASTM B150
Sheets, Plates AMS 4881, ASTM B150
Tube ASTM B315

AMS 4881 Nickel Aluminum Bronze Equivalent Grades

Specifications Designation
ASTM ASME SB150, ASTM B-150, B-124, B-171, B-283
UNS C95520
SAE SAE J463
Military/AMS QQ-C-465B
AMS AMS 4881
Military Specification MIL-B-16033 Class 4
CDA AMS 4881

AMS 4881 Nickel Aluminum Bronze Chemical Composition

Cu Fe Al Nl Mn Zn Sn
78.0 min. 2.0 – 3.5 9.7 – 10.9 4.5 – 5.5* 1.50 max. 0.30 max. 0.20 max.
Sum of all named elements = 99.8%

AMS 4881 Nickel Aluminum Bronze Mechanical Properties

Tensile Strength, min Yield Strength, at 0.2% Offset, min Elongation, in 4D, min Brinell Hardness Remarks
Ksi MPa Ksi MPa % min to max BHN
105.0 724 62.5 431 9 192 to 248 Castings <4.0,
Heat Treated
95.0 655 56.0 386 9 192 to 248 Castings 4.0+,
Heat Treated

AMS 4881 Nickel Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 90 10-6 per oF (68-572 F) 16.2 · 10-6 per oC (20-300 C)
Density 0.272 lb/in3 at 68 F 7.53 gm/cm3 @ 20 C
Electrical Conductivity 8.5 %IACS @ 68 F 0.049 MegaSiemens/cm @ 20 C
Electrical Resistivity 122.8 ohms-cmil/ft @ 68 F 20.41 microhm-cm @ 20 C
Magnetic Permeability (As Cast) 1.32 1.32
Magnetic Permeability (TQ50 temper) 1.2 1.2
Melting Point - Liquidus 1930 F 1054 C
Melting Point - Solidus 1900 F 1038 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Poisson's Ratio 0.32 0.32
Specific Gravity 7.53 7.53
Specific Heat Capacity 0.1 Btu/lb/oF at 68 F 419.0 J/kg · oK at 293 K
Thermal Conductivity 24.2 Btu · ft/(hr · ft2 · oF)at 68F 41.9 W/m · oK at 20 C

AMS 4881 Sheets & Plates, Nickel Aluminum Bronze Fittings, Marine Grade Bronze Supplier, AMS 4881 Material Properties, Nickel Aluminum Bronze Exporter, AMS 4881 Nickel Aluminum Bronze, Nickel Aluminum Bronze Manufacturer, AMS 4881 Supplier, Nickel Aluminum Bronze Pipes, AMS 4881 Round Bars India in Mumbai, India.

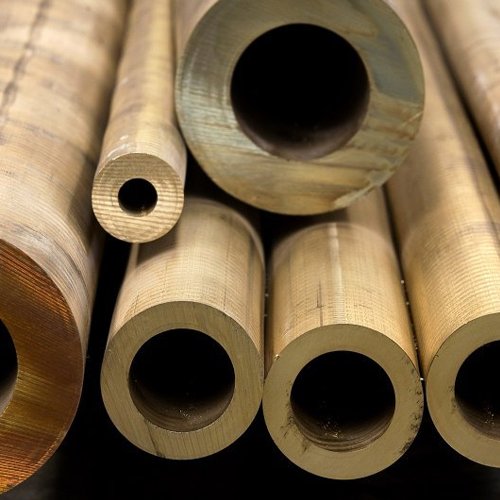

AMS 4881 Nickel Aluminum Bronze Pipes & Tubes

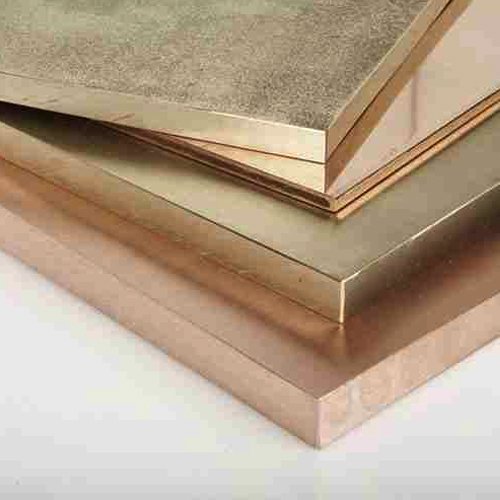

AMS 4881 Nickel Aluminum Bronze Sheets, Plates & Coils

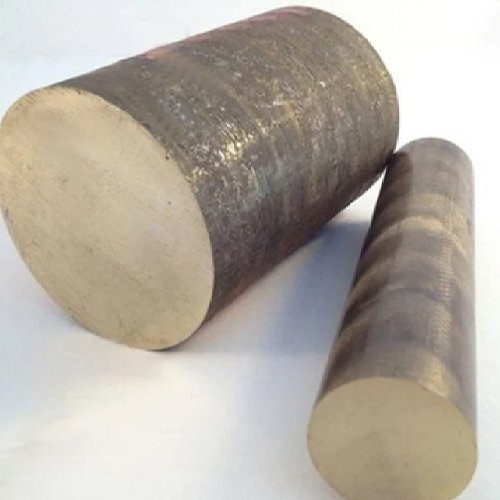

AMS 4881 Nickel Aluminum Bronze Round Bars

AMS 4881 Nickel Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

AMS 4881 Nickel Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

AMS 4881 Nickel Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

AMS 4881 Nickel Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of AMS 4881 Nickel Aluminum Bronze

AMS 4881 Nickel Aluminum Bronze Plates Manufacturer AMS 4881 Nickel Aluminum Bronze Slit Coils Supplier in India
AMS 4881 Nickel Aluminum Bronze Pipes at Best Price in India AMS 4881 Nickel Aluminum Bronze Hex Bars Stockists
AMS 4881 Nickel Aluminum Bronze Strip Dealer in India AMS 4881 Nickel Aluminum Bronze Sheets Plates Wholesaler
AMS 4881 Nickel Aluminum Bronze Round Rod Dealer AMS 4881 Nickel Aluminum Bronze ERW Pipes Manufacturer
AMS 4881 Nickel Aluminum Bronze Rectangular Bars AMS 4881 Nickel Aluminum Bronze Square Bars Supplier
AMS 4881 Nickel Aluminum Bronze Coils Supplier in Mumbai AMS 4881 Nickel Aluminum Bronze Condenser Tube Supplier
AMS 4881 Nickel Aluminum Bronze Sheets Stockist AMS 4881 Nickel Aluminum Bronze Pipes Supplier
AMS 4881 Forgins AMS 4881 Nickel Aluminum Bronze Bolts Supplier
AMS 4881 Nickel Aluminum Bronze Coils AMS 4881 Nickel Aluminum Bronze Perforated Sheets Cut to Size
AMS 4881 Nickel Aluminum Bronze Nut Sheet Supplier in India AMS 4881 Nickel Aluminum Bronze Round Bars Supplier
