Raninox Steel is leading supplier and exporter of C23000 Red Brass Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. known for delivering premium quality brass products for a wide range of industrial applications. With a strong focus on quality, precision manufacturing, and international standards, we provide reliable brass solutions to customers across domestic and global markets.

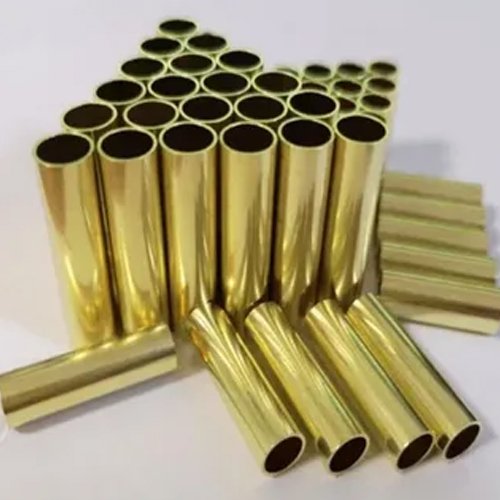

We manufactures high-precision C23000 Red Brass Pipes and Tubes designed for plumbing, marine equipment, and industrial piping systems. These pipes offer excellent corrosion resistance and durability in harsh environments. C23000 Red Brass pipes are widely used in plumbing systems, heat exchangers, architectural applications, and marine environments.

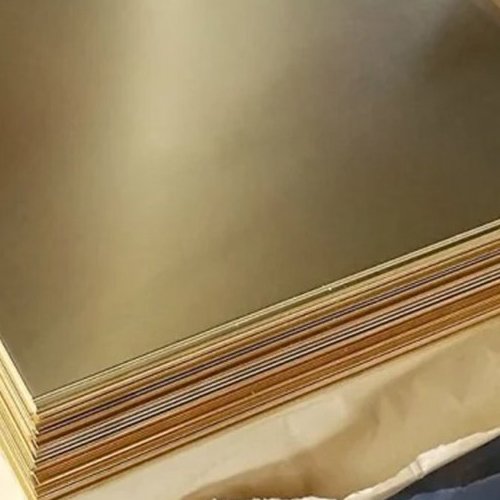

We offer a wide range of C23000 Red Brass Sheets, Plates, and Coils manufactured with exceptional precision and uniform thickness. These products are known for their excellent formability, attractive appearance, and resistance to corrosion, making them ideal for architectural applications, electrical components, decorative products, and industrial fabrication.

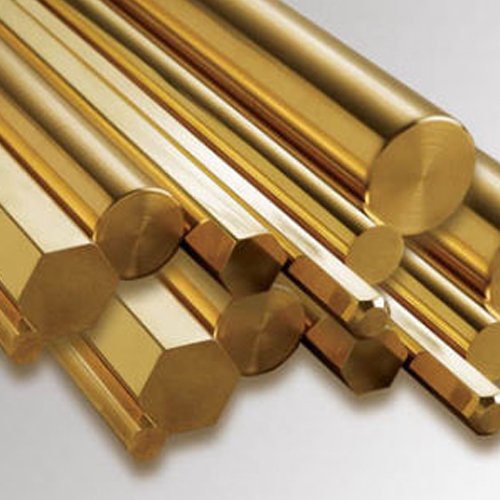

C23000 Red Brass Round Bars supplied by Raninox Steel are manufactured using high-grade raw materials and modern machining processes. These bars offer excellent machinability and are widely used in precision engineering and manufacturing applications.

Raninox Steel also manufactures a comprehensive range of C23000 Red Brass Pipe Fittings designed for reliable connections in plumbing and piping systems. Our fittings provide leak-proof performance and excellent durability even in challenging environments.

Specifications for C23000 Red Brass

End Product Specification
Bar ASTM B36
Fittings ASME B16.29, B16.22
Nipples ASTM B687
Pipe ASME SB43, ASTM B698, B43
Plate ASTM B36
Sheet ASTM B36, SAE J461, J463
Strip ASTM B888, B36, SAE J463, J461
Tube ASTM B569, B698
Tube, Condenser ASME SB111, ASTM B111
Tube, Finned ASME SB359, ASTM B359
Tube, Seamless AMS 4553, ASME SB135, ASTM B135, FEDERAL WW-T-791, MILITARY MIL-T-20168, SAE J461, J463
Tube, U-Bend ASME SB395, ASTM B395
Tube, Welded ASME SB543, ASTM B587, B543
Wire ASTM B134

C23000 Red Brass Equivalent Grades

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Red Brass C23000 CW502L CuZn15

C23000 Red Brass Chemical Composition

  Cu Fe Pb Zn
Min/Max 84.0 - 86.0 0.05 0.05 Rem
Nominals 85.0000 - - 15.0000

C23000 Red Brass Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
FLAT PRODUCTS
H04 0.04     68 70 57 - - - - - - - - - - 42 -
H04 1 0 TYP 20 483 393 - - 5 77 - - 68 - - - 290 - 0
OS070 0.04     68 39 10 - - - - - - - - - - 31 -
OS070 1 0 TYP 20 269 69 - - 48 - - 56 10 - - - 214 - 0
M20 0     68 43 - - - - - - - - - - - - -
M20 0 0 TYP 20 299 - - - - - - - - - - - - - 0
OS015 0.04     68 45 18 - - - - - - - - - - 33 -
OS015 1 0 TYP 20 310 124 - - 42 - - 71 38 - - - 228 - 0
H02 0.04     68 57 49 - - - - - - - - - - 37 -
H02 1 0 TYP 20 393 338 - - 12 65 - - 60 - - - 255 - 0
H06 0.04     68 78 61 - - - - - - - - - - 44 -
H06 1 0 TYP 20 538 421 - - 4 83 - - 72 - - - 303 - 0
OS035 0.04     68 41 14 - - - - - - - - - - 31 -
OS035 1 0 TYP 20 283 97 - - 46 - - 63 22 - - - 214 - 0
H08 0.04     68 84 63 - - - - - - - - - - 46 -
H08 1 0 TYP 20 579 434 - - 3 86 - - 74 - - - 317 - 0
OS050 0.04     68 40 12 - - - - - - - - - - 31 -
OS050 1 0 TYP 20 276 83 - - 47 - - 59 14 - - - 214 - 0
H01 0     68 49 - - - - - - - - - - - - -
H01 0 0 TYP 20 338 - - - - 45 - - 48 - - - - - 0
OS025 0.04     68 43 16 - - - - - - - - - - 32 -
OS025 1 0 TYP 20 296 110 - - 44 - - 66 28 - - - 221 - 0
PIPE
OS015 0     68 44 18 - - - - - - - - - - - -
OS015 0 0 TYP 20 303 124 - - 45 - - 71 - - - - - - 0
TUBE
H80 0.06     68 70 58 - - - - - - - - - - - -
H80 1.65 35 TYP 20 483 400 - - 8 77 - - 68 - - - - - 0
H55 0.06     68 50 40 - - - - - - - - - - - -
H55 1.65 15 TYP 20 345 276 - - 30 55 - - 54 - - - - - 0
OS050 0.06     68 40 12 - - - - - - - - - - - -
OS050 1.65 0 TYP 20 276 83 - - 55 - - 60 15 - - - - - 0
OS015 0.06     68 44 18 - - - - - - - - - - - -
OS015 1.65 0 TYP 20 303 124 - - 45 - - 71 38 - - - - - 0
WIRE
OS025 0.08     68 43 - - - - - - - - - - - 32 -
OS025 2 0 TYP 20 296 - - - - - - - - - - - 221 - 0
H02 0.08     68 72 - - - - - - - - - - - 43 -
H02 2 0 TYP 20 496 - - - 8 - - - - - - - 296 - 0
H08 0.08     68 105 - - - - - - - - - - - 54 -
H08 2 0 TYP 20 724 - - - - - - - - - - - 372 - 0
OS035 0.08     68 41 - - - - - - - - - - - 31 -
OS035 2 0 TYP 20 283 - - - 48 - - - - - - - 214 - 0
H04 0.08     68 88 - - - - - - - - - - - 48 -
H04 2 0 TYP 20 607 - - - 6 - - - - - - - 331 - 0
OS015 0.08     68 45 - - - - - - - - - - - 33 -
OS015 2 0 TYP 20 310 - - - - - - - - - - - 228 - 0
H00 0.08     68 50 - - - - - - - - - - - 35 20
H00 2 0 TYP 20 345 - - - 25 - - - - - - - 241 138 0
H01 0.08     68 59 - - - - - - - - - - - 38 -
H01 2 0 TYP 20 407 - - - 11 - - - - - - - 262 - 0

C23000 Red Brass Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 10.4 ·10-6 per oF (68-572 oF) 18.7 · 10-6 per oC (20-300 C)
Density 0.316 lb/in3 @ 68 F 8.75 gm/cm3 @ 20 C
Electrical Conductivity 37 %IACS @ 68 F 0.216 MegaSiemens/cm @ 20 C
Electrical Resistivity 28.0 ohms-cmil/ft @ 68 F 4.65 microhm-cm @ 20 C
Melting Point Liquid US 1880 F 1027 C
Melting Point Solid US 1810 F 988 C
Modulas of Elasticity in Tension 17000 ksi 117000 MPa
Modulas of Rigidity 6400 ksi 44130 MPa
Specific Gravity 8.75 8.75
Specific Heat Capacity 0.09 Btu/lb/oF @ 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 92.0 Btu · ft/(hr · ft2 · oF) @ 68 F 159.2 W/m · oK at 20 C

C23000 Red Brass, C23000 Red Brass, C23000 Red Brass, Red Brass C23000 Pipes, C23000 Red Brass Tubes, C23000 Red Brass Sheets, C23000 Red Brass Plates, C23000 Red Brass Coils, C23000 Red Brass Round Bars, C23000 Red Brass Pipe Fittings, Red Brass Alloy C23000 Products, C23000 Brass Pipes India, C23000 Red Brass Tubing, C23000 Red Brass Sheet Supplier India, ASTM C23000 Brass Products, C23000 Red Brass Industrial Applications, C23000 Brass Pipes, C23000 Brass Plates, C23000 Brass Coils, Red Brass C23000 Round Bars Exporter in Mumbai, India.

C23000 Red Brass Pipes & Tubes

C23000 Red Brass Sheets, Plates & Coils

C23000 Red Brass Round Bars

C23000 Red Brass Sheets & Plates Size Chart

Brass Sheet Size Chart
Sizes Weight
(Millimeter) (kg/sheet)
2000 * 600 * 0.4 4.1
2000 * 600 * 0.5 5.14
2000 * 600 * 0.6 6.15
2000 * 600 * 0.8  8.19
2000 * 600 * 1.0 10.3
2000 * 600 * 1.2 12.2
2000 * 600 * 1.5 15.45
2000 * 600 * 2.0 20.52
2000 * 600 * 2.5 25.6
2000 * 600 * 3.0 30.72
1800 * 900 * 3.0 41.49
1800 * 900 * 5.0 69.09
2000 * 1000 * 6.0 103.2

C23000 Red Brass Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C23000 Red Brass Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
