C67310 Manganese Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C67310 Manganese Bronze Tubes, C67310 Manganese Bronze Sheets & Plates, C67310 Manganese Bronze Bars, CDA C67310 Manganese Bronze Sheets, C67310 Manganese Bronze Coil, Silicon Bronze Pipe Tube, Marine Grade Manganese Bronze, High Strength Bronze Alloy, Industrial Bronze Supplier, C67310 Bronze Price, C67310 Bronze Stockist, Copper Zinc Manganese Alloy Supplier in Mumbai, India.

Raninox Steel is a trusted manufacturer and supplier of high-quality C67310 Manganese Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. We provide precision-engineered products with excellent strength, corrosion resistance, and longevity for industrial applications around the world.

We provide high-performance C67310 Manganese Bronze Pipes & Tubes with superior strength, wear resistance, and corrosion protection. It is commonly utilized in marine and industrial applications where materials must survive extreme conditions.

Our C67310 Manganese Bronze Sheets are precisely made to provide an excellent surface polish, strength, and formability. These sheets are perfect for fabrication work, industrial components, and applications that require consistent bronze performance.

We supply C67310 Manganese Bronze Plates, which are noted for their strength, wear resistance, and machinability. These plates are frequently utilized in the heavy-duty engineering, marine components, and manufacturing industries where long-term material performance is essential.

C67310 Manganese Bronze Round Bars for Machining, Turning, and Manufacturing. These bars are perfect for producing shafts, fasteners, fittings, and precise items that require both strength and corrosion resistance.

Our C67310 Manganese Bronze Pipe Fittings are manufactured to provide secure connections and long-term performance in pipe systems. They are appropriate for maritime, chemical, and industrial applications where durability and leak resistance are critical.

Specifications for C67310 Manganese Bronze

End Product Specification
Bar SAE J461, J463
Forgings SAE J461, J463
Rod SAE J463, J461
Shapes SAE J463, J461

C67310 Manganese Bronze Equivalent Grades

Specifications Designation
ASTM B249
UNS C67310
SAE J461, J463
ISO CuZn35Mn3Pb2Si1

C67310 Manganese Bronze Chemical Composition

Cu% Pb% Sn% Zn% Fe% Ni%1 Al% Mn% Si%
58.00-
63.00		 0.40-
3.00
0.30
Rem.
0.50
0.25
0.25		 2.00-
3.50		 0.50-
1.50

C67310 Manganese Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
O61 0     68 60 - - - - - - - - - - - - -
O61 0 0 TYP 20 414 - - - 64 - - - - - - - - - 0
H01 0     68 74 - - - - - - - - - - - - -
H01 0 0 TYP 20 510 - - - 31 - - - - - - - - - 0
WIRE
H00 0.42     68 68 - - - - - - - - - - - - -
H00 10.7 7 TYP 20 469 - - - 52 71 - - - - - - - - 0
O61 0.39     68 60 - - - - - - - - - - - - -
O61 10 0 TYP 20 414 - - - 67 - - - - - - - - - 0
H01 0.49     68 84 - - - - - - - - - - - - -
H01 12.4 21 TYP 20 579 - - - 29 84 - - - - - - - - 0

C67310 Manganese Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11 · 10-6 per oF (68-572 F) 19.0 · 10-6 per oC (20-300 C)
Density .30 lb/in3 at 68 F 8.3 gm/cm3 @ 20 C
Electrical Conductivity 22 %IACS @ 68 F 0.13 MegaSiemens/cm @ 20 C
Melting Point - Liquidus 1605 F 874 C
Modulas of Elasticity in Tension 17000 ksi 117200 MPa
Specific Gravity 8.30 8.3
Thermal Conductivity 55 Btu · ft/(hr · ft2 · oF)at 68F 95.0 W/m · oK at 20 C

C67310 Manganese Bronze Supplier, C67310 Manganese Bronze Manufacturer, C67310 Manganese Bronze Exporter, C67310 Bronze Pipes, C67310 Bronze Tubes, C67310 Bronze Sheets, C67310 Bronze Plates, C67310 Bronze Coils, C67310 Bronze Round Bars, Manganese Bronze ASTM B505, Manganese Bronze ASTM B584 Bars in Mumbai, India.

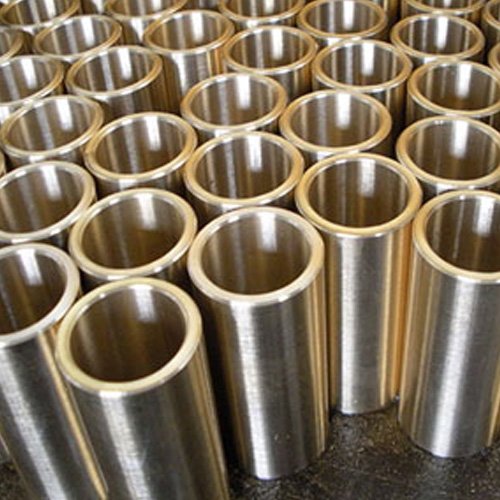

C67310 Manganese Bronze Pipes & Tubes

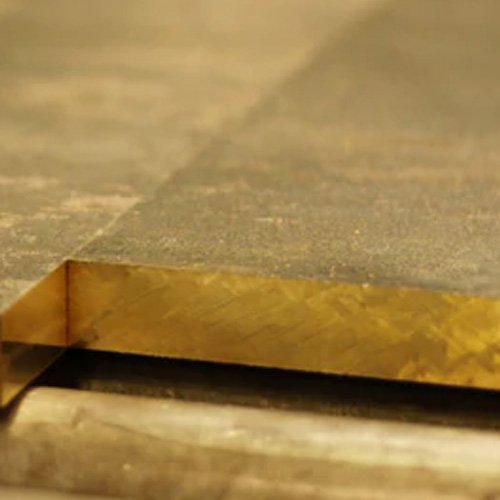

C67310 Manganese Bronze Sheets, Plates & Coils

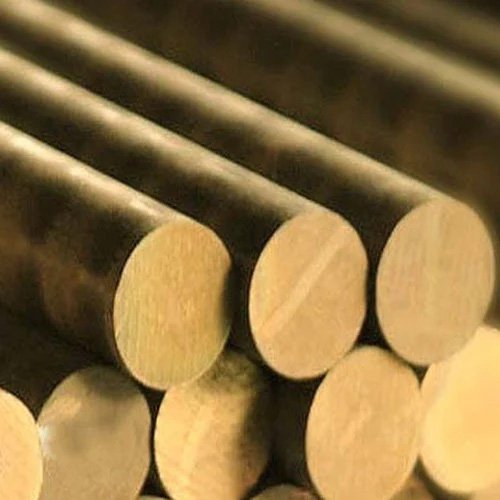

C67310 Manganese Bronze Round Bars

C67310 Manganese Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C67310 Manganese Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C67310 Manganese Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154

Types Of C67310 Manganese Bronze

C67310 Manganese Bronze Plates Manufacturer C67310 Manganese Bronze Slit Coils Supplier in India
CDA C67310 Manganese Bronze Pipes at Best Price in India C67310 Manganese Bronze Hex Bars Stockists
CDA C67310 Manganese Bronze Strip Dealer in India CDA C67310 Manganese Bronze Sheets Plates Wholesaler
C67310 Manganese Bronze Round Rod Dealer CDA C67310 Manganese Bronze ERW Pipes Manufacturer
C67310 Manganese Bronze Rectangular Bars C67310 Manganese Bronze Square Bars Supplier
CDA C67310 Manganese Bronze Coils Supplier in Mumbai CDA C67310 Manganese Bronze Condenser Tube Supplier
CDA C67310 Manganese Bronze Sheets Stockist C67310 Manganese Bronze Pipes Supplier
Manganese Bronze C67310 Forgins CDA C67310 Manganese Bronze Bolts Supplier
CDA C67310 Manganese Bronze Coils CDA C67310 Manganese Bronze Perforated Sheets Cut to Size
CDA C67310 Manganese Bronze Nut Sheet Supplier in India C67310 Manganese Bronze Round Bars Supplier

C67310 Manganese Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
