Raninox Steel is a trusted manufacturer and global supplier of high-quality C46400 Naval Brass Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. Known for exceptional corrosion resistance—especially in marine environments—our Naval Brass products are engineered to meet the highest international standards.

Our C46400 Naval Brass Pipes & Tubes are supplied for applications that require strength, corrosion resistance, and reliable forming performance. These tubes are widely used in marine equipment, condensers, heat exchanger components, plumbing assemblies, and industrial fabrication.

Our C46400 Naval Brass Sheets, Plates are ideal for components that require easy fabrication, stable strength, and dependable resistance to seawater and harsh operating conditions. These products are commonly used in shipbuilding, industrial panels, valves, fittings, and general engineering parts. C46400 Coils are supplied for precision processing, stamping, forming, and fabrication work. They are a practical choice for manufacturers who need a workable copper alloy with consistent properties for downstream production.

C46400 Naval Brass Round Bars are suitable for turned parts, fasteners, shafts, pins, valve parts, and machined components. C46400 is used for high-strength cold-headed products and marine hardware applications.

Our C46400 Naval Brass Pipe Fittings manufactured from C46400 naval brass for assemblies that demand corrosion resistance, reliability, and easy installation. These fittings are suitable for marine, plumbing, and industrial piping systems.

Specifications for C46400 Naval Brass

End Product Specification
Bar AMS 4611, 4612, ASTM B21, FEDERAL QQ-B-639, SAE J463, J461
Bar, Forging ASTM B124
Bolts ASTM F468
Forgings, Die ASTM B283
Nuts ASTM F467
Plate FEDERAL QQ-B-639
Plate, Clad ASTM B432
Plate, Condenser Tube ASME SB171, ASTM B171
Rod AMS 4611, 4612, ASTM B21, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes ASTM B21
Shapes, Forging ASTM B124
Sheet FEDERAL QQ-B-639
Strip FEDERAL QQ-B-639, SAE J463, J461
Studs ASTM F468
Wire, Metallizing MILITARY MIL-W-6712

C46400 Naval Brass Equivalent Grades

ISO Symbols Equivalent Alloy
UNS EN BS JIS IS WERKSTOFF NR.
CuZn39Sn1 C46400 CW719R - C4641 - 2.0485

C46400 Naval Brass Chemical Composition

  Cu Fe Pb Sn Zn
Min/Max 59.0 - 62.0 0.1 0.2 0.5 - 1.0 Rem
Nominals 60.0000 - - 0.7000 39.2000

C46400 Naval Brass Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
FLAT PRODUCTS
O50 0.04     68 62 30 - - - - - - - - - - 41 -
O50 1 0 TYP 20 427 207 - - 40 60 - - 57 - - - 283 - 0
O50 0.25     68 60 28 - - - - - - - - - - 41 -
O50 6.35 0 TYP 20 414 193 - - 45 58 - - 56 - - - 283 - 0
H01 0.04     68 70 58 - - - - - - - - - - 43 -
H01 1 0 TYP 20 483 400 - - 17 75 - - 68 - - - 296 - 0
M20 1     68 55 25 - - - - - - - - - - 40 -
M20 25.4 0 TYP 20 379 172 - - 50 55 - - 55 - - - 276 - 0
O60 0.25     68 58 25 - - - - - - - - - - 40 -
O60 6.35 0 TYP 20 400 172 - - 49 56 - - 55 - - - 276 - 0
ROD
H02 0.25     68 80 57 - - - - - - - - - - 45 -
H02 6.35 20 TYP 20 552 393 - - 20 85 - - - - - - 310 - 0
H01 1     68 69 46 - - - - - - - - - - 43 -
H01 25.4 8 TYP 20 476 317 - - 27 78 - - - - - - 296 - 0
O50 2.01     68 62 28 - - - - - - - - - - 42 -
O50 51 0 TYP 20 427 193 - - 43 60 - - - - - - 290 - 0
H02 1     68 75 53 - - - - - - - - - - 44 -
H02 25.4 20 TYP 20 517 365 - - 20 82 - - - - - - 303 - 0
O50 0.25     68 63 30 - - - - - - - - - - 42 -
O50 6.35 0 TYP 20 434 207 - - 40 60 - - - - - - 290 - 0
O60 2.01     68 56 25 - - - - - - - - - - 40 -
O60 51 0 TYP 20 386 172 - - 47 55 - - - - - - 276 - 0
H01 2.01     68 67 40 - - - - - - - - - - 43 -
H01 51 8 TYP 20 462 276 - - 35 75 - - - - - - 296 - 0
O50 1     68 63 30 - - - - - - - - - - 42 -
O50 25.4 0 TYP 20 434 207 - - 40 60 - - - - - - 290 - 0
O60 1     68 57 25 - - - - - - - - - - 40 -
O60 25.4 0 TYP 20 393 172 - - 47 55 - - - - - - 276 - 0
O60 0.25     68 58 27 - - - - - - - - - - 40 -
O60 6.35 0 TYP 20 400 186 - - 45 56 - - - - - - 276 - 0
H01 0.25     68 70 48 - - - - - - - - - - 43 -
H01 6.35 10 TYP 20 483 331 - - 25 80 - - - - - - 296 - 0
TUBE
H80 0     68 88 66 - - - - - - - - - - - -
H80 0 35 TYP 20 607 455 - - 18 95 - - - - - - - - 0

C46400 Naval Brass Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.8 ·10-6 per oF (68-572 F) 21.2 · 10-6 per oC (20-300 C)
Density 0.304 lb/in3 @ 68 F 8.41 gm/cm3 @ 20 C
Electrical Conductivity 26 %IACS @ 68 F 0.152 MegaSiemens/cm @ 20 C
Electrical Resistivity 39.9 ohms-cmil/ft @ 68 F 6.63 microhm-cm @ 20 C
Melting Point Liquid US 1650 F 899 C
Melting Point Solid US 1630 F 888 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulas of Rigidity 5600 ksi 38610 MPa
Specific Gravity 8.41 8.41
Specific Heat Capacity 0.09 Btu/lb/oF @ 68 F 377.1 J/kg oK at 293 K
Thermal Conductivity 67.0 Btu · ft/(hr · ft2 oF) @ 68 F 116.0 W/m oK at 20 C

C46400 marine brass sheet manufacturer, C46400 naval brass rods, C46400 naval brass, C46400 brass pipe, C46400 naval brass tubes, naval brass sheets, naval brass C46400 plates, C46400 naval brass coils, C46400 naval brass round bars, C46400 naval brass fittings, UNS C46400 marine brass supplier, C46400 corrosion resistant brass, C46400 seawater resistant brass, C46400 brass products manufacturer, C46400 brass tubing supplier, C46400 brass plate supplier in Mumbai, India.

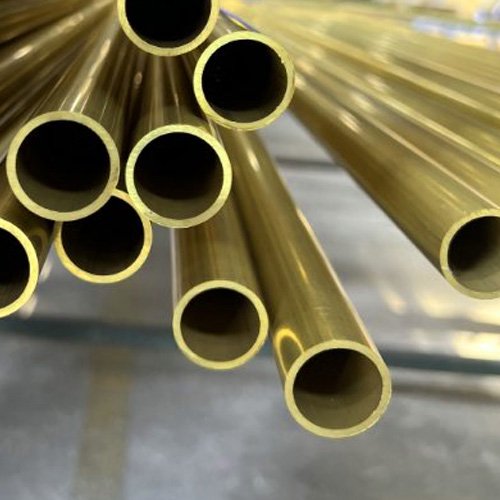

C46400 Naval Brass Pipes & Tubes

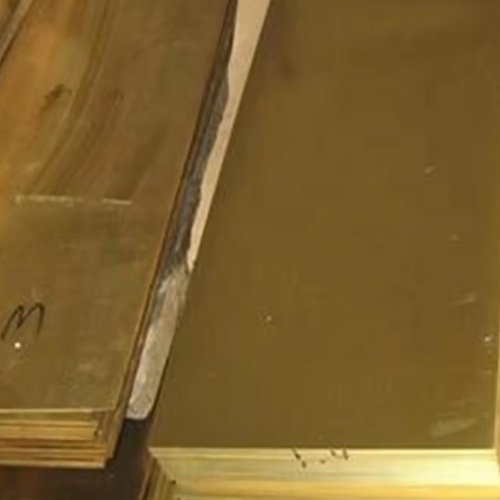

C46400 Naval Brass Sheets, Plates & Coils

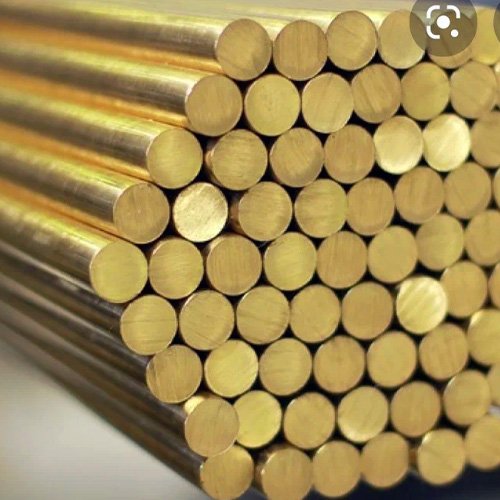

C46400 Naval Brass Round Bars

C46400 Naval Brass Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C46400 Naval Brass Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C46400 Naval Brass Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
