C63020 Nickel Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C63020 Nickel Aluminum Bronze Tubes, C63020 Nickel Aluminum Bronze Sheets & Plates, C63020 Nickel Aluminum Bronze Bars, CDA 630 Nickel Aluminum Bronze Sheets, C63020 Nickel Aluminum Bronze Pipes, CDA C630 Nickel Aluminum Bronze Coils, Supplier, C63020 Nickel Aluminum Bronze Plates, C63020 Nickel Aluminum Bronze, NAB Alloy Supplier, C63020 Pipes Tubes, Nickel Aluminum Bronze Plates, NAB Round Bars, Marine Bronze Pipe Fittings, Copper Aluminum Nickel Alloy Products in Mumbai, India.

Raninox Steel is a leading manufacturer & Supplier of C63020 Nickel Aluminum Bronze pipes, tubes, sheets, plates, coils, and round bars. C63020 Nickel Aluminum Bronze (NAB) is a high-strength copper alloy known for exceptional corrosion resistance, wear resistance, and superior mechanical performance in aggressive environments such as seawater, marine, chemical processing, and heavy-duty industrial applications.

Because of its excellent resistance to cavitation, erosion, and biofouling, C63020 is widely used in marine engineering, offshore oil & gas, pumps, valves, and desalination plants.

We supply seamless and welded C63020 Nickel Aluminum Bronze Pipes & Tubes manufactured according to international standards and suitable for pressure, marine, and heat-transfer applications. Our CDA C63020 Pipes has features such as High resistance to seawater corrosion, Anti-biofouling properties, Excellent fatigue strength & Suitable for high pressure & temperature systems

C63020 Sheets and Plates offer exceptional structural strength and corrosion resistance for heavy-duty applications such as Shipbuilding components, Marine hardware, Chemical processing equipment, Industrial machinery tc. Available in multiple thicknesses and finishes to meet specific project requirements.

C63020 (AMS 4640 - CDA 630) Nickel Aluminum Bronze alloy Bars & Rods is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion.

We provide a complete range of NAB C63020 Nickel Aluminum Bronze Pipe Fittings including elbows, tees, reducers, couplings, caps, and flanges. These fitting are Leak-proof performance, Corrosion resistant joints, Suitable for marine pressure lines.

Specifications for C63020 Nickel Aluminum Bronze

End Product Specification
Bar ASTM B150
Pipe ASTM B315
Rod ASTM B150
Sheets, Plates AMS 4590, ASTM B150
Tube ASTM B315

C63020 Nickel Aluminum Bronze Equivalent Grades

Specifications Designation
ISO CuAl0Ni5Fe4
European CuAl0Ni5Fe4
BS CA 104
JIS C 6301
Russian BrAZN10.4.4

C63020 Nickel Aluminum Bronze Chemical Composition

  Al Cr Co Cu Fe Pb Si Ni Sn Zn
Min/Max 10.0 - 11.0 0.05 0.2 74.5 min 4.0 - 5.5 0.03 1.5 4.2 - 6.0 0.25 0.3
Nominals 10.5 - - - 4.7 - - 5.1 - -

C63020 Nickel Aluminum Bronze Mechanical Properties

Properties Metric Values Imperial Values
Tensile Strength Min 760 N/mm² 110000 psi
Yield Strength Min 470 N/mm² 68000 psi
Elongation Min 10% 10%
Hardness Min 225 BHN 225 BHN

C63020 Nickel Aluminum Bronze Physical Properties

Property US Customary Metric
Melting point - liquidus 1940° to 1967 °F 1060° to 1075 °C
Density 0.274 lb/in3 at 68 °F 7.6 gm/cm3 at 20 °C
Specific gravity 7.6 7.6
Electrical Resistivity 132.33 ohms-cmil/ft at 68 °F 22.0 microhm-cm at 20 °C
Thermal conductivity 31.2 Btu/sq ft/ft hr/°F at 68 °F 54.0 W/m at 20 °C
Coefficient of thermal expansion 68-572 9.4 · 10-6 per °F (68-572 °F) 17.0 · 10-6 per °C (20-300 °C)

Dimensional Tolerances

Size Range Tolerance (mm) Tolerance (inch)
up to 1⁄2″ +/- 0.051 +/- 0.002
1⁄2″ to 1″ +/- 0.076 +/- 0.003
1″ to 2″ +/- 0.11 +/- 0.004
Above 2″ +/- 0.20% of the diameter +/- 0.20% of the diameter
Example of the over 2″ diameter tolerance: 2-1⁄2″ diameter x 0.002 (0.20%) = 0.005″ (0.13mm)

C63020 Nickel Aluminum Bronze Plates, CDA 630 Pipes Supplier, C63020 Nickel Aluminum Bronze Sheets & Plates, C63020 Nickel Aluminum Bronze Alloy Pipes Manufacturer, C63020 Nickel Aluminum Bronze Round Bars Supplier, CDA 630 Nickel Aluminum Bronze Coils, C63020 Nickel Aluminum Bronze Rods, C63020 Nickel Aluminum Bronze Tubes Supplier in Mumbai, India.

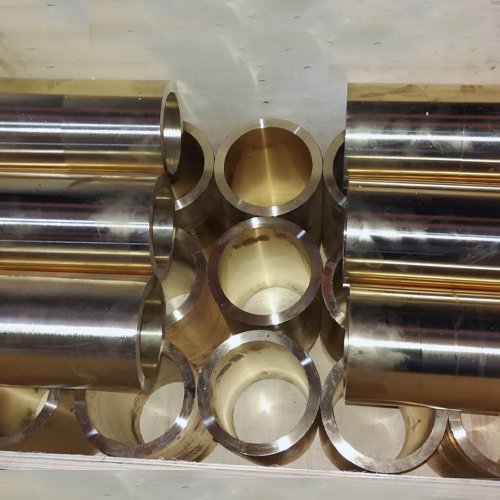

C63020 Nickel Aluminum Bronze Pipes & Tubes

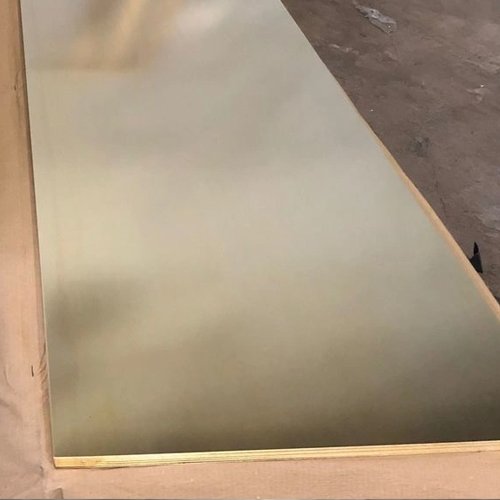

C63020 Nickel Aluminum Bronze Sheets, Plates & Coils

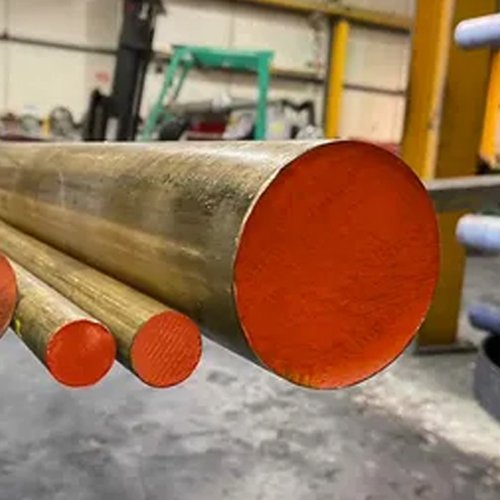

C63020 Nickel Aluminum Bronze Round Bars

C63020 Nickel Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C63020 Nickel Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C63020 Nickel Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

C63020 Nickel Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of C63020 Nickel Aluminum Bronze

C63020 Nickel Aluminum Bronze Plates Manufacturer C63020 Nickel Aluminum Bronze Slit Coils Supplier in India
CDA 630 Nickel Aluminum Bronze Pipes at Best Price in India C63020 Nickel Aluminum Bronze Hex Bars Stockists
CDA 630 Nickel Aluminum Bronze Strip Dealer in India CDA 630 Nickel Aluminum Bronze Sheets Plates Wholesaler
C63020 Nickel Aluminum Bronze Round Rod Dealer CDA 630 Nickel Aluminum Bronze ERW Pipes Manufacturer
C63020 Nickel Aluminum Bronze Rectangular Bars C63020 Nickel Aluminum Bronze Square Bars Supplier
CDA 630 Nickel Aluminum Bronze Coils Supplier in Mumbai CDA 630 Nickel Aluminum Bronze Condenser Tube Supplier
CDA 630 Nickel Aluminum Bronze Sheets Stockist C63020 Nickel Aluminum Bronze Pipes Supplier
Phosphor Bronze C52100 Forgins CDA 630 Nickel Aluminum Bronze Bolts Supplier
CDA 630 Nickel Aluminum Bronze Coils CDA 630 Nickel Aluminum Bronze Perforated Sheets Cut to Size
CDA 630 Nickel Aluminum Bronze Nut Sheet Supplier in India C63020 Nickel Aluminum Bronze Round Bars Supplier

C63020 Nickel Aluminum Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
