C63000 Nickel Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C63000 Nickel Aluminum Bronze Tubes, C63000 Nickel Aluminum Bronze Sheets & Plates, C63000 Nickel Aluminum Bronze Bars, CDA 630 Nickel Aluminum Bronze Sheets, C63000 Nickel Aluminum Bronze Pipes, CDA C630 Nickel Aluminum Bronze Coils, Supplier, C63000 Nickel Aluminum Bronze Plates, C63000 Nickel Aluminum Bronze Pipes, C63000 Nickel Aluminum Bronze Round Bars Supplier in Mumbai, India.

Raninox Steel is a leading manufacturer & Supplier of C63000 Nickel Aluminum Bronze pipes, tubes, sheets, plates, coils, and round bars. C63000 Nickel Aluminum Bronze (NAB) — also known as AMS 4640 / ASTM B150 Alloy C63000 — is a high-strength copper-based alloy designed for heavy-duty mechanical and corrosive environments, especially marine and offshore service.

We provide a wide array of C63000 Pipes & Tubes manufactured in accordance with international quality standards. C63000 Nickel Aluminum Bronze Pipes and Tubes are extensively employed in- Marine piping systems, Heat exchangers, Condensers, Offshore platforms, Desalination plant etc.

C63000 Sheets and Plates offer exceptional structural strength and corrosion resistance for heavy-duty applications such as Shipbuilding components, Marine hardware, Chemical processing equipment, Industrial machinery tc. Available in multiple thicknesses and finishes to meet specific project requirements.

C63000 (AMS 4640 - CDA 630) Nickel Aluminum Bronze alloy Bars & Rods is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion.

C63000 Nickel Aluminum Bronze Pipe Fittings are ideal for high-performance piping systems exposed to seawater and aggressive environments. They ensure leak-proof performance and long-term durability in marine and offshore systems.

Specifications for C63000 Nickel Aluminum Bronze

End Product Specification
Bar AMS 4640, ASME SB150, ASTM B150, FEDERAL QQ-C-450, SAE J463, J461
Bar, Forging ASTM B124
Bolts ASTM F468
Forgins, Die AMS 4640, ASTM B283, MILITARY MIL-B-16166
Nuts ASTM F467
Plate ASTM B171, FEDERAL QQ-C-450
Plate, Condenser Tube ASME SB171, ASTM B171
Rod AMS 4640, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes AMS 4640, ASTM B150, SAE J463, J461
Shapes, Forging ASTM B124
Sheet FEDERAL QQ-C-450
Strip FEDERAL QQ-C-450
Tube AMS 4640

C63000 Nickel Aluminum Bronze Equivalent Grades

Specifications Designation
ISO CuAl0Ni5Fe4
European CuAl0Ni5Fe4
BS CA 104
JIS C 6301
Russian BrAZN10.4.4

C63000 Nickel Aluminum Bronze Chemical Composition

Element Symbol Range % Nominal %
Aluminium Al 9.0-11.0 10.0
Iron Fe 2.0-4.0 3.0
Nickel Ni 4.0-5.0 5.0
Manganese Mn 1.5 maximum
Tin Sn 0.2 maximum
Zinc Zn 0.3 maximum
Silicon Si 0.25 maximum
Copper Cu Balance

C63000 Nickel Aluminum Bronze Mechanical Properties

Properties Metric Values Imperial Values
Tensile Strength Min 760 N/mm² 110000 psi
Yield Strength Min 470 N/mm² 68000 psi
Elongation Min 10% 10%
Hardness Min 225 BHN 225 BHN

C63000 Nickel Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 · 10-6 per oF (68-572 F) 16.2 · 10-6 per oC (20-300 C)
Density 0.274 lb/in3 @ 68 F 7.58 gm/cm3 @ 20 C
Electrical Conductivity 7 %IACS @ 68 F 0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity 116.0 ohms-cmil/ft @ 68 F 19.28 microhm-cm @ 20 C
Melting Point Liquid US 1930 F 1054 C
Melting Point Solid US 1895 F 1035 C
Modulas of Elasticity in Tension 17500 ksi 121000 MPa
Modulas of Rigidity 6400 ksi 44130 MPa
Specific Gravity 7.58 7.58
Specific Heat Capacity 0.09 Btu/lb/oF @ 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 22.6 Btu · ft/(hr · ft2 · oF) @ 68 F 39.1 W/m · oK at 20 C

Dimensional Tolerances

Size Range Tolerance (mm) Tolerance (inch)
up to 1⁄2″ +/- 0.051 +/- 0.002
1⁄2″ to 1″ +/- 0.076 +/- 0.003
1″ to 2″ +/- 0.11 +/- 0.004
Above 2″ +/- 0.20% of the diameter +/- 0.20% of the diameter
Example of the over 2″ diameter tolerance: 2-1⁄2″ diameter x 0.002 (0.20%) = 0.005″ (0.13mm)

C63000 Nickel Aluminum Bronze Plates, CDA 630 Pipes Supplier, C63000 Nickel Aluminum Bronze Sheets & Plates, C63000 Nickel Aluminum Bronze Alloy Pipes Manufacturer, C63000 Nickel Aluminum Bronze Round Bars Supplier, CDA 630 Nickel Aluminum Bronze Coils, C63000 Nickel Aluminum Bronze Rods, C63000 Nickel Aluminum Bronze Tubes Supplier in Mumbai, India.

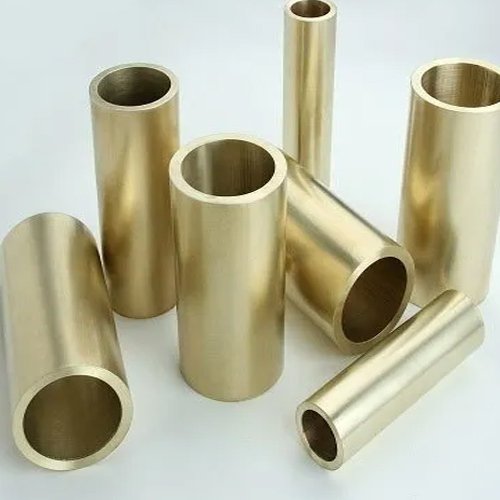

C63000 Nickel Aluminum Bronze Pipes & Tubes

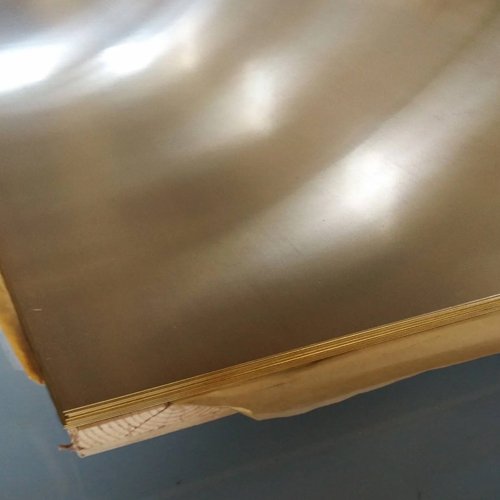

C63000 Nickel Aluminum Bronze Sheets, Plates & Coils

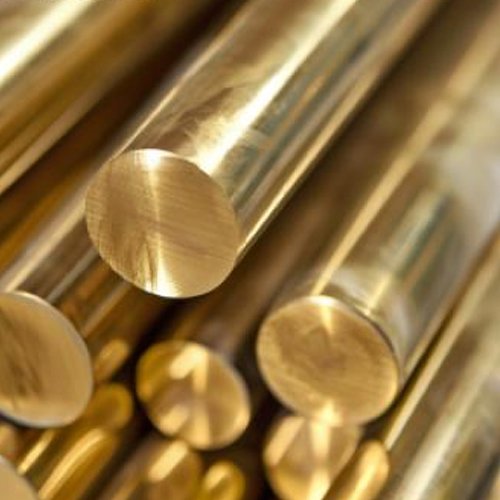

C63000 Nickel Aluminum Bronze Round Bars

C63000 Nickel Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C63000 Nickel Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C63000 Nickel Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

C63000 Nickel Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of C63000 Nickel Aluminum Bronze

C63000 Nickel Aluminum Bronze Plates Manufacturer C63000 Nickel Aluminum Bronze Slit Coils Supplier in India
CDA 630 Nickel Aluminum Bronze Pipes at Best Price in India C63000 Nickel Aluminum Bronze Hex Bars Stockists
CDA 630 Nickel Aluminum Bronze Strip Dealer in India CDA 630 Nickel Aluminum Bronze Sheets Plates Wholesaler
C63000 Nickel Aluminum Bronze Round Rod Dealer CDA 630 Nickel Aluminum Bronze ERW Pipes Manufacturer
C63000 Nickel Aluminum Bronze Rectangular Bars C63000 Nickel Aluminum Bronze Square Bars Supplier
CDA 630 Nickel Aluminum Bronze Coils Supplier in Mumbai CDA 630 Nickel Aluminum Bronze Condenser Tube Supplier
CDA 630 Nickel Aluminum Bronze Sheets Stockist C63000 Nickel Aluminum Bronze Pipes Supplier
Phosphor Bronze C52100 Forgins CDA 630 Nickel Aluminum Bronze Bolts Supplier
CDA 630 Nickel Aluminum Bronze Coils CDA 630 Nickel Aluminum Bronze Perforated Sheets Cut to Size
CDA 630 Nickel Aluminum Bronze Nut Sheet Supplier in India C63000 Nickel Aluminum Bronze Round Bars Supplier

C63000 Nickel Aluminum Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
