C53400 Phosphor Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C53400 Phosphor Bronze Pipes & Tubes, C53400 Phosphor Bronze Sheets & Plates, Best C53400 phosphor bronze manufacturer in India, C53400 Phosphor Bronze Coils, C53400 Phosphor Bronze Round Bars, C53400 Phosphor Bronze Pipe Fittings Suppliers in India Welded Tubes Supplier in Mumbai, India.

Raninox Steel is a trusted manufacturer and supplier of premium-quality C53400 Phosphor Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C53400 phosphor bronze is a copper-based alloy known for its strength, corrosion resistance, and excellent fatigue properties. It contains tin and phosphorus, which enhance durability and wear resistance.

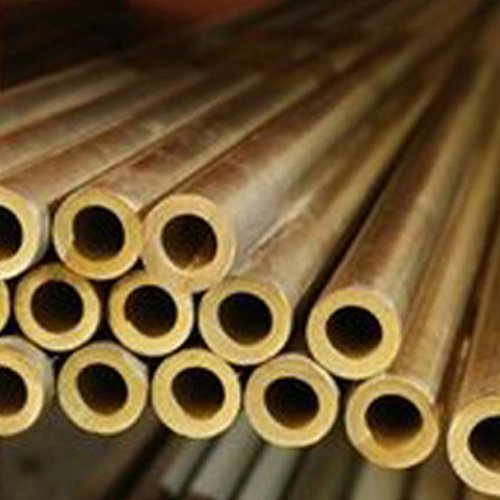

C53400 Phosphor Bronze Pipes & Tubes are known for excellent strength, wear resistance, and corrosion resistance. These products are suitable for demanding industrial applications where durability and consistent performance are essential. They are commonly used in marine, engineering, automotive, and fabrication industries.

Our C53400 Phosphor Bronze sheets are widely used in systems that demand strength and reliability. C53400 Phosphor Bronze Sheets offer a strong balance of formability, durability, and resistance to wear. They are widely used in precision components, electrical parts, and industrial fabrication.

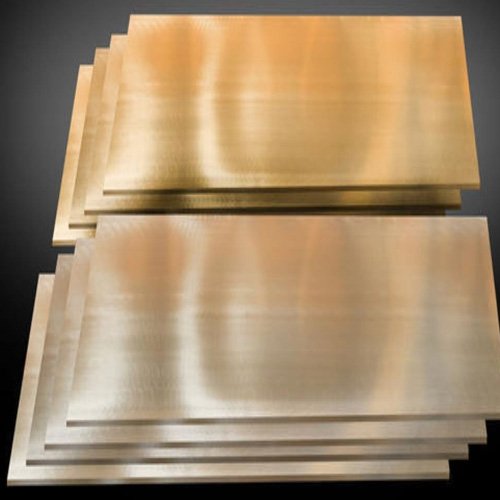

Our C53400 Phosphor Bronze Plates are manufactured for applications requiring toughness, stability, and resistance to friction. They are suitable for heavy-duty engineering and machine components. C53400 Phosphor Bronze Coils are ideal for manufacturers who need flexible, high-quality bronze material for continued processing. These coils offer excellent consistency and are used in multiple industrial sectors.

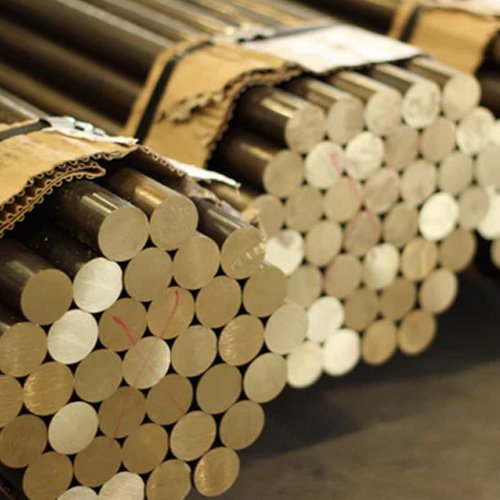

C53400 Phosphor Bronze Round Bars are widely used in precision engineering, fasteners, machine parts, and industrial components. They offer excellent machinability and strength.

C53400 Phosphor Bronze Pipe Fittings are designed for secure connections and reliable performance in demanding systems. They are commonly used where resistance to corrosion and long service life are important.

Specifications for C53400 Phosphor Bronze Pipes & Tubes

Standards ASTM / ASME
Size ½”NB – 24″NB
Schedule SCH 10 – SCH XXS
Type Seamless / ERW / Welded
Length Single Random, Double Random & Cut Length.
End Plain End, Beveled End, Treaded

Specifications for C53400 Phosphor Bronze Sheets, Plates & Coils

Specifications ASTM / ASME
Sheet thickness range from .008″ to .0125″
Size 15NB to 150NB In
Width 10mm – 2500mm
Length As Your Required
Purity ≥99.9% or 99.95%
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form Sheet, Shims.

Specifications for C53400 Phosphor Bronze Round Bars

Specifications ASTM / ASME
Dimensions EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Size 5 mm To 500 mm
Length 9 – 12 metres
Form Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Finish Cold drawn, Bright drawn, Centreless ground, Cold finished, Peeled and turned, Smooth turned, Slit rolled edge, Hot finished, Hot rolled, Rough turned/peeled, Peeled and reeled
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements

C53400 Phosphor Bronze Equivalent Grades

CDA ASTM SAE AMS Federal Military Other
C53400 B139 B139M J461 J463 4625

C53400 Phosphor Bronze Chemical Composition

CDA ASTM SAE AMS Federal Military Other
C53400 B139 B139M J461 J463 4625

C53400 Phosphor Bronze Mechanical Properties

Copper alloy UNS no. Machinability rating Density (lb / in³ at 68 °F)
C53400 20 0.320

C53400 Phosphor Bronze Physical Properties

Properties US Customary Metric
Melting point - liquidus 1920 °F 1049 °C
Melting point - solidus 1750 °F 954 °C
Density 0.32 lb/in³ at 68 °F 8.86 gm/cm³ at 20 °C
Specific gravity 8.86 8.86
Electrical conductivity 15% IACS at 68 °F 0.088 MegaSiemens/cm at 20 °C
Thermal conductivity 40 Btu/sq ft/ft hr/°F at 68 °F 69.2 W/m at 20 °C
Coefficient of thermal expansion 68-572 9.9 · 10-6 per °F (68-572 °F) 17.1 · 10-6 per °C (20-300 °C)
Specific heat capacity 0.09 Btu/lb/°F at 68 °F 377.1 J/kg at 20 °C
Modulus of elastic in tension 16000 ksi 110310 MPa
Modulus of Rigidity 6000 ksi 41370 MPa

best C53400 Phosphor Bronze supplier, C53400 Phosphor Bronze products for marine applications, buy C53400 Phosphor Bronze sheets and plates, custom C53400 Phosphor Bronze round bars, Buy durable C53400 Phosphor Bronze round bars, industrial C53400 bronze manufacturer, Precision-made C53400 Phosphor Bronze pipe fittings, C53400 Phosphor Bronze coils supplier, C53400 Phosphor Bronze Supplier in Mumbai, India.

C53400 Phosphor Bronze Pipes & Tubes

C53400 Phosphor Bronze Sheets, Plates & Coils

C53400 Phosphor Bronze Round Bars

C53400 Phosphor Bronze Sheets & Plates Size Chart

Dimension Category Typical Range / Options
Thickness (Sheet / Plate) 0.1 mm – ~120 mm (some suppliers up to ~200 mm)
Width 10 mm – 2500 mm+ (wide sheets/plates up to ~3500 mm in some stocks)
Length Common: 2000 mm, 2440 mm, 3000 mm (others available to requirement)
Standard Sheet Sizes 1000 × 2000 mm, 1220 × 2440 mm, 1500 × 3000 mm, 2000 × 2000 mm, 2000 × 4000 mm
Plate Formats Sheet, Plate, Coils, Foils, Rolls, Flat Sheets, Flat Shims, Strips
Custom Lengths / Sizes Available upon request from mill/stockholder
Finish / Surface Hot rolled, cold rolled, 2B, 2D, BA (No.8), satin, mirror, etc.

C53400 Phosphor Bronze Pipes & Tubes Size

Metric OD Wall Thickness Imperial OD Wall Thickness Nominal Bore mm WT / Metre
4.76MM  0.71MM 3/16″OD 22G 3.34 0.077
6.35MM  1.63MM 1/4″OD 16G 3.09 0.206
6.35MM  1.22MM 1/4″OD 18G 3.91 0.167
6.35MM  0.91MM 1/4″OD 20G 4.53 0.133
7.94MM  0.91MM 5/16″OD 20G 6.11 0.172
9.52MM  1.63MM 3/8″OD 16G 6.26 0.345
9.52MM  1.22MM 3/8″OD 18G 7.08 0.271
9.52MM  0.91MM 3/8″OD  20G 7.70 0.210
12.7MM  1.63MM 1/2″OD 16G 9.44 0.484
12.7MM  1.22MM 1/2″OD 18G 10.26 0.375
12.7MM  0.91MM 1/2″OD 20G 10.88 0.288
14.29MM  0.91MM 9/16″OD 20G 12.47 0.550
15.88MM  1.63MM 5/8″OD 16G 12.62 0.622
15.88MM  1.22MM 5/8″OD 18G 13.44 0.479
15.88MM  0.91MM 5/8″OD 20G 14.06 0.365
19.05MM  3.25MM 3/4″OD 10G 12.55 1.376
19.05MM  1.63MM 3/4″OD 16G 15.79 0.761
19.05MM  1.22MM 3/4″OD 18G 16.61 0.583
19.05MM  0.91MM 3/4″OD 20G 17.23 0.442
22.22MM  1.63MM 7/8″OD 16G 18.96 0.899
22.22MM  1.22MM 7/8″OD 18G 19.78 0.687
25.4MM  1.63MM 1″OD 16G 22.14 1.038
25.4MM  1.22MM 1″OD 18G 22.96 0.791
25.4MM  0.91MM 1″OD 20G 23.00 0.597
28.58MM  1.63MM 1-1/8″OD 16G 25.32 1.177
31.75MM  1.63MM 1-1/4″OD 16G 28.49 1.316
31.75MM  1.22MM 1-1/4″OD 18G 29.31 0.998
34.92MM  1.63MM 1-3/8″OD 16G 31.66 1.454
38.1MM  3.25MM 1-1/2″OD 10G 31.60 3.040
38.1MM  1.63MM 1-1/2″OD 16G 34.84 1.593
38.1MM  1.22MM 1-1/2″OD 18G 35.66 1.206
44.45MM  3.25MM 1-3/4″OD 10G 37.95 3.600
44.45MM  1.22MM 1-3/4″OD 18G 42.01 1.410
50.8MM  3.25MM 2″OD 10G 44.30 4.140
50.8MM  1.63MM 2″OD 16G 47.54 2.418
50.8MM  1.22MM 2″OD 18G 48.36 1.621
57.2MM  3.25MM 2-1/4″OD 10G 50.70 4.700
63.5MM  3.25MM 2-1/2″OD 10G 57.00 5.248
63.5MM  1.63MM 2-1/2″OD 16G 60.24 2.703
69.85MM  3.25MM 2-3/4″OD 10G 63.35 5.810
76.2MM  3.25MM 3″OD 10G 69.70 6.354
82.55MM  3.25MM 3-1/4″OD 10G 76.05 6.910
88.90MM  3.25MM 3-1/2″OD 10G 82.40 7.460
95.25MM  3.25MM 3-3/4″OD 10G 88.75 8.020
107.95MM  3.25MM 4-1/4″OD 10G 101.45 9.670
133.5MM  3.25MM 5″ID 10G 127.00 11.800
158.9MM  3.25MM 6″ID 10G 152.40 13.900

C53400 Phosphor Bronze Round Bars Size

Size Table in MM Chucked true to Outside Dia in MM Chucked true to Inside Dia in MM and Inch
Outside Dia,
Millimeter		 Inside Dia,
Millimeter		 Maximum Outside Dia,
Millimeter		 Minimum. Inside Dia,
Millimeter		 Maximum Outside Dia,
Inches.		 Minimum. Inside Dia,
Inches		 Maximum Outside Dia,
Millimeter		 Minimum. Inside Dia,
Millimeter		 Maximum Outside Dia,
Inches		 Minimum. Inside Dia,
Inches
32 20 31 21.9 1.220 0.862 30 21 1.185 0.827
32 16 31 18 1.220 0.709 30 17 1.181 0.669
36 25 35 26.9 1.378 1.059 34.1 26 1.343 1.024
36 20 35 22 1.378 0.866 34 21 1.339 0.827
36 16 35 18.1 1.378 0.713 33.9 17 1.335 0.669
40 28 39 29.9 1.535 1.177 38.1 29 1.500 1.142
40 25 39 27 1.535 1.063 38 26 1.496 1.024
40 20 39 22.1 1.535 0.870 37.9 21 1.492 0.827
45 32 44 33.9 1.732 1.335 43.1 33 1.697 1.299
45 28 44 30 1.732 1.181 43 29 1.693 1.142
45 20 44 22.2 1.732 0.874 42.8 21 1.685 0.827
50 36 49 38 1.929 1.496 48 37 1.890 1.457
50 32 49 34.1 1.929 1.343 47.9 33 1.886 1.299
50 25 49 27.2 1.929 1.071 47.8 26 1.882 1.024
56 40 55 42 2.165 1.654 54 41 2.126 1.614
56 36 55 38.1 2.165 1.500 53.9 37 2.122 1.457
56 28 55 30.3 2.165 1.193 53.7 29 2.114 1.142
63 50 62 51.9 2.441 2.043 61.1 51 2.406 2.008
63 45 62 47 2.441 1.850 61 46 2.402 1.811
63 40 62 42.2 2.441 1.661 60.8 41 2.394 1.614
63 36 62 38.3 2.441 1.508 60.7 37 2.390 1.457
63 32 62 34.4 2.441 1.354 60.6 33 2.386 1.299
71 56 69.9 58 2.752 2.283 68.9 57 2.713 2.244
71 45 69.9 47.3 2.752 1.862 68.6 46 2.701 1.811
71 40 69.9 42.4 2.752 1.669 68.5 41 2.697 1.614
71 36 69.9 38.5 2.752 1.516 68.4 37 2.693 1.457
75 60 73.8 62 2.906 2.441 72.8 61 2.866 2.402
75 50 73.8 52.2 2.906 2.055 72.6 51 2.858 2.008
75 40 73.8 42.5 2.906 1.673 72.3 41 2.846 1.614
80 63 78.8 65 3.102 2.559 77.8 64 3.063 2.520
80 50 78.8 52.4 3.102 2.053 77.4 51 3.047 2.008
80 45 78.8 47.5 3.102 1.870 77.3 46 3.043 1.811
80 40 78.8 42.6 3.102 1.677 77.2 41 3.039 1.614
85 67 83.7 69.1 3.295 2.720 82.6 68 3.252 2.677
85 55 83.7 57.4 3.295 2.260 82.3 56.0 3.240 2.205
85 45 83.7 47.6 3.295 1.874 82.1 46.0 3.232 1.811
90 71 88.6 73.1 3.488 2.878 87.6 72.1 3.449 2.839
90 63 88.6 65.3 3.488 2.571 87.3 64.0 3.437 2.520
90 56 88.6 58.5 3.488 2.303 87.1 57.0 3.429 2.244
90 50 88.6 52.6 3.488 2.071 87.0 51.0 3.425 2.008
95 75 93.5 77.3 3.681 3.041 92.4 76.2 3.641 2.997
95 67 93.5 69.3 3.681 2.728 92.2 68.0 3.630 2.677
95 50 93.5 52.7 3.681 2.075 91.8 51.0 3.614 2.008
100 80 98.5 82.3 3.878 3.240 97.4 81.2 3.835 3.197
100 71 98.5 73.4 3.878 2.890 97.2 72.1 3.827 2.839
100 63 98.5 65.5 3.878 2.579 97.0 64.0 3.819 2.520
100 56 98.5 58.7 3.878 2.311 96.8 57.0 3.811 2.244
106 80 104.4 82.5 4.110 3.248 103.1 81.2 4.059 3.197
106 71 104.4 73.5 4.110 2.894 103.0 72.1 4.055 2.839
106 63 104.4 65.7 4.110 2.587 102.7 64.0 4.043 2.520
106 56 104.4 58.9 4.110 2.319 102.5 57.0 4.035 2.244
112 90 110.3 92.5 4.343 3.642 109.2 91.4 4.299 3.598
112 80 110.3 82.6 4.343 3.252 108.9 81.2 4.287 3.197
112 71 110.3 73.7 4.343 2.902 108.7 72.1 4.280 2.839
112 63 110.3 65.8 4.343 2.591 108.5 64.0 4.272 2.520
118 90 116.2 92.7 4.575 3.650 114.9 91.4 4.524 3.598
118 80 116.2 82.8 4.575 3.260 114.6 81.2 4.512 3.197
118 71 116.2 73.8 4.575 2.906 114.5 72.1 4.508 2.839
118 63 116.2 66.0 4.575 2.598 114.2 64.0 4.496 2.520
125 100 123.1 102.7 4.846 4.043 121.9 101.5 4.799 3.996
125 90 123.1 92.8 4.846 3.654 121.7 91.4 4.791 3.598
125 80 123.1 82.9 4.846 3.264 121.4 81.2 4.780 3.197
125 71 123.1 74.0 4.846 2.913 121.3 72.1 4.772 2.839
132 106 130.0 108.8 5.118 4.283 128.8 107.6 5.071 4.236
132 90 130.0 93.0 5.118 3.661 128.4 91.4 5.055 3.598
132 80 130.0 83.1 5.118 3.272 128.1 81.2 5.043 3.197
132 71 130.0 74.2 5.118 2.921 121.2 72.1 5.035 2.839
140 112 137.9 115 5.429 4.528 136.6 113.7 5.378 4.476
140 100 137.9 103.1 5.429 4.059 136.3 101.5 5.366 3.996
140 90 137.9 93.2 5.429 3.669 136.1 91.4 5.358 3.598
140 80 137.9 83.3 5.429 3.280 135.8 81.2 5.346 3.197
