C67400 Manganese Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C67400 Manganese Bronze Tubes, C67400 Manganese Bronze Sheets & Plates, C67400 Manganese Bronze Bars, CDA C67400 Manganese Bronze Sheets, C67400 Manganese Bronze Coil, Silicon Bronze Pipe Tube, Marine Grade Manganese Bronze, High Strength Bronze Alloy, Industrial Bronze Supplier, C67400 Bronze Price, C67400 Bronze Stockist, Copper Zinc Manganese Alloy Supplier in Mumbai, India.

Raninox Steel is a reputable manufacturer and supplier of high-quality C67400 Manganese Bronze pipes, tubes, sheets, plates, coils, round bars, and pipe fittings. We offer precision-engineered products with superior strength, corrosion resistance, and endurance for industrial applications all around the world.

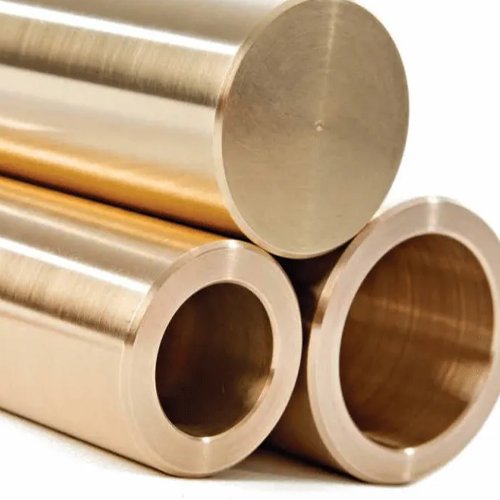

We offer high-performance C67400 Manganese Bronze Pipes and Tubes with exceptional strength, wear resistance, and corrosion protection. It is widely used in marine and industrial applications where materials must withstand harsh conditions.

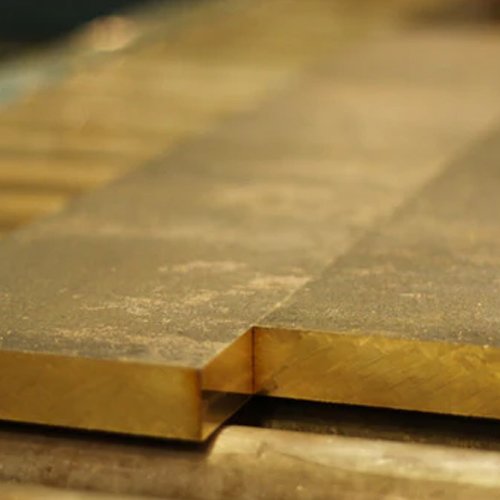

Our C67400 Manganese Bronze Sheets are precisely manufactured to give superior surface polish, strength, and formability. These sheets are ideal for fabrication projects, industrial components, and applications requiring consistent bronze performance.

We provide C67400 Manganese Bronze Plates, which are known for their strength, wear resistance, and machinability. These plates are commonly used in heavy-duty engineering, marine components, and industrial applications where long-term material performance is critical.

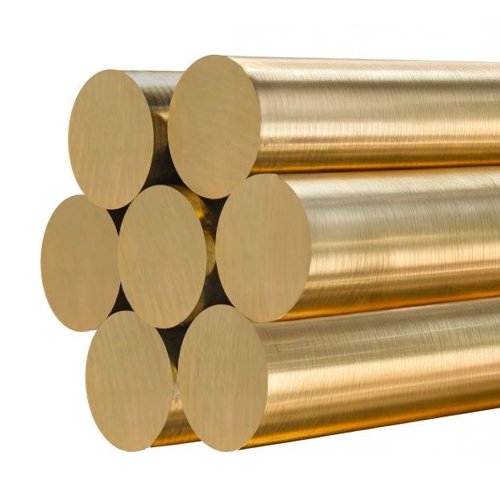

C67400 Manganese Bronze Round Bars are used for machining, turning, and manufacturing. These bars are ideal for manufacturing shafts, bolts, fittings, and other precision items that require both strength and corrosion resistance.

Our C67400 Manganese Bronze Pipe Fittings are designed for reliable connections and long-term performance in pipe systems. They are excellent for nautical, chemical, and industrial applications that require high durability and leak resistance.

Specifications for C67400 Manganese Bronze

End Product Specification
Bar SAE J461, J463
Forgings SAE J461, J463
Rod SAE J463, J461
Shapes SAE J463, J461

C67400 Manganese Bronze Equivalent Grades

Specifications Designation
ASTM B249
UNS C67400
SAE J461, J463
ISO CuZn35Mn3Pb2Si1

C67400 Manganese Bronze Chemical Composition

  Al Cu Fe Pb Mn Ni Si Sn Zn
Min/Max 0.50 - 2.0 57.0 - 60.0 0.35 0.5 2.0 - 3.5 0.25 0.50 - 1.5 0.3 Rem
Nominals 1.2000 58.5000 - - 2.8000 - 1.0000 - 36.5000

C67400 Manganese Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
Bar
M30 0     68 78 38 - - - - - - - - - - - -
M30 0 0 TYP 20 538 262 - - 26 78 - - - - - - - - 0
HR02 0     68 85 45 - - - - - - - - - - - -
HR02 0 0 TYP 20 586 310 - - 24 83 - - - - - - - - 0
Rod
HR02 0.75     68 92 55 - - - - - - - - - - 48 29
HR02 19 0 TYP 20 634 379 - - 20 87 - - - - - - 331 200 0
O60 0.75     68 70 34 - - - - - - - - - - - -
O60 19 0 TYP 20 483 234 - - 28 78 - - - - - - - - 0

C67400 Manganese Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.0 · 10-6 per oF (68-572 F) 19.8 · 10-6 per oC (20-300 C)
Density 0.292 lb/in3 at 68 F 8.08 gm/cm3 @ 20 C
Electrical Conductivity 23 %IACS @ 68 F 0.135 MegaSiemens/cm @ 20 C
Electrical Resistivity 45.1 ohms-cmil/ft @ 68 F 7.5 microhm-cm @ 20 C
Melting Point - Liquidus 1625 F 885 C
Melting Point - Solidus 1590 F 866 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Modulus of Rigidity 6000 ksi 41370 MPa
Specific Gravity 8.08 8.08
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg/ · oK at 293 K
Thermal Conductivity 58.0 Btu · ft/(hr · ft2 · oF) at 68F 100.4 W/m · oK at 20 C

C67400 Manganese Bronze Supplier, C67400 Manganese Bronze Manufacturer, C67400 Manganese Bronze Exporter, C67400 Bronze Pipes, C67400 Bronze Tubes, C67400 Bronze Sheets, C67400 Bronze Plates, C67400 Bronze Coils, C67400 Bronze Round Bars, Manganese Bronze ASTM B505, Manganese Bronze ASTM B584 Bars in Mumbai, India.

C67400 Manganese Bronze Pipes & Tubes

C67400 Manganese Bronze Sheets, Plates & Coils

C67400 Manganese Bronze Round Bars

C67400 Manganese Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C67400 Manganese Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C67400 Manganese Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
