C67410 Manganese Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C67410 Manganese Bronze Tubes, C67410 Manganese Bronze Sheets & Plates, C67410 Manganese Bronze Bars, CDA C67410 Manganese Bronze Sheets, C67410 Manganese Bronze Coil, Silicon Bronze Pipe Tube, Marine Grade Manganese Bronze, High Strength Bronze Alloy, Industrial Bronze Supplier, C67410 Bronze Price, C67410 Bronze Stockist, Copper Zinc Manganese Alloy Supplier in Mumbai, India.

Raninox Steel is an established manufacturer and supplier of high-quality C67410 Manganese Bronze pipes, tubes, sheets, plates, coils, round bars, and pipe fittings. We provide precision-engineered products with exceptional strength, corrosion resistance, and durability for industrial applications all around the world.

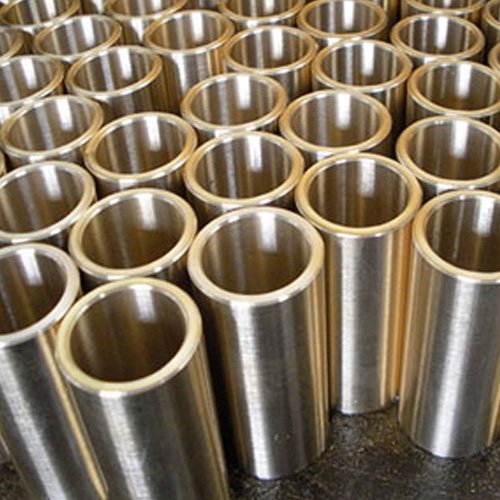

We provide high-quality C67410 Manganese Bronze Pipes & Tubes with superior strength, wear resistance, and corrosion protection. It is commonly utilized in marine and industrial applications requiring materials to survive extreme environments.

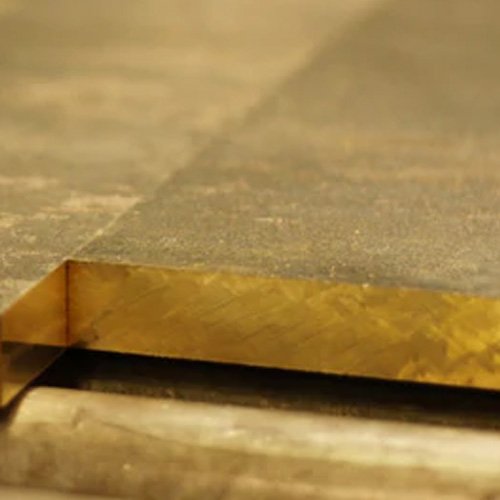

Our C67410 Manganese Bronze Sheets & Plates are precisely engineered to provide excellent surface polish, strength, and formability. These sheets are perfect for fabrication projects, industrial components, and applications that need consistent bronze performance.

We provide C67410 Manganese Bronze Coils, which are noted for their strength, wear resistance, and machinability. These plates are widely utilized in heavy-duty engineering, marine components, and industrial applications requiring long-term material performance.

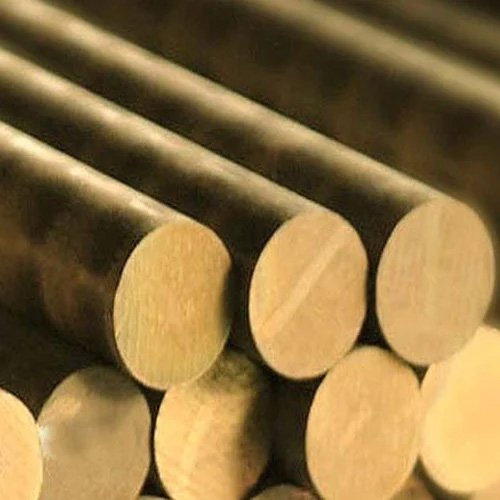

C67410 Manganese Bronze Round Bars are suitable for machining, turning, and manufacturing. These bars are perfect for producing shafts, bolts, fittings, and other precision items that need both strength and corrosion resistance.

Our C67410 Manganese Bronze Pipe Fittings are designed to provide dependable connections and long-term performance in pipe systems. They are ideal for marine, chemical, and industrial applications requiring great durability and leak resistance.

Specifications for C67410 Manganese Bronze

End Product Specification
Bar SAE J461, J463
Forgings SAE J461, J463
Rod SAE J463, J461
Shapes SAE J463, J461

C67410 Manganese Bronze Equivalent Grades

Specifications Designation
ASTM B249
UNS C67410
SAE J461, J463
ISO CuZn35Mn3Pb2Si1

C67410 Manganese Bronze Chemical Composition

  Al Cu Fe Pb Mn Ni Si Sn Zn
Min/Max 1.3 - 2.3 55.5 - 59.0 1 0.8 1.0 - 2.4 2 0.3 - 1.0 0.5 Rem
Nominals - - - - - - - - -

C67410 Manganese Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
H04 0.56         60 - - - - - - - - - - - -
H04 14.3 0 TYP     414 - - 17 160 - - - - - - - - 0

C67410 Manganese Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.0 · 10-6 per oF (68-572 F) 19.8 · 10-6 per oC (20-300 C)
Density 0.292 lb/in3 at 68 F 8.08 gm/cm3 @ 20 C
Electrical Conductivity 23 %IACS @ 68 F 0.135 MegaSiemens/cm @ 20 C
Electrical Resistivity 45.1 ohms-cmil/ft @ 68 F 7.5 microhm-cm @ 20 C
Melting Point - Liquidus 1625 F 885 C
Melting Point - Solidus 1590 F 866 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Modulus of Rigidity 6000 ksi 41370 MPa
Specific Gravity 8.08 8.08
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg/ · oK at 293 K
Thermal Conductivity 58.0 Btu · ft/(hr · ft2 · oF) at 68F 100.4 W/m · oK at 20 C

C67410 Manganese Bronze Supplier, C67410 Manganese Bronze Manufacturer, C67410 Manganese Bronze Exporter, C67410 Bronze Pipes, C67410 Bronze Tubes, C67410 Bronze Sheets, C67410 Bronze Plates, C67410 Bronze Coils, C67410 Bronze Round Bars, Manganese Bronze ASTM B505, Manganese Bronze ASTM B584 Bars in Mumbai, India.

C67410 Manganese Bronze Pipes & Tubes

C67410 Manganese Bronze Sheets, Plates & Coils

C67410 Manganese Bronze Round Bars

C67410 Manganese Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C67410 Manganese Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C67410 Manganese Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
