C69430 Silicon Red Brass Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C69430 Silicon Red Brass, Silicon Red Brass Pipes Supplier, C69430 Tubes Manufacturer India, Silicon Red Brass Sheets Supplier, Brass Pipe Fittings Manufacturer, C69430 Silicon Red Brass supplier, C69430 Silicon Red Brass manufacturer, C69430 Silicon Red Brass pipes and tubes, C69430 Silicon Red Brass sheets, C69430 Silicon Red Brass plates, C69430 Silicon Red Brass coils, C69430 Silicon Red Brass round bars, C69430 Silicon Red Brass pipe fittings in Mumbai, India.

Raninox Steel is a trusted manufacturer and supplier of C69430 Silicon Red Brass products, delivering precision-made pipes & tubes, sheets, plates, coils, round bars, and pipe fittings for demanding industrial applications. Built for strength, corrosion resistance, and reliable performance, our copper alloy products are supplied with consistent quality, accurate dimensions, and dependable service for domestic and international buyers.

C69430 pipes and tubes engineered for dependable flow, fabrication, and component manufacturing. These products are suitable for pressure-related assemblies, industrial piping, and custom engineering applications.

Our C69430 Silicon Red Brass sheets & plates are supplied for fabrication, machining, forming, and industrial part production. They offer stable performance and are ideal for projects requiring dimensional precision and corrosion resistance. C69430 Coils are available for continuous processing, deep drawing, forming, and production lines where uniformity and consistency are important.

Our C69430 Silicon Red Brass Round Bars are widely used for machined parts and mechanical components that must combine strength and corrosion resistance. Our round bars are supplied for machining valve stems, fasteners, shafts, turned parts, and precision industrial components.

We manufacture C69430 Silicon Red Brass Pipe Fittings which are used for dependable jointing and system integration. The alloy's corrosion resistance and joining compatibility make it ideal for demanding industrial piping.

Specifications for C69430 Silicon Red Brass

End Product Specification
Standard ASTM B371/B371M
Pipe & Tubes Size: 1/2” to 24” | Thickness: 0.5mm – 20mm | Length: Up to 6 meters
Sheets, Plates & Coils Width: Up to 2000mm | Thickness: 0.5 mm – 100 mm | Length: Custom sizes available | Finish: Hot Rolled / Cold Rolled
Round Bars Diameter: 5mm – 500mm | Length: 1m / 6m | Finish: Bright / Black
Fittings Elbows, Tees, Reducers, Couplings

C69430 Silicon Red Brass Equivalent Grades

STANDARD WERKSTOFF NR. UNS EN INDIAN ISO BS Common Name
ASTM B584, ASTM B763, ASME SB584, ASME SB763 - C69430 EN 12165 / EN 12167 CW724R IS 11109 Grade I. CuZn15Si4As BS 2874 CZ122 (Silicon Red Brass) Silicon Red Brass, High Strength Brass, CuZn18Si2 Brass

C69430 Silicon Red Brass Chemical Composition

  As Cu Fe Pb Si Zn
Min/Max 0.03 - 0.06 80.0 - 83.0 0.2 0.3 3.5 - 4.5 Rem
Nominals 0.0400 81.5000 - - 4.0000 14.5000

C69430 Silicon Red Brass Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
Rod
O60 2     68 80 40 - - - - - - - - - - - -
O60 50.8 0 TYP 20 552 276 - - 25 85 - - - - - - - - 0
O60 0.5     68 90 45 - - - - - - - - - - - -
O60 12.7 0 TYP 20 621 310 - - 20 85 - - - - - - - - 0
O60 1     68 85 43 - - - - - - - - - - - -
O60 25.4 0 TYP 20 586 296 - - 25 85 - - - - - - - - 0
H04 0.75     68 100 57 - - - - - - - - - - - -
H04 19.1 0 TYP 20 689 393 - - 21 95 - - - - - - - - 0

C69430 Silicon Red Brass Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.2 ·10-6 per oF (68-572 F) 20.2 ·10-6 per oC (20-300 C)
Density 0.26 lb/in3 at 68 F 8.19 gm/cm3 @ 20 C
Electrical Conductivity 6 %IACS @ 68 F 0.036 MegaSiemens/cm @ 20 C
Electrical Resistivity 167.0 ohms-cmil/ft @ 68 F 27.76 microhm-cm @ 20 C
Melting Point - Liquidus 1685 F 918 C
Melting Point - Solidus 1510 F 819 C
Modulas of Elasticity in Tension 16000 ksi 110000 Mpa
Specific Gravity 8.19 8.19
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 15.0 Btu · ft/(hr · ft2 · oF) at 68F 26.0 W/m · oK at 20 C

C69430 Silicon Red Brass Sheets Supplier, C69430 Pipes and Tubes, C69430 Sheets and Plates, C69430 Round Bars, C69430 Pipe Fittings, Silicon Red Brass Supplier, C69430 Silicon Red Brass Manufacturer C69430 Silicon Red Brass sheets and plates supplier, C69430 Silicon Red Brass round bars manufacturer, custom C69430 pipe fittings supplier, Exporter in Mumbai, India.

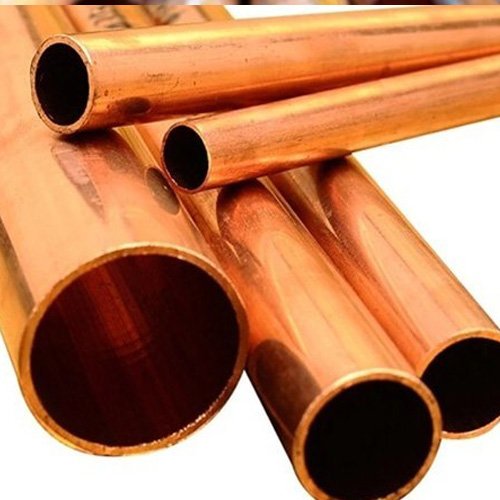

C69430 Silicon Red Brass Pipes & Tubes

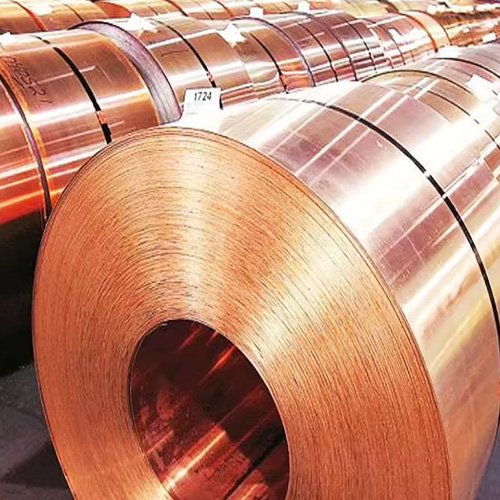

C69430 Silicon Red Brass Sheets, Plates & Coils

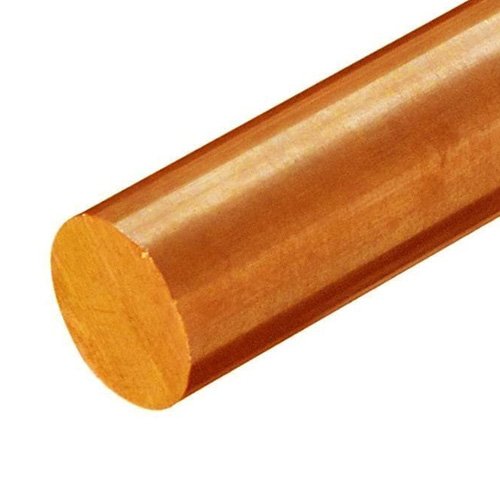

C69430 Silicon Red Brass Round Bars

C69430 Silicon Red Brass Sheets & Plates Size Chart

Brass Sheet Size Chart
Sizes Weight
(Millimeter) (kg/sheet)
2000 * 600 * 0.4 4.1
2000 * 600 * 0.5 5.14
2000 * 600 * 0.6 6.15
2000 * 600 * 0.8  8.19
2000 * 600 * 1.0 10.3
2000 * 600 * 1.2 12.2
2000 * 600 * 1.5 15.45
2000 * 600 * 2.0 20.52
2000 * 600 * 2.5 25.6
2000 * 600 * 3.0 30.72
1800 * 900 * 3.0 41.49
1800 * 900 * 5.0 69.09
2000 * 1000 * 6.0 103.2

C69430 Silicon Red Brass Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C69430 Silicon Red Brass Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154

Types Of C69430 Silicon Red Brass

C69430 Silicon Red Brass Plates Manufacturer C69430 Silicon Red Brass Slit Coils Supplier in India
CDA C69430 Silicon Red Brass Pipes at Best Price in India C69430 Silicon Red Brass Hex Bars Stockists
CDA C69430 Silicon Red Brass Strip Dealer in India CDA C69430 Silicon Red Brass Sheets Plates Wholesaler
C69430 Silicon Red Brass Round Rod Dealer CDA C69430 Silicon Red Brass ERW Pipes Manufacturer
C69430 Silicon Red Brass Rectangular Bars C69430 Silicon Red Brass Square Bars Supplier
CDA C69430 Silicon Red Brass Coils Supplier in Mumbai CDA C69430 Silicon Red Brass Condenser Tube Supplier
CDA C69430 Silicon Red Brass Sheets Stockist C69430 Silicon Red Brass Pipes Supplier
C69430 Silicon Red Brass Forgins CDA C69430 Silicon Red Brass Bolts Supplier
CDA C69430 Silicon Red Brass Coils CDA C69430 Silicon Red Brass Perforated Sheets Cut to Size
CDA C69430 Silicon Red Brass Sheet Exporter C69430 Silicon Red Brass Round Bars Supplier
C69430 Silicon Red Brass Pipe Fittings Supplier ASTM B135 C69430 Silicon Red Brass Products
C69430 Silicon Red Brass Alloy Supplier Red Brass C23400 Flat Bars
CDA 230 Red Brass Sheet Supplier CDA 230 Red Brass Round Bars

C69430 Silicon Red Brass Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
