C26000 Yellow Brass Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C26000 Yellow Brass Tubes, Yellow Brass Alloy Manufacturer, cartridge brass 70/30 round bar, copper zinc alloy bars, C26000 Brass Round Bars, C26000 Yellow Brass, 70 30 Brass Supplier, C26000 Brass Rods, C26000 Brass Tubes, C26000 brass Sheets in Mumbai, India.

Raninox Steel is leading supplier and exporter of C26000 Yellow Brass Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. C26000 Yellow Brass (also known as Cartridge Brass 70/30) is a premium copper-zinc alloy composed of approximately 70% copper and 30% zinc. It offers an excellent balance of strength, ductility, corrosion resistance, and superior cold-working properties.

Our C26000 brass pipes and tubes offer excellent corrosion resistance and formability, making them ideal for fluid handling and heat exchange applications such as Heat exchangers, Plumbing components, Condenser tubes, Industrial piping systems etc.

C26000 brass sheets and plates are widely used in applications requiring deep drawing, stamping, spinning, and forming. These products are available in various thicknesses and tempers (soft, quarter hard, half hard, full hard).

Our C26000 Yellow Brass Round Bars & Rods are manufactured with strict dimensional tolerance, superior machinability, and uniform grain structure — making them ideal for electrical, architectural, marine, decorative, and precision engineering applications. Buy high-quality C26000 Yellow Brass Round Bars & Rods (70/30 Cartridge Brass) with excellent corrosion resistance, formability & finish. Available in custom sizes with fast delivery.

Specifications for C26000 Yellow Brass

End Product Specification
Bar ASTM B36, B19, SAE J463, J461
Brazing Filler Metal FEDERAL QQ-B-650
Cups, Cartridge Case ASTM B129, MILITARY MIL-C-10375,
Disk ASTM B19
Plate AMS 4507, 4505, ASTM B19, B36
Rod SAE J463, J461
Sheet AMS 4507, 5408, 4505, ASTM B19, B36, SAE J463, J461
Shim Stock, Laminated MILITARY MIL-S-22499
Strip AMS 4507, 4505, ASTM B36, B569, B19, B888, SAE J463, J461
Tube, Seamless ASTM B135, FEDERAL WW-T-791, MILITARY MIL-T-20219, SAE J463, J461
Tube, Welded ASTM B587, B587
Wire ASTM B134, SAE J463, J461

C26000 Yellow Brass Equivalent Grades

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Cartridge Brass Yellow Brass C26000 CZ106 CW505L H3250(92)C2600 BE 2.0265 CuZn30 IS 4170 CuZn30
IS 4413 CuZn30

C26000 Yellow Brass Chemical Composition

  Cu Fe Pb Zn
Min/Max 68.5 - 71.5 0.05 0.07 Rem
Nominals 70.0000 - - 30.0000

C26000 Yellow Brass Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
FLAT PRODUCTS
OS015 0.04     68 53 22 - - - - - - - - - - 35 14
OS015 1 0 TYP 20 365 152 - - 54 - - 78 43 - - - 241 97 0
H02 0.04     68 62 52 - - - - - - - - - - 40 18
H02 1 0 TYP 20 427 359 - - 25 70 - - 65 - - - 276 124 0
H06 0.04     68 86 65 - - - - - - - - - - 46 -
H06 1 0 TYP 20 593 448 - - 5 88 - - 76 - - - 317 - 0
OS100 0.04     68 44 11 - - - - - - - - - - - 2
OS100 1 0 TYP 20 303 76 - - 66 - - 54 11 - - - - 13 0
OS035 0.04     68 49 17 - - - - - - - - - - 34 14
OS035 1 0 TYP 20 338 117 - - 57 - - 68 31 - - - 234 97 0
H04 0.04     68 76 63 - - - - - - - - - - 44 21
H04 1 0 TYP 20 524 434 - - 8 82 - - 73 - - - 303 145 0
H08 0.04     68 94 65 - - - - - - - - - - 48 23
H08 1 0 TYP 20 648 448 - - 3 91 - - 77 - - - 331 159 0
OS070 0.04     68 46 14 - - - - - - - - - - 32 13
OS070 1 0 TYP 20 317 97 - - 65 - - 58 15 - - - 221 90 0
OS050 0.04     68 47 15 - - - - - - - - - - - -
OS050 1 0 TYP 20 324 103 - - 62 - - 64 26 - - - - - 0
H10 0.04     68 99 65 - - - - - - - - - - - -
H10 1 0 TYP 20 683 448 - - 3 93 - - 78 - - - - - 0
H01 0.04     68 54 40 - - - - - - - - - - 36 -
H01 1 0 TYP 20 372 276 - - 43 55 - - 54 - - - 248 - 0
ROD
H02 1     68 70 52 - - - - - - - - - - 42 22
H02 25.4 20 TYP 20 483 359 - - 30 80 - - - - - - 290 152 0
OS050 1     68 48 16 - - - - - - - - - - 34 -
OS050 25.4 0 TYP 20 331 110 - - 65 - - 65 - - - - 234 - 0
H00 1     68 55 40 - - - - - - - - - - 36 -
H00 25.4 6 TYP 20 379 276 - - 48 60 - - - - - - 248 - 0
TUBE
H80 0     68 78 64 - - - - - - - - - - - -
H80 0 35 TYP 20 538 441 - - 8 82 - - 73 - - - - - 0
OS025 0     68 52 20 - - - - - - - - - - - -
OS025 0 0 TYP 20 359 138 - - 55 - - 75 40 - - - - - 0
OS050 0     68 47 15 - - - - - - - - - - - -
OS050 0 0 TYP 20 324 103 - - 65 - - 64 26 - - - - - 0
WIRE
OS035 0.08     68 50 - - - - - - - - - - - 34 -
OS035 2 0 TYP 20 345 - - - 60 - - - - - - - 234 - 0
H08 0.08     68 130 - - - - - - - - - - - 60 22
H08 2 0 TYP 20 896 - - - 3 - - - - - - - 414 152 0
OS025 0.08     68 52 - - - - - - - - - - - - -
OS025 2 0 TYP 20 359 - - - 58 - - - - - - - - - 0
OS015 0.08     68 54 - - - - - - - - - - - - -
OS015 2 0 TYP 20 372 - - - 56 - - - - - - - - - 0
OS050 0.08     68 48 - - - - - - - - - - - - -
OS050 2 0 TYP 20 331 - - - 64 - - - - - - - - - 0
H00 0.08     68 58 - - - - - - - - - - - 38 -
H00 2 0 TYP 20 400 - - - 35 - - - - - - - 262 - 0
H01 0.08     68 70 - - - - - - - - - - - - -
H01 2 0 TYP 20 483 - - - 20 - - - - - - - - - 0
H06 0.08     68 124 - - - - - - - - - - - - -
H06 2 0 TYP 20 855 - - - 4 - - - - - - - - - 0

C26000 Yellow Brass Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11.1 · 10-6 per oF (68-572 ÌÎ?̴åÁF) 20.0 · 10-6 per oC (20-300 C)
Density 0.308 lb/in3 @ 68 F 8.53 gm/cm3 @ 20 C
Electrical Conductivity 28 %IACS @ 68 F 0.164 MegaSiemens/cm @ 20 C
Electrical Resistivity 37.0 ohms-cmil/ft @ 68 F 6.15 microhm-cm @ 20 C
Melting Point Liquid US 1750 F 954 C
Melting Point Solid US 1680 F 916 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Modulas of Rigidity 6000 ksi 41370 MPa
Specific Gravity 8.53 8.53
Specific Heat Capacity 0.09 Btu/lb/oF @ 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 70.0 Btu · ft/(hr · ft2 · oF) @ 68 F 121.2 W/m · oK at 20 C

C26000 Yellow Brass Supplier, C26000 Yellow Brass Manufacturer, C26000 Yellow Brass Exporter, C26000 Bronze Pipes, C26000 Bronze Tubes, C26000 Bronze Sheets, C26000 Brass Pipes, C26000 Brass Plates, brass engineering rods, brass round bar India, brass bright bars, Cartridge Brass 70/30, C26000 yellow brass rods, C26000 brass bars, yellow brass rods manufacturer, C26000 Brass Sheets, C26000 Brass Coils, brass round bar supplier in Mumbai, India.

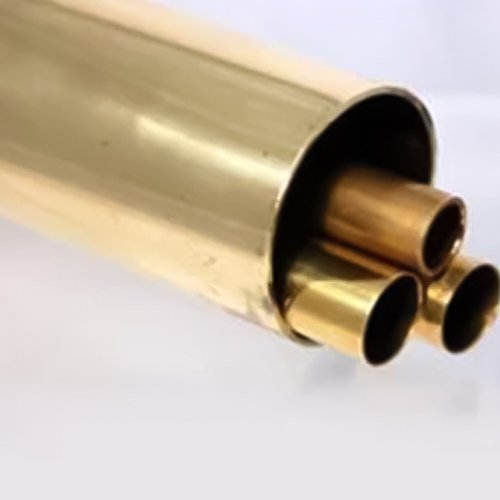

C26000 Yellow Brass Pipes & Tubes

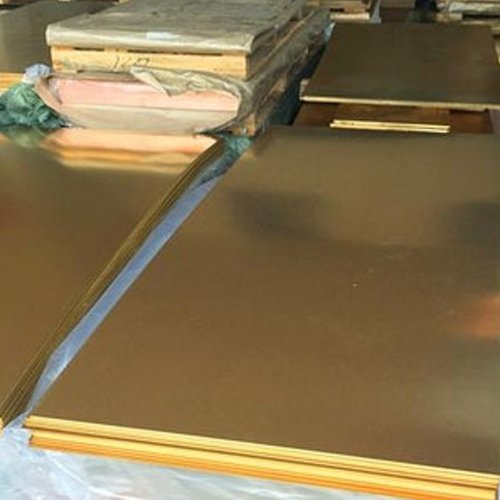

C26000 Yellow Brass Sheets, Plates & Coils

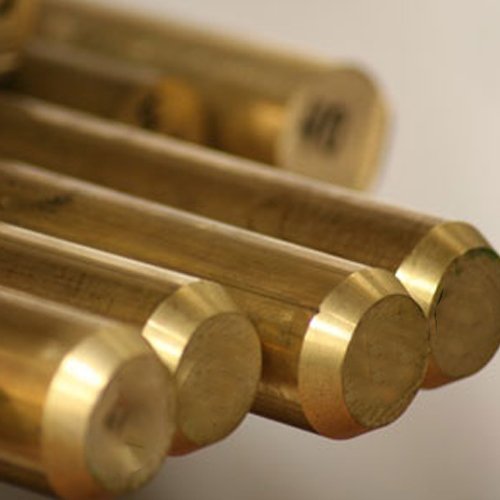

C26000 Yellow Brass Round Bars

C26000 Yellow Brass Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C26000 Yellow Brass Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C26000 Yellow Brass Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
