C65100 Silicon Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C65100 Silicon Bronze Tubes, C65100 Silicon Bronze Sheets & Plates, C65100 Silicon Bronze Bars, CDA C65100 Silicon Bronze Sheets, C65100 Silicon Bronze, Silicon Bronze Pipe Tube, C65100 Bronze Sheet Plate, C65100 Round Bar, Low Silicon Bronze UNS C65100 manufacturer in Mumbai, India.

Raninox Steel is leading supplier and exporter of C65100 Silicon Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings in various sizes, finishes, and international specifications, ensuring durability, machinability, and long service life.

Our materials comply with international standards and are available in custom sizes, thicknesses, and specifications as per client requirements.

C65100 Silicon Bronze Pipe & Tubes are premium copper-silicon alloy products engineered for superior corrosion resistance, durability, and long-term reliability. This alloy (UNS C65100 / CW115C) belongs to the low-silicon bronze family and is widely used in marine, chemical, electrical, and industrial piping applications where strength and resistance to harsh environments are essential.

C65100 Silicon Bronze Round Bars are premium-quality copper alloy bars engineered for strength, corrosion resistance, and excellent machinability. Ideal for a wide range of industrial applications, these round bars offer reliability and performance in demanding environments. Manufactured to strict industry standards, they provide consistent mechanical properties and dimensional accuracy.

C65100 Silicon Bronze Sheets & Plates are manufactured from high-quality copper with approximately 3% silicon and 0.5% manganese, producing a versatile material that combines strength with excellent physical characteristics. This alloy exhibits: High corrosion resistance in atmospheric, water, and industrial environments, Exceptional formability and weldability, Good electrical and thermal conductivity, Smooth surface finish and consistent thickness tolerance features. Available in standard and custom sizes, our C65100 sheets and plates meet requirements for precision fabrication and structural applications.

Specifications for C65100 Silicon Bronze

Bar ASME SB98, ASTM B98
Bolts ASTM F468
Nuts ASTM F467
Pipe ASTM B315
Plate ASTM B96
Plate, Clad ASTM B432
Rod ASME SB98, ASTM B98
Screws ASTM F468
Shapes ASME SB98, ASTM B98
Sheet ASTM B96
Strip ASTM B96
Studs ASTM F468
Tube ASTM B315
Wire ASTM B99, B105

C65100 Silicon Bronze Equivalent Grades

Specifications Designation
ISO CuSi1
UNS C65100
DIN 2.049
EN CW115C

C65100 Silicon Bronze Chemical Composition

  Cu Fe Pb Mn Si Zn
Min/Max Rem 0.8 0.05 0.7 0.80 - 2.0 1.5
Nominals 98.5000 - - - 1.5000 -

C65100 Silicon Bronze Mechanical Properties

Separately Cast Coupons English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings 1.0” and Under English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings Over 1.0” English Metric
Tensile Strength, min. 95.0 ksi 655 MPa
Yield Strength@ 0.2% Offset, min. 50.0 ksi 345 MPa
Elongation in 4D 8% 8%

C65100 Silicon Bronze Physical Properties

Melting Point - Liquidus°F 1940
Melting Point - Solidus°F 1890
Densitylb/cu in. at 68°F 0.316
Specific Gravity 8.75
Electrical Conductivity% IACS at 68°F 12
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 33
Coefficient of Thermal Expansion 68-5720 to -6 power per °F (68 – 572°F) 9.9
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 17000
Modulus of Rigidityksi 6400

C65100 Silicon Bronze Plates, CDA C65100 Pipes Supplier, C65100 Silicon Bronze Sheets & Plates, C65100 Silicon Bronze Alloy Pipes Manufacturer, ASTM B315 Silicon Bronze, CW115C Bronze, Bronze Alloy Sheets, Bronze Coils and Strips, Silicone Bronze Rods, Corrosion-Resistant Bronze, Marine Bronze Pipes Supplier in Mumbai, India.

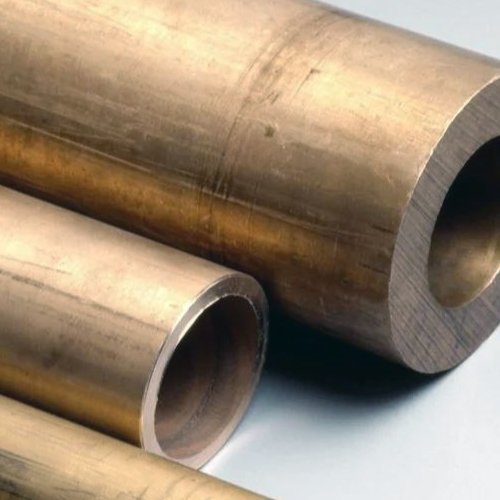

C65100 Silicon Bronze Pipes & Tubes

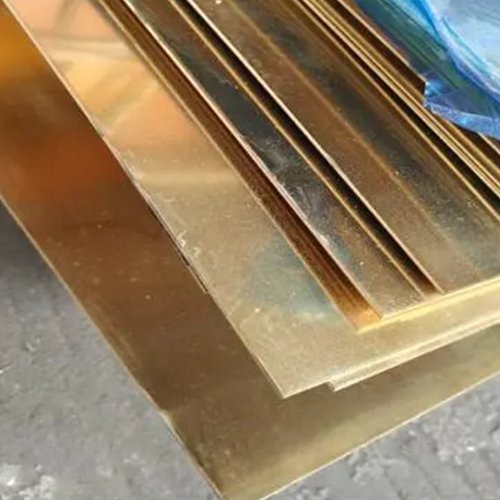

C65100 Silicon Bronze Sheets, Plates & Coils

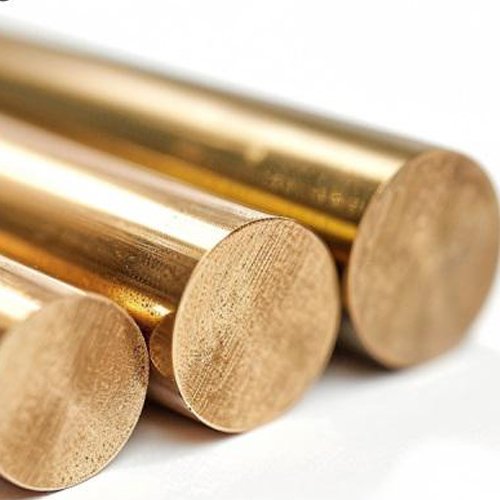

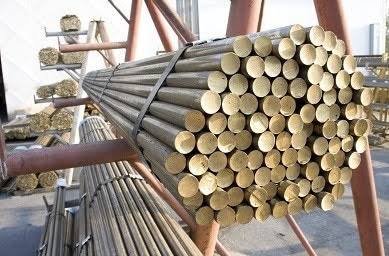

C65100 Silicon Bronze Round Bars

C65100 Silicon Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C65100 Silicon Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C65100 Silicon Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

C65100 Silicon Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of C65100 Silicon Bronze

C65100 Silicon Bronze Plates Manufacturer C65100 Silicon Bronze Slit Coils Supplier in India
CDA C65100 Silicon Bronze Pipes at Best Price in India C65100 Silicon Bronze Hex Bars Stockists
CDA C65100 Silicon Bronze Strip Dealer in India CDA C65100 Silicon Bronze Sheets Plates Wholesaler
C65100 Silicon Bronze Round Rod Dealer CDA C65100 Silicon Bronze ERW Pipes Manufacturer
C65100 Silicon Bronze Rectangular Bars C65100 Silicon Bronze Square Bars Supplier
CDA C65100 Silicon Bronze Coils Supplier in Mumbai CDA C65100 Silicon Bronze Condenser Tube Supplier
CDA C65100 Silicon Bronze Sheets Stockist C65100 Silicon Bronze Pipes Supplier
Phosphor Bronze C52100 Forgins CDA C65100 Silicon Bronze Bolts Supplier
CDA C65100 Silicon Bronze Coils CDA C65100 Silicon Bronze Perforated Sheets Cut to Size
CDA C65100 Silicon Bronze Nut Sheet Supplier in India C65100 Silicon Bronze Round Bars Supplier

C65100 Silicon Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
