C64200 Silicon Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C64200 Silicon Aluminum Bronze Tubes, C64200 Silicon Aluminum Bronze Sheets & Plates, C64200 Silicon Aluminum Bronze Bars, CDA C64200 Silicon Aluminum Bronze Sheets, C64200 Silicon Aluminum Bronze Pipes, CDA C630 Nickel Aluminum Bronze Coils, C64200 Silicon Aluminum Bronze, C64200 Pipes, C64200 Silicon Aluminum Bronze, C64200 pipes, C64200 tubes, silicon aluminum bronze sheets, C64200 round bars supplier, C64200 pipe fittings manufacturer in Mumbai, India.

Raninox Steel is leading supplier and exporter of C64200 Silicon Aluminum Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings in various sizes, finishes, and international specifications, ensuring durability, machinability, and long service life.

Our materials comply with international standards and are available in custom sizes, thicknesses, and specifications as per client requirements.

We supply seamless and welded C64200 Silicon Aluminum Bronze Pipes & Tubes Our provided C64200 pipes is Excellent resistance to seawater and brine widely used in application like marine piping systems, condensers, and heat exchangers etc.

C64200 Silicon Aluminum Bronze Sheets and Plates are high-strength copper-based alloy products known for exceptional corrosion resistance, wear resistance, and superior mechanical durability. This alloy combines aluminum and silicon within a copper matrix, producing a material suitable for demanding marine, offshore, industrial, and heavy engineering environments.

C64200 Silicon Aluminum Bronze Round Bars are high-performance copper alloy bars known for their outstanding corrosion resistance, strength, wear resistance, and excellent performance in marine and industrial environments. Manufactured as per international standards such as ASTM B150 / ASME SB150 / AMS 4634, the alloy offers a perfect balance of mechanical strength and machinability for precision components and heavy-duty equipment.

Specifications for C64200 Silicon Aluminum Bronze

End Product Specification
Bar AMS 4631, ASME SB150, ASTM B150
Bar, Forging ASTM B124
Bolts ASTM F468
Forgings, Die AMS 4631, ASME SB283, ASTM B283
Nuts ASTM F467
Rod AMS 4631, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes ASTM B150
Shapes, Forging ASTM B124
Studs ASTM F468

C64200 Silicon Aluminum Bronze Equivalent Grades

Specifications Designation
ASTM ASTM B505 / ASTM B271
UNS C95510
SAE SAE J461 / SAE J462
Military/AMS QQ-C-390B
AMS AMS 4880
Military Specification MIL-B-16033 Class 4
CDA C95510

C64200 Silicon Aluminum Bronze Chemical Composition

  Al As Cu Fe Pb Ni Si Sn Zn
Min/Max 3.0 - 4.0 0.15 Rem 0.15 0.05 0.15 0.7 - 1.3 0.2 0.5
Nominals 3.5000 - 95.5000 - - - 1.0000 - -

C64200 Silicon Aluminum Bronze Mechanical Properties

Separately Cast Coupons English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings 1.0” and Under English Metric
Tensile Strength, min. 105 ksi 724 MPa
Yield Strength@ 0.2% Offset, min. 62.5 ksi 431 MPa
Elongation in 4D 9% 9%
Specimens Cut From Centrifugal Castings Over 1.0” English Metric
Tensile Strength, min. 95.0 ksi 655 MPa
Yield Strength@ 0.2% Offset, min. 50.0 ksi 345 MPa
Elongation in 4D 8% 8%

C64200 Silicon Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient Of Thermal Expansion 9.4 10−6Per °F (68-572 F) 16.9 10−6Per °F (20-300 C)
Density 0.301 Lb/In3 At 68 F 8.33 Gm/Cm3 @ 20 C
Electrical Conductivity 12 %IACS @ 68 F 0.07 MegaSiemens/Cm @ 20 C
Electrical Resistivity 86.4 Ohms-Cmil/Ft @ 68 F 14.36 Microhm-Cm @ 20 C
Melting Point - Liquidus 1890 F 1032 C
Modulas Of Elasticity In Tension 16000 Ksi 110000 MPa
Specific Gravity 8.33 8.33
Thermal Conductivity 33.0 BTU In/Hr.Ft2.°F ) At 68F 57.1 W/M · OK At 20 C

C64200 Silicon Aluminum Bronze Plates, CDA C64200 Pipes Supplier, C64200 Silicon Aluminum Bronze Sheets & Plates, C64200 Silicon Aluminum Bronze Alloy Pipes Manufacturer, C64200 Silicon Aluminum Bronze Round Bars Supplier, CDA C64200 Silicon Aluminum Bronze Coils, C64200 Silicon Aluminum Bronze Rods, C64200 Silicon Aluminum Bronze Tubes Supplier in Mumbai, India.

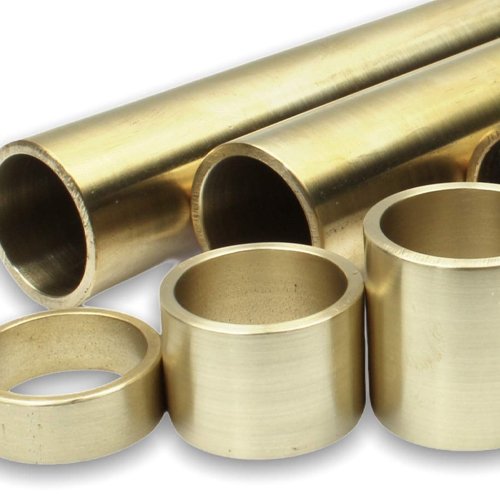

C64200 Silicon Aluminum Bronze Pipes & Tubes

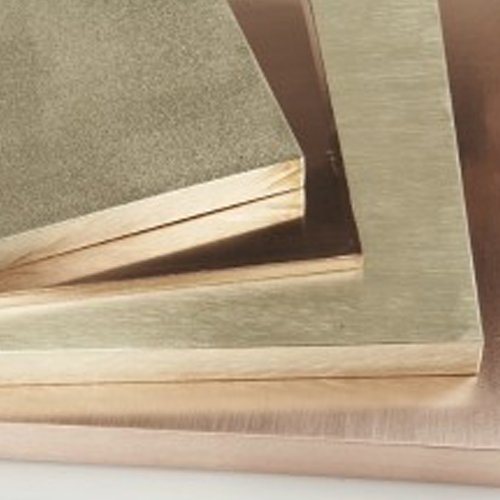

C64200 Silicon Aluminum Bronze Sheets, Plates & Coils

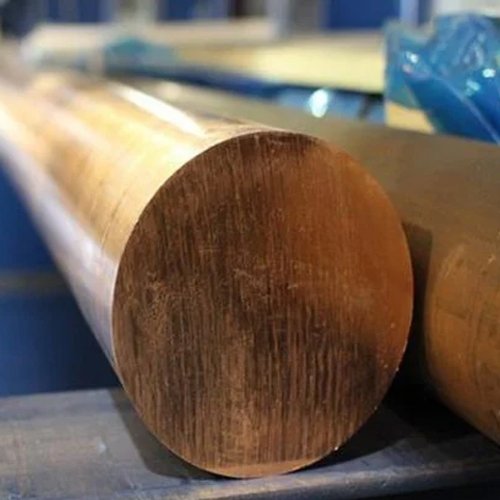

C64200 Silicon Aluminum Bronze Round Bars

C64200 Silicon Aluminum Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C64200 Silicon Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C64200 Silicon Aluminum Bronze Flat Bars Size & Weight

Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m Size in milimeter Weight in kilogram/m
7 * 7 .337 19 * 19 2.479 38 * 38 9.916
8 * 8 .44 20 * 20 2.747 40 * 40 1 .988
9 * 9 .556 21 * 21 3.029 42 * 42 12.114
10 * 10 .687 22 * 22 3.324 45 * 45 13.906
11 * 11 .831 24 * 24 3.956 48 * 48 15.822
12 * 12 .989 25 * 25 4.292 50 * 50 17.168
13 * 13 1.161 26 * 26 4.642 53 * 53 19.29
14 * 14 1.346 28 * 28 5.384 55 * 55 2 .774
15 * 15 1.545 30 * 30 6.181 60 * 60 24.723
16 * 16 1.758 32 * 32 7.032 65 * 65 29.015
17 * 17 1.985 34 * 34 7.939 70 * 70 33.65
18 * 18 2.225 36 * 36 8.9 75 * 75 38.629

C64200 Silicon Aluminum Bronze Round Bar Dimension

Size in milimeter Size in milimeter Size in milimeter
7 * 7 19 * 19 38 * 38
8 * 8 20 * 20 40 * 40
9 * 9 21 * 21 42 * 42
10 * 10 22 * 22 45 * 45
11 * 11 24 * 24 48 * 48
12 * 12 25 * 25 50 * 50
13 * 13 26 * 26 53 * 53
14 * 14 28 * 28 55 * 55
15 * 15 30 * 30 60 * 60
16 * 16 32 * 32 65 * 65
17 * 17 34 * 34 70 * 70
18 * 18 36 * 36 75 * 75

Types Of C64200 Silicon Aluminum Bronze

C64200 Silicon Aluminum Bronze Plates Manufacturer C64200 Silicon Aluminum Bronze Slit Coils Supplier in India
CDA C64200 Silicon Aluminum Bronze Pipes at Best Price in India C64200 Silicon Aluminum Bronze Hex Bars Stockists
CDA C64200 Silicon Aluminum Bronze Strip Dealer in India CDA C64200 Silicon Aluminum Bronze Sheets Plates Wholesaler
C64200 Silicon Aluminum Bronze Round Rod Dealer CDA C64200 Silicon Aluminum Bronze ERW Pipes Manufacturer
C64200 Silicon Aluminum Bronze Rectangular Bars C64200 Silicon Aluminum Bronze Square Bars Supplier
CDA C64200 Silicon Aluminum Bronze Coils Supplier in Mumbai CDA C64200 Silicon Aluminum Bronze Condenser Tube Supplier
CDA C64200 Silicon Aluminum Bronze Sheets Stockist C64200 Silicon Aluminum Bronze Pipes Supplier
Phosphor Bronze C52100 Forgins CDA C64200 Silicon Aluminum Bronze Bolts Supplier
CDA C64200 Silicon Aluminum Bronze Coils CDA C64200 Silicon Aluminum Bronze Perforated Sheets Cut to Size
CDA C64200 Silicon Aluminum Bronze Nut Sheet Supplier in India C64200 Silicon Aluminum Bronze Round Bars Supplier

C64200 Silicon Aluminum Bronze Applications & Industries
