C67300 Manganese Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C67300 Manganese Bronze Tubes, C67300 Manganese Bronze Sheets & Plates, C67300 Manganese Bronze Bars, CDA C67300 Manganese Bronze Sheets, C67300 Manganese Bronze Coil, Silicon Bronze Pipe Tube, Marine Grade Manganese Bronze, High Strength Bronze Alloy, Industrial Bronze Supplier, C67300 Bronze Price, C67300 Bronze Stockist, Copper Zinc Manganese Alloy Supplier in Mumbai, India.

Raninox Steel is a trusted name in manufacturing and supplying high-quality C67300 Manganese Bronze Pipes, Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. We deliver precision-engineered products with superior strength, corrosion resistance, and durability for industrial applications worldwide.

We offer high-performance C67300 Manganese Bronze Pipes & Tubes known for excellent strength, wear resistance, and corrosion protection. It is widely used in marine and industrial environments where materials must withstand harsh conditions.

Our C67300 Manganese Bronze Sheets are manufactured with precision to deliver excellent surface finish, strength, and formability. These sheets are ideal for fabrication work, industrial components, and applications requiring dependable bronze performance.

We supply C67300 Manganese Bronze Plates that are known for durability, wear resistance, and machinability. These plates are widely used in heavy-duty engineering, marine components, and manufacturing industries where long-lasting material performance is required.

C67300 Manganese Bronze Round Bars for machining, turning, and manufacturing applications. These bars are ideal for creating shafts, fasteners, fittings, and precision parts that require strength and corrosion resistance.

Our C67300 Manganese Bronze Pipe Fittings are designed for secure connections and long-term performance in piping systems. They are suitable for marine, chemical, and industrial installations where durability and leak resistance are important.

Specifications for C67300 Manganese Bronze

End Product Specification
Bar SAE J461, J463
Forgings SAE J461, J463
Rod SAE J463, J461
Shapes SAE J463, J461

C67300 Manganese Bronze Equivalent Grades

Specifications Designation
ASTM B249
UNS C67310
SAE J461, J463
ISO CuZn35Mn3Pb2Si1

C67300 Manganese Bronze Chemical Composition

  Al Cu Fe Pb Mn Ni Si Sn Zn
Min/Max 0.25 58.0 - 63.0 0.5 0.40 - 3.0 2.0 - 3.5 0.25 0.50 - 1.5 0.3 Rem
Nominals - 60.5000 - 1.7000 2.7000 - 1.0000 - 34.1000

C67300 Manganese Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
O61 0     68 60 - - - - - - - - - - - - -
O61 0 0 TYP 20 414 - - - 64 - - - - - - - - - 0
H01 0     68 74 - - - - - - - - - - - - -
H01 0 0 TYP 20 510 - - - 31 - - - - - - - - - 0
WIRE
H00 0.42     68 68 - - - - - - - - - - - - -
H00 10.7 7 TYP 20 469 - - - 52 71 - - - - - - - - 0
O61 0.39     68 60 - - - - - - - - - - - - -
O61 10 0 TYP 20 414 - - - 67 - - - - - - - - - 0
H01 0.49     68 84 - - - - - - - - - - - - -
H01 12.4 21 TYP 20 579 - - - 29 84 - - - - - - - - 0

C67300 Manganese Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 11 · 10-6 per oF (68-572 F) 19.0 · 10-6 per oC (20-300 C)
Density .30 lb/in3 at 68 F 8.3 gm/cm3 @ 20 C
Electrical Conductivity 22 %IACS @ 68 F 0.13 MegaSiemens/cm @ 20 C
Melting Point - Liquidus 1605 F 874 C
Modulas of Elasticity in Tension 17000 ksi 117200 MPa
Specific Gravity 8.30 8.3
Thermal Conductivity 55 Btu · ft/(hr · ft2 · oF)at 68F 95.0 W/m · oK at 20 C

C67300 Manganese Bronze Supplier, C67300 Manganese Bronze Manufacturer, C67300 Manganese Bronze Exporter, C67300 Bronze Pipes, C67300 Bronze Tubes, C67300 Bronze Sheets, C67300 Bronze Plates, C67300 Bronze Coils, C67300 Bronze Round Bars, Manganese Bronze ASTM B505, Manganese Bronze ASTM B584 Bars in Mumbai, India.

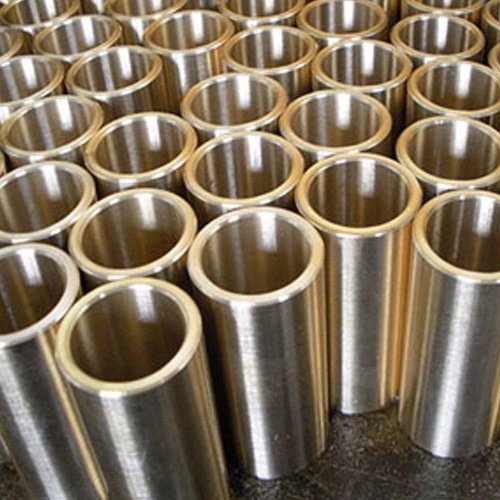

C67300 Manganese Bronze Pipes & Tubes

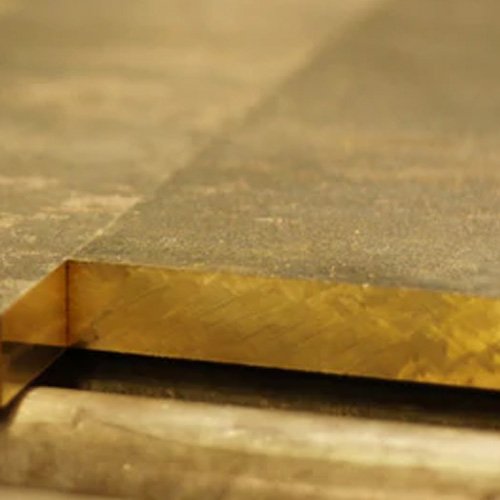

C67300 Manganese Bronze Sheets, Plates & Coils

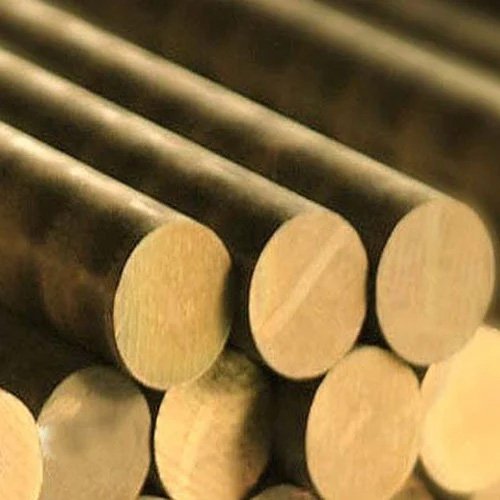

C67300 Manganese Bronze Round Bars

C67300 Manganese Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C67300 Manganese Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C67300 Manganese Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154
