Phosphor Bronze C54400 Pipes & Tubes, Sheets & Plates, Coils, Round Bars Manufacturer & Supplier

C54400 Phosphor Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C62300 Bars, Aluminium Aluminium Coils Bronze Size, Rods, Alloy Bronze Round Alloy Bronze C61900 Alloy Bronze Bronze Mumbai, Bars, Bars, Bronze Plates C62400 Cut Tubes, Sheets, Aluminium India. Round Bronze Aluminium Bronze Tubes, Aluminium Pipes, Bronze Pipes Aluminium in Aluminium Aluminium to Plates, Aluminium Aluminium Quality Aluminium Aluminium Bronze Sheets, Sheets and C61400 Aluminium Bronze Bronze High Alloy Supplier C61300 Coils Supplier in Mumbai, India.

Raninox Steel is a leading manufacturer & Supplier of C54400 Phosphor Bronze products, offering a comprehensive range including pipes, tubes, sheets, plates, coils, and round bars. C54400 Phosphor Bronze is a high-performance copper alloy known for its excellent strength, toughness, wear resistance, and corrosion resistance. This versatile alloy combines copper with tin and a controlled amount of phosphorus, providing superior mechanical properties and enhanced fatigue resistance. C54400 meets stringent international standards and is widely used across marine, industrial, electrical, and precision engineering applications.

C54400 Phosphor Bronze Pipes and Tubes are precision fabricated for fluid handling, bearing housings, and mechanical assemblies. Offered in seamless and drawn finishes with tight dimensional tolerances, ideal for engineered systems and industrial installations.

Our UNS C54400 Phosphor Bronze Sheets and Plates are manufactured using advanced rolling techniques to ensure uniform thickness, excellent surface finish, and consistent mechanical properties. C54400 Phosphor Bronze Coils are ideal for continuous production processes where flexibility, strength, and consistency are critical. These coils are supplied in annealed or hard-rolled conditions based on application requirements.

C54400 Phosphor Bronze Round Bars are widely used for machining high-precision components that require excellent wear resistance and strength. Available in Sizes such as Small diameter precision rods, Large diameter bars, Custom machined profiles.

Specifications for C54400 Phosphor Bronze Pipes & Tubes

Standards	ASTM / ASME
Size	½”NB – 24″NB
Schedule	SCH 10 – SCH XXS
Type	Seamless / ERW / Welded
Length	Single Random, Double Random & Cut Length.
End	Plain End, Beveled End, Treaded

Specifications for C54400 Phosphor Bronze Sheets, Plates & Coils

Specifications	ASTM / ASME
Sheet	thickness range from .008″ to .0125″
Size	15NB to 150NB In
Width	10mm – 2500mm
Length	As Your Required
Purity	≥99.9% or 99.95%
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form	Sheet, Shims.

Specifications for C54400 Phosphor Bronze Round Bars

Specifications	ASTM / ASME
Dimensions	EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Size	5 mm To 500 mm
Length	9 – 12 metres
Form	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Finish	Cold drawn, Bright drawn, Centreless ground, Cold finished, Peeled and turned, Smooth turned, Slit rolled edge, Hot finished, Hot rolled, Rough turned/peeled, Peeled and reeled
Tolerance	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements

C54400 Phosphor Bronze Equivalent Grades

CDA	ASTM	SAE	AMS	Federal	Military	Other
C54400	B139 B139M	J461 J463

C54400 Phosphor Bronze Chemical Composition

Cu%	Pb%	Sn%	Zn%	Fe%	P%
Rem.	3.00-4.00	3.50-4.50	1.50-4.60	0.10	0.01-0.50

C54400 Phosphor Bronze Mechanical Properties

Copper alloy UNS no.	Machinability rating	Density (lb / in³ at 68 °F)
C54400	80	0.320

C54400 Phosphor Bronze Physical Properties

Properties	US Customary	Metric
Melting point - liquidus	1830 °F	999 °C
Melting point - solidus	1700 °F	927 °C
Density	0.320 lb/in³ at 68 °F	8.89 gm/cm³ at 20 °C
Specific gravity	8.89	8.89
Electrical conductivity	19% IACS at 68 °F	0.111 MegaSiemens/cm at 20 °C
Thermal conductivity	50 Btu/sq ft/ft hr/°F at 68 °F	86.5 W/m at 20 °C
Coefficient of thermal expansion 68-572	9.6 · 10^-6 per °F (68-572 °F)	16.6 · 10^-6 per °C (20-300 °C)
Specific heat capacity	0.09 Btu/lb/°F at 68 °F	377.1 J/kg at 20 °C
Modulus of elastic in tension	15000 ksi	103420 MPa
Modulus of Rigidity	5600 ksi	38610 MPa

C54400 Phosphor Bronze Plates, Phosphor Bronze C54400 Pipes Supplier, Phosphor Bronze C544 Sheets & Plates, Phosphor Bronze C54400 Alloy Pipes, Phosphor Bronze C54400 Round Bars, Cut to C54400 Coils, Phosphor Bronze C54400 Rods, Phosphor Bronze C54400 Phosphor Bronze UNS C54400 Tubes Supplier in Mumbai, India.

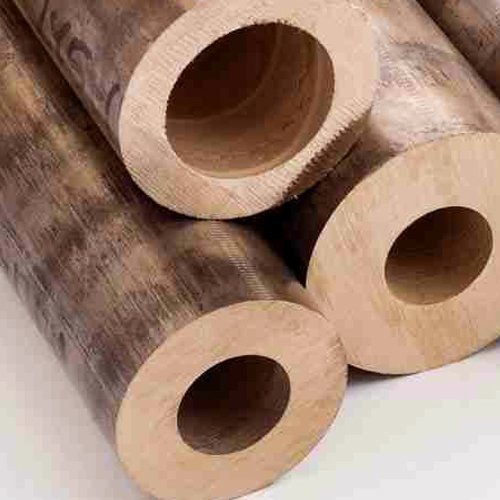

C54400 Phosphor Bronze Pipes & Tubes

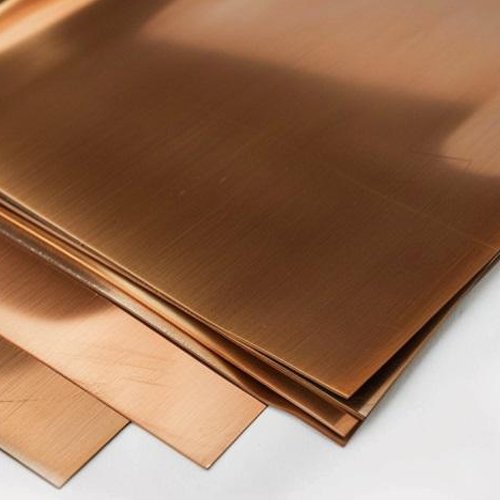

C54400 Phosphor Bronze Sheets, Plates & Coils

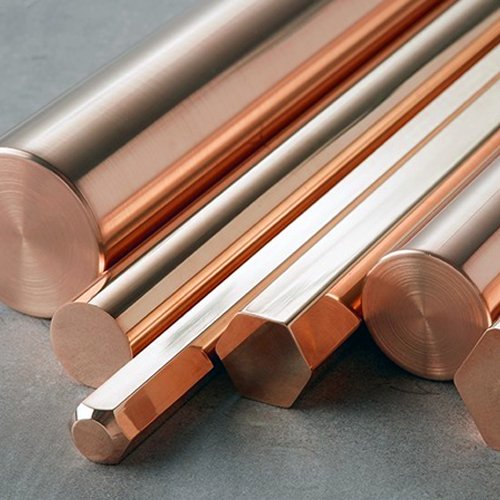

C54400 Phosphor Bronze Round Bars

C54400 Phosphor Bronze Sheets & Plates Size Chart

Dimension Category	Typical Range / Options
Thickness (Sheet / Plate)	0.1 mm – ~120 mm (some suppliers up to ~200 mm)
Width	10 mm – 2500 mm+ (wide sheets/plates up to ~3500 mm in some stocks)
Length	Common: 2000 mm, 2440 mm, 3000 mm (others available to requirement)
Standard Sheet Sizes	1000 × 2000 mm, 1220 × 2440 mm, 1500 × 3000 mm, 2000 × 2000 mm, 2000 × 4000 mm
Plate Formats	Sheet, Plate, Coils, Foils, Rolls, Flat Sheets, Flat Shims, Strips
Custom Lengths / Sizes	Available upon request from mill/stockholder
Finish / Surface	Hot rolled, cold rolled, 2B, 2D, BA (No.8), satin, mirror, etc.

C54400 Phosphor Bronze Pipes & Tubes Size

Metric OD	Wall Thickness	Imperial OD	Wall Thickness	Nominal Bore mm	WT / Metre
4.76MM	0.71MM	3/16″OD	22G	3.34	0.077
6.35MM	1.63MM	1/4″OD	16G	3.09	0.206
6.35MM	1.22MM	1/4″OD	18G	3.91	0.167
6.35MM	0.91MM	1/4″OD	20G	4.53	0.133
7.94MM	0.91MM	5/16″OD	20G	6.11	0.172
9.52MM	1.63MM	3/8″OD	16G	6.26	0.345
9.52MM	1.22MM	3/8″OD	18G	7.08	0.271
9.52MM	0.91MM	3/8″OD	20G	7.70	0.210
12.7MM	1.63MM	1/2″OD	16G	9.44	0.484
12.7MM	1.22MM	1/2″OD	18G	10.26	0.375
12.7MM	0.91MM	1/2″OD	20G	10.88	0.288
14.29MM	0.91MM	9/16″OD	20G	12.47	0.550
15.88MM	1.63MM	5/8″OD	16G	12.62	0.622
15.88MM	1.22MM	5/8″OD	18G	13.44	0.479
15.88MM	0.91MM	5/8″OD	20G	14.06	0.365
19.05MM	3.25MM	3/4″OD	10G	12.55	1.376
19.05MM	1.63MM	3/4″OD	16G	15.79	0.761
19.05MM	1.22MM	3/4″OD	18G	16.61	0.583
19.05MM	0.91MM	3/4″OD	20G	17.23	0.442
22.22MM	1.63MM	7/8″OD	16G	18.96	0.899
22.22MM	1.22MM	7/8″OD	18G	19.78	0.687
25.4MM	1.63MM	1″OD	16G	22.14	1.038
25.4MM	1.22MM	1″OD	18G	22.96	0.791
25.4MM	0.91MM	1″OD	20G	23.00	0.597
28.58MM	1.63MM	1-1/8″OD	16G	25.32	1.177
31.75MM	1.63MM	1-1/4″OD	16G	28.49	1.316
31.75MM	1.22MM	1-1/4″OD	18G	29.31	0.998
34.92MM	1.63MM	1-3/8″OD	16G	31.66	1.454
38.1MM	3.25MM	1-1/2″OD	10G	31.60	3.040
38.1MM	1.63MM	1-1/2″OD	16G	34.84	1.593
38.1MM	1.22MM	1-1/2″OD	18G	35.66	1.206
44.45MM	3.25MM	1-3/4″OD	10G	37.95	3.600
44.45MM	1.22MM	1-3/4″OD	18G	42.01	1.410
50.8MM	3.25MM	2″OD	10G	44.30	4.140
50.8MM	1.63MM	2″OD	16G	47.54	2.418
50.8MM	1.22MM	2″OD	18G	48.36	1.621
57.2MM	3.25MM	2-1/4″OD	10G	50.70	4.700
63.5MM	3.25MM	2-1/2″OD	10G	57.00	5.248
63.5MM	1.63MM	2-1/2″OD	16G	60.24	2.703
69.85MM	3.25MM	2-3/4″OD	10G	63.35	5.810
76.2MM	3.25MM	3″OD	10G	69.70	6.354
82.55MM	3.25MM	3-1/4″OD	10G	76.05	6.910
88.90MM	3.25MM	3-1/2″OD	10G	82.40	7.460
95.25MM	3.25MM	3-3/4″OD	10G	88.75	8.020
107.95MM	3.25MM	4-1/4″OD	10G	101.45	9.670
133.5MM	3.25MM	5″ID	10G	127.00	11.800
158.9MM	3.25MM	6″ID	10G	152.40	13.900

C54400 Phosphor Bronze Round Bars Size

Size Table in MM		Chucked true to Outside Dia in MM				Chucked true to Inside Dia in MM and Inch
Outside Dia, Millimeter	Inside Dia, Millimeter	Maximum Outside Dia, Millimeter	Minimum. Inside Dia, Millimeter	Maximum Outside Dia, Inches.	Minimum. Inside Dia, Inches	Maximum Outside Dia, Millimeter	Minimum. Inside Dia, Millimeter	Maximum Outside Dia, Inches	Minimum. Inside Dia, Inches
32	20	31	21.9	1.220	0.862	30	21	1.185	0.827
32	16	31	18	1.220	0.709	30	17	1.181	0.669
36	25	35	26.9	1.378	1.059	34.1	26	1.343	1.024
36	20	35	22	1.378	0.866	34	21	1.339	0.827
36	16	35	18.1	1.378	0.713	33.9	17	1.335	0.669
40	28	39	29.9	1.535	1.177	38.1	29	1.500	1.142
40	25	39	27	1.535	1.063	38	26	1.496	1.024
40	20	39	22.1	1.535	0.870	37.9	21	1.492	0.827
45	32	44	33.9	1.732	1.335	43.1	33	1.697	1.299
45	28	44	30	1.732	1.181	43	29	1.693	1.142
45	20	44	22.2	1.732	0.874	42.8	21	1.685	0.827
50	36	49	38	1.929	1.496	48	37	1.890	1.457
50	32	49	34.1	1.929	1.343	47.9	33	1.886	1.299
50	25	49	27.2	1.929	1.071	47.8	26	1.882	1.024
56	40	55	42	2.165	1.654	54	41	2.126	1.614
56	36	55	38.1	2.165	1.500	53.9	37	2.122	1.457
56	28	55	30.3	2.165	1.193	53.7	29	2.114	1.142
63	50	62	51.9	2.441	2.043	61.1	51	2.406	2.008
63	45	62	47	2.441	1.850	61	46	2.402	1.811
63	40	62	42.2	2.441	1.661	60.8	41	2.394	1.614
63	36	62	38.3	2.441	1.508	60.7	37	2.390	1.457
63	32	62	34.4	2.441	1.354	60.6	33	2.386	1.299
71	56	69.9	58	2.752	2.283	68.9	57	2.713	2.244
71	45	69.9	47.3	2.752	1.862	68.6	46	2.701	1.811
71	40	69.9	42.4	2.752	1.669	68.5	41	2.697	1.614
71	36	69.9	38.5	2.752	1.516	68.4	37	2.693	1.457
75	60	73.8	62	2.906	2.441	72.8	61	2.866	2.402
75	50	73.8	52.2	2.906	2.055	72.6	51	2.858	2.008
75	40	73.8	42.5	2.906	1.673	72.3	41	2.846	1.614
80	63	78.8	65	3.102	2.559	77.8	64	3.063	2.520
80	50	78.8	52.4	3.102	2.053	77.4	51	3.047	2.008
80	45	78.8	47.5	3.102	1.870	77.3	46	3.043	1.811
80	40	78.8	42.6	3.102	1.677	77.2	41	3.039	1.614
85	67	83.7	69.1	3.295	2.720	82.6	68	3.252	2.677
85	55	83.7	57.4	3.295	2.260	82.3	56.0	3.240	2.205
85	45	83.7	47.6	3.295	1.874	82.1	46.0	3.232	1.811
90	71	88.6	73.1	3.488	2.878	87.6	72.1	3.449	2.839
90	63	88.6	65.3	3.488	2.571	87.3	64.0	3.437	2.520
90	56	88.6	58.5	3.488	2.303	87.1	57.0	3.429	2.244
90	50	88.6	52.6	3.488	2.071	87.0	51.0	3.425	2.008
95	75	93.5	77.3	3.681	3.041	92.4	76.2	3.641	2.997
95	67	93.5	69.3	3.681	2.728	92.2	68.0	3.630	2.677
95	50	93.5	52.7	3.681	2.075	91.8	51.0	3.614	2.008
100	80	98.5	82.3	3.878	3.240	97.4	81.2	3.835	3.197
100	71	98.5	73.4	3.878	2.890	97.2	72.1	3.827	2.839
100	63	98.5	65.5	3.878	2.579	97.0	64.0	3.819	2.520
100	56	98.5	58.7	3.878	2.311	96.8	57.0	3.811	2.244
106	80	104.4	82.5	4.110	3.248	103.1	81.2	4.059	3.197
106	71	104.4	73.5	4.110	2.894	103.0	72.1	4.055	2.839
106	63	104.4	65.7	4.110	2.587	102.7	64.0	4.043	2.520
106	56	104.4	58.9	4.110	2.319	102.5	57.0	4.035	2.244
112	90	110.3	92.5	4.343	3.642	109.2	91.4	4.299	3.598
112	80	110.3	82.6	4.343	3.252	108.9	81.2	4.287	3.197
112	71	110.3	73.7	4.343	2.902	108.7	72.1	4.280	2.839
112	63	110.3	65.8	4.343	2.591	108.5	64.0	4.272	2.520
118	90	116.2	92.7	4.575	3.650	114.9	91.4	4.524	3.598
118	80	116.2	82.8	4.575	3.260	114.6	81.2	4.512	3.197
118	71	116.2	73.8	4.575	2.906	114.5	72.1	4.508	2.839
118	63	116.2	66.0	4.575	2.598	114.2	64.0	4.496	2.520
125	100	123.1	102.7	4.846	4.043	121.9	101.5	4.799	3.996
125	90	123.1	92.8	4.846	3.654	121.7	91.4	4.791	3.598
125	80	123.1	82.9	4.846	3.264	121.4	81.2	4.780	3.197
125	71	123.1	74.0	4.846	2.913	121.3	72.1	4.772	2.839
132	106	130.0	108.8	5.118	4.283	128.8	107.6	5.071	4.236
132	90	130.0	93.0	5.118	3.661	128.4	91.4	5.055	3.598
132	80	130.0	83.1	5.118	3.272	128.1	81.2	5.043	3.197
132	71	130.0	74.2	5.118	2.921	121.2	72.1	5.035	2.839
140	112	137.9	115	5.429	4.528	136.6	113.7	5.378	4.476
140	100	137.9	103.1	5.429	4.059	136.3	101.5	5.366	3.996
140	90	137.9	93.2	5.429	3.669	136.1	91.4	5.358	3.598
140	80	137.9	83.3	5.429	3.280	135.8	81.2	5.346	3.197

Types Of C54400 Phosphor Bronze

Phosphor Bronze C54400 Plates Manufacturer	Phosphor Bronze C54400 Slit Coils Supplier in India
Phosphor Bronze Alloy C54400 Pipes at Best Price in India	Phosphor Bronze C54400 Hex Bars Stockists
Phosphor Bronze Alloy C54400 Bars Dealer in India	Phosphor Bronze Alloy C54400 Sheets Plates Wholesaler
Phosphor Bronze C54400 Round Rod Dealer	Phosphor Bronze Alloy C54400 ERW Pipes Manufacturer
Phosphor Bronze C54400 Rectangular Bars	Phosphor Bronze C54400 Square Bars Supplier
Phosphor Bronze Alloy C54400 Coils Supplier in Mumbai	Phosphor Bronze Alloy C54400 Seamless Tubes Supplier
Phosphor Bronze Alloy C54400 Sheets Stockist	Phosphor Bronze C54400 Pipes Supplier
Phosphor Bronze C52100 Welded Pipes	Phosphor Bronze Alloy C54400 Square Pipes Supplier
Phosphor Bronze Alloy C54400 Coils	Phosphor Bronze Alloy C54400 Perforated Sheets Cut to Size
Phosphor Bronze Alloy C54400 Shim Sheet Supplier in India	Phosphor Bronze C54400 Round Bars Supplier

C54400 Phosphor Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
