C95400 Nickel Aluminum Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C95400 Nickel Aluminum Bronze ASTM B148, ASTM B466 C95400 Pipes Supplier, C95400 ASTM B171 Sheets Manufacturer, C95400 Nickel Aluminum Bronze ASTM B505 Round Bars, ASTM B467 C95400 Tubes Exporter, C95400 Nickel Aluminum Bronze Pipes, C95400 NAB Tubes, C95400 Sheets & Plates, C95400 Coils, C95400 Round Bars, C95400 Pipe Fittings Supplier, Nickel Aluminum Bronze ASTM B152 Plates, C95400 Coils Manufacturer in Mumbai, India.

Raninox Steel is a leading manufacturer, supplier, and exporter of premium-quality C95500 Nickel Aluminum Bronze products, including pipes, tubes, sheets, plates, coils, round bars, and pipe fittings. With a strong commitment to quality, precision engineering, and global standards, we cater to diverse industries such as marine, aerospace, oil & gas, power generation, and heavy engineering.

Our C95400 Nickel Aluminum Bronze alloys Round Bars & Rods are known for their exceptional strength, corrosion resistance, wear resistance, and durability in extreme environments. Manufactured using advanced techniques and strict quality control processes, our products meet international standards such as ASTM, ASME, and EN specifications.

Our C95400 pipes and tubes are designed for high-pressure and high-temperature applications. These products exhibit excellent resistance to corrosion, erosion, and biofouling, making them ideal for marine and offshore industries. These are widely used in desalination plants, shipbuilding, and heat exchangers.

We offer precision-engineered C95400 Nickel Aluminum Bronze sheets and plates with excellent dimensional accuracy. These are widely used in structural applications, shipbuilding, and heavy machinery manufacturing.

We manufacture a complete range of C95400 Nickel Aluminum Bronze Pipe Fittings such as elbows, tees, reducers, and couplings. These fittings ensure leak-proof performance and long service life in critical systems. C95400 Nickel Aluminum Bronze Pipe Fittings provide superior durability and corrosion resistance, widely used in high-pressure and marine piping systems.

Specifications for C95400 Nickel Aluminum Bronze

End Product Specification
Centrifugal ASME SB271, ASTM B271, SAE J462, J461
Continuous ASTM B505, SAE J462, J461
Ingot ASTM B30
Permanent ASTM B806
Precision MILITARY MIL-C-11866
Sand ASME SB148, ASTM B66, B148, B763, SAE J461, J462

C95400 Nickel Aluminum Bronze Equivalent Grades

CDA ASTM SAE AMS Federal Military Other
C95400 B505
B505M		 J461
J462		   QQ-C-390, G5;
QQ-B-671, Class 3		 MIL-B-16033, Class 3 Aluminum bronze 9C

C95400 Nickel Aluminum Bronze Chemical Composition

Cu% Fe% Ni% Al% Mn%
Chemical composition according to ASTM B505/B505M-23

1 Ni value includes Co.
Note: Cu + sum of named elements, 99.5% min. Unless otherwise noted, single values represent maximums.
83.00
min		 3.00-
5.00
1.50		 10.00-
11.50
0.50

C95400 Nickel Aluminum Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
As Centrifugal Cast
TQ50       68 46 45 - - - - - - - - - 190 - -
TQ50   0 SMIN 20 320 310 - - 12 - - - - - - 190 - - 0
M02       68 75 30 - - - - - - - - - 150 - -
M02   0 SMIN 20 515 205 - - 10 - - - - - - 150 - - 0
As Continous Cast
M07       68 85 32 - - - - - - - - - - - -
M07   0 SMIN 20 586 221 - - 12 - - - - - - - - - 0
TQ50       68 95 45 - - - - - - - - - - - -
TQ50   0 SMIN 20 655 310 - - 10 - - - - - - - - - 0
As Permanent Mold Cast
M05       68 100 40 - - - - - - - - - - - -
M05   0 SMIN 20 690 275 - - 10 - - - - - - - - - 0
M05       68 105 46 - - - - - - - - - - - -
M05   0 TYP 20 725 320 - - 11 - - - - - - - - - 0
As Sand Cast
TQ50       68 90 45 - - - - - - - - - 190 - -
TQ50   0 SMIN 20 620 310 - - 6 - - - - - - 190 - - 0
TQ50       68 90 45 - - - - - - - - - 190 - -
TQ50   0 SMIN 20 621 310 - - 6 - - - - - - 190 - - 0
TQ50       68 105 54 - - - - - - - - - 195 50 35 11
TQ50   0 TYP 20 724 372 - - 8 - - - - - - 195 345 241 15
M01       68 75 30 - - - - - - - - - 150 - -
M01   0 SMIN 20 517 207 - - 12 - - - - - - 150 - - 0
M01       68 75 30 - - - - - - - - - 150 - -
M01   0 SMIN 20 515 205 - - 12 - - - - - - 150 - - 0
M01       68 75 30 - - - - - - - - - - - -
M01   0 SMIN 20 517 207 - - - - - - - - - - - - 0
M01       68 85 35 - - - - - - - - - 170 47 28
M01   0 TYP 20 586 241 - - 18 - - - - - - 170 324 193 0

C95400 Nickel Aluminum Bronze Physical Properties

Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 · 10-6 per oF (68-572 F) 16.2 · 10-6 per oC (20-300 C)
Density 0.269 lb/in3 at 68 F 7.45 gm/cm3 @ 20 C
Electrical Conductivity 13 %IACS @ 68 F 0.75 MegaSiemens/cm @ 20 C
Electrical Resistivity 80.2 ohms-cmil/ft @ 68 F 13.33 microhm-cm @ 20 C
Magnetic Permeability (As Cast) 1.27 1.27
Magnetic Permeability (TQ50 temper) 1.2 1.2
Melting Point - Liquidus 1900 F 1038 C
Melting Point - Solidus 1880 F 1027 C
Modulas of Elasticity in Tension 15500 ksi 107000 MPa
Specific Gravity 7.45 7.45
Specific Heat Capacity 0.1 Btu/lb/oF at 68 F 419.0 J/kg · oK at 293 K
Thermal Conductivity 33.9 Btu · ft/(hr · ft2 · oF) at 68F 58.7 W/m · oK at 20 C

ASTM B148 C95400 Nickel Aluminum Bronze Pipes, ASTM B148 C95400 Bronze Tubes Supplier, ASTM B148 C95400 Sheets and Plates, ASTM B148 C95400 Round Bars Exporter, ASTM B148 C95400 Pipe Fittings Manufacturer, ASTM B171 C95400 Bronze Plates, ASTM B505 C95400 Bronze Bars, ASTM B271 C95400 Bronze Castings, ASTM B22 C95400 Bronze Alloy Products, ASTM B150 C95400 Aluminum Bronze Rods, ASTM B169 C95400 Bronze Tubing, ASTM B432 C95400 Bronze Pipes, ASTM B763 C95400 Bronze Extrusions, ASTM B371 C95400 Copper Alloy Plates, ASTM B36 C95400 Copper Alloy Sheets, ASTM B98 C95400 Bronze Rods, ASTM B249 C95400 Alloy Tubes, ASTM B466 C95400 Seamless Pipes, ASTM B829 C95400 Hollow Bars, C95400 Nickel Aluminum Bronze Structural Plates Supplier in Mumbai, India.

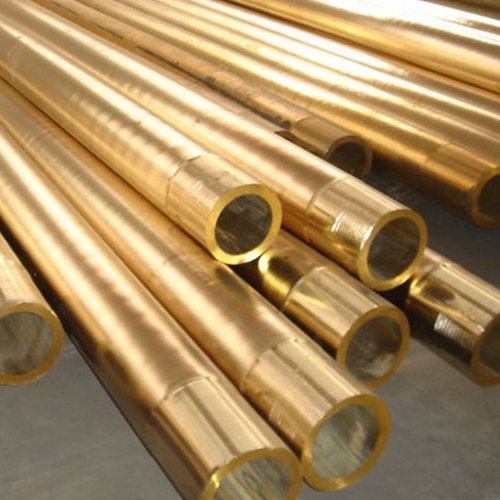

C95400 Nickel Aluminum Bronze Pipes & Tubes

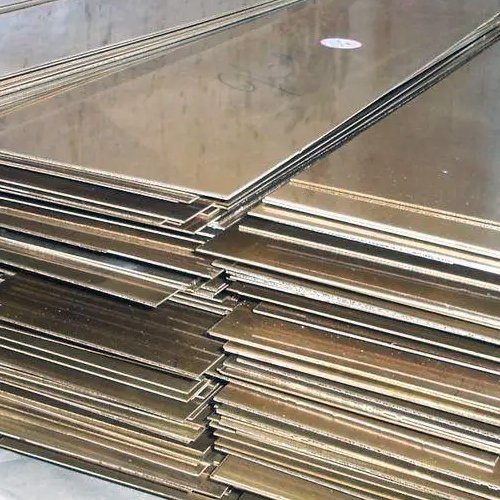

C95400 Nickel Aluminum Bronze Sheets, Plates & Coils

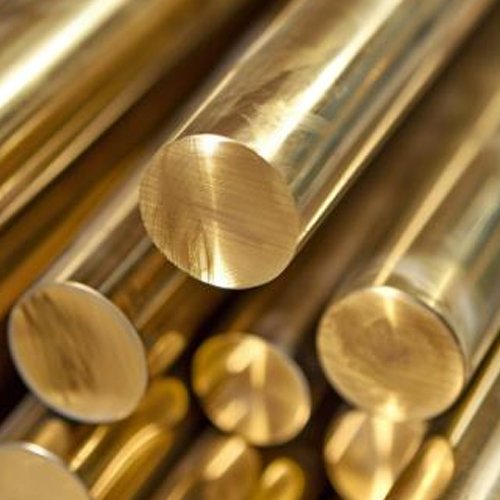

C95400 Nickel Aluminum Bronze Round Bars

C95400 Nickel Aluminum Bronze Sheets & Plates Size Chart

Size Thickness Size of sheet LBS/SQ FT LBS/Sheet
0.063 - 36 X 96 2.781 66.744
1/8 0.125 36 X 120 5.130 153.9
1/8 0.125 40 X 133 1/2 5.130 190.24
3/16 0.188 48 X 120 7.700 307.8
1/4 0.25 36 X 84 10.750 225.75
1/4 0.25 48 X 120 10.750 430
3/8 0.375 48 X 120 15.390 615.6
3/8 0.375 49 X 120 15.390 628.425
1/2 0.5 36 X 120 20.520 615.6
1/2 0.5 39 X 120 20.520 666.9
1/2 0.5 48 X 120 20.520 820.8
1/2 0.5 48 X 144 20.520 985
3/4 0.75 48 X 120 32.190 1231
3/4 0.75 48 X 144 32.190 1483
1 1.00 48 X 120 41.040 1641.6
1 ½ 1.50 48 X 96 64.380 2060.16
1 ½ 1.50 48 X 144 64.380 3090.24
2 2.00 48 X 72 86.000 2064

C95400 Nickel Aluminum Bronze Sheets Weight Chart

Size (inch) 0.063 01/4 3/16 01/4 01/8 01/8 03/8 01/2 01/2
Thick – 0.25 0.188 0.25 0.125 0.125 0.375 0.5 0.5
Weight in lbs per sheet 66.744 225.75 307.8 430 19 .24 153.9 615.6 82 .8 666.9
lbs per sq. ft 2.781 1 .750 7.7 1 .750 5.13 5.13 15.39 2 .520 2 .520
Size (inch) 01/2 01/2 03/8 03/4 1 ½ 1 ½ 03/4 2 1
Thick 0.5 0.5 0.375 0.75 1.5 1.5 0.75 2 1
Weight in lbs per sheet 985 615.6 628.425 1231 309 .24 206 .16 1483 2064 1641.6
lbs per sq. ft 2 .520 2 .520 15.39 32.19 64.38 64.38 32.19 86 41.04

C95400 Nickel Aluminum Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C95400 Nickel Aluminum Bronze Round Bars Size

Size Table in MM Chucked true to Outside Dia in MM Chucked true to Inside Dia in MM and Inch
Outside Dia,
Millimeter		 Inside Dia,
Millimeter		 Maximum Outside Dia,
Millimeter		 Minimum. Inside Dia,
Millimeter		 Maximum Outside Dia,
Inches.		 Minimum. Inside Dia,
Inches		 Maximum Outside Dia,
Millimeter		 Minimum. Inside Dia,
Millimeter		 Maximum Outside Dia,
Inches		 Minimum. Inside Dia,
Inches
32 20 31 21.9 1.220 0.862 30 21 1.185 0.827
32 16 31 18 1.220 0.709 30 17 1.181 0.669
36 25 35 26.9 1.378 1.059 34.1 26 1.343 1.024
36 20 35 22 1.378 0.866 34 21 1.339 0.827
36 16 35 18.1 1.378 0.713 33.9 17 1.335 0.669
40 28 39 29.9 1.535 1.177 38.1 29 1.500 1.142
40 25 39 27 1.535 1.063 38 26 1.496 1.024
40 20 39 22.1 1.535 0.870 37.9 21 1.492 0.827
45 32 44 33.9 1.732 1.335 43.1 33 1.697 1.299
45 28 44 30 1.732 1.181 43 29 1.693 1.142
45 20 44 22.2 1.732 0.874 42.8 21 1.685 0.827
50 36 49 38 1.929 1.496 48 37 1.890 1.457
50 32 49 34.1 1.929 1.343 47.9 33 1.886 1.299
50 25 49 27.2 1.929 1.071 47.8 26 1.882 1.024
56 40 55 42 2.165 1.654 54 41 2.126 1.614
56 36 55 38.1 2.165 1.500 53.9 37 2.122 1.457
56 28 55 30.3 2.165 1.193 53.7 29 2.114 1.142
63 50 62 51.9 2.441 2.043 61.1 51 2.406 2.008
63 45 62 47 2.441 1.850 61 46 2.402 1.811
63 40 62 42.2 2.441 1.661 60.8 41 2.394 1.614
63 36 62 38.3 2.441 1.508 60.7 37 2.390 1.457
63 32 62 34.4 2.441 1.354 60.6 33 2.386 1.299
71 56 69.9 58 2.752 2.283 68.9 57 2.713 2.244
71 45 69.9 47.3 2.752 1.862 68.6 46 2.701 1.811
71 40 69.9 42.4 2.752 1.669 68.5 41 2.697 1.614
71 36 69.9 38.5 2.752 1.516 68.4 37 2.693 1.457
75 60 73.8 62 2.906 2.441 72.8 61 2.866 2.402
75 50 73.8 52.2 2.906 2.055 72.6 51 2.858 2.008
75 40 73.8 42.5 2.906 1.673 72.3 41 2.846 1.614
80 63 78.8 65 3.102 2.559 77.8 64 3.063 2.520
80 50 78.8 52.4 3.102 2.053 77.4 51 3.047 2.008
80 45 78.8 47.5 3.102 1.870 77.3 46 3.043 1.811
80 40 78.8 42.6 3.102 1.677 77.2 41 3.039 1.614
85 67 83.7 69.1 3.295 2.720 82.6 68 3.252 2.677
85 55 83.7 57.4 3.295 2.260 82.3 56.0 3.240 2.205
85 45 83.7 47.6 3.295 1.874 82.1 46.0 3.232 1.811
90 71 88.6 73.1 3.488 2.878 87.6 72.1 3.449 2.839
90 63 88.6 65.3 3.488 2.571 87.3 64.0 3.437 2.520
90 56 88.6 58.5 3.488 2.303 87.1 57.0 3.429 2.244
90 50 88.6 52.6 3.488 2.071 87.0 51.0 3.425 2.008
95 75 93.5 77.3 3.681 3.041 92.4 76.2 3.641 2.997
95 67 93.5 69.3 3.681 2.728 92.2 68.0 3.630 2.677
95 50 93.5 52.7 3.681 2.075 91.8 51.0 3.614 2.008
100 80 98.5 82.3 3.878 3.240 97.4 81.2 3.835 3.197
100 71 98.5 73.4 3.878 2.890 97.2 72.1 3.827 2.839
100 63 98.5 65.5 3.878 2.579 97.0 64.0 3.819 2.520
100 56 98.5 58.7 3.878 2.311 96.8 57.0 3.811 2.244
106 80 104.4 82.5 4.110 3.248 103.1 81.2 4.059 3.197
106 71 104.4 73.5 4.110 2.894 103.0 72.1 4.055 2.839
106 63 104.4 65.7 4.110 2.587 102.7 64.0 4.043 2.520
106 56 104.4 58.9 4.110 2.319 102.5 57.0 4.035 2.244
112 90 110.3 92.5 4.343 3.642 109.2 91.4 4.299 3.598
112 80 110.3 82.6 4.343 3.252 108.9 81.2 4.287 3.197
112 71 110.3 73.7 4.343 2.902 108.7 72.1 4.280 2.839
112 63 110.3 65.8 4.343 2.591 108.5 64.0 4.272 2.520
118 90 116.2 92.7 4.575 3.650 114.9 91.4 4.524 3.598
118 80 116.2 82.8 4.575 3.260 114.6 81.2 4.512 3.197
118 71 116.2 73.8 4.575 2.906 114.5 72.1 4.508 2.839
118 63 116.2 66.0 4.575 2.598 114.2 64.0 4.496 2.520
125 100 123.1 102.7 4.846 4.043 121.9 101.5 4.799 3.996
125 90 123.1 92.8 4.846 3.654 121.7 91.4 4.791 3.598
125 80 123.1 82.9 4.846 3.264 121.4 81.2 4.780 3.197
125 71 123.1 74.0 4.846 2.913 121.3 72.1 4.772 2.839
132 106 130.0 108.8 5.118 4.283 128.8 107.6 5.071 4.236
132 90 130.0 93.0 5.118 3.661 128.4 91.4 5.055 3.598
132 80 130.0 83.1 5.118 3.272 128.1 81.2 5.043 3.197
132 71 130.0 74.2 5.118 2.921 121.2 72.1 5.035 2.839
140 112 137.9 115 5.429 4.528 136.6 113.7 5.378 4.476
140 100 137.9 103.1 5.429 4.059 136.3 101.5 5.366 3.996
140 90 137.9 93.2 5.429 3.669 136.1 91.4 5.358 3.598
140 80 137.9 83.3 5.429 3.280 135.8 81.2 5.346 3.197

Types Of C95400 Nickel Aluminum Bronze

C95400 Nickel Aluminum Bronze Plates Manufacturer C95400 Nickel Aluminum Bronze Slit Coils Supplier
ASTM C95400 Nickel Aluminum Bronze Pipes C95400 Nickel Aluminum Bronze Hex Bars Stockists
ASTM B148 C95400 Nickel Aluminum Bronze Pipes UNS C95400 Nickel Aluminum Bronze Sheets Plates
C95400 Nickel Aluminum Bronze Round Rod Dealer ASTM B148 C95400 Coils Manufacturer
C95400 Nickel Aluminum Bronze Rectangular Bars C95400 Nickel Aluminum Bronze Bars Supplier
C95400 Nickel Aluminum Bronze Coils Supplier ASTM B148 C95400 Fittings Supplier
C95400 Nickel Aluminum Bronze Sheets Stockist ASTM B148 NAB Round Bars Supplier
C95400 Nickel Aluminum Bronze Welded Pipes C95400 Nickel Aluminum Bronze Square Pipes
C95400 Nickel Aluminum Bronze Coils C95400 Nickel Aluminum Bronze Forgings
C95400 Nickel Aluminum Bronze Shim Sheet ASTM Bronze Pipe Fittings Supplier
ASTM B98 C95400 Bronze Rods ASTM B466 C95400 Seamless Pipes
ASTM B829 C95400 Hollow Bars in India ASTM B169 C95400 Bronze Tubing Supplier
