C90200 Tin Bronze Manufacturers, Suppliers & Stockist in Mumbai, India

Manufacturer of C90200 Tin Bronze Tubes, C90200 Tin Bronze Sheets & Plates, C90200 Tin Bronze Bars, CDA C90200 Tin Bronze Sheets, C90200 Tin Bronze, C90200 Pipes and Tubes, C90200 Sheets Supplier, C90200 Plates Manufacturer, Bronze Bearing Material, Marine Bronze Alloy, ASTM B505 Bronze, ASTM B271 Bronze, Bronze Bush Material, Industrial Bronze Components, Copper Tin Alloy Supplier, Continuous Cast Bronze Bars, C90200 Round Bars Exporter & Supplier in Mumbai, India.

Raninox Steel is a trusted name in the metal industry, specializing in high-quality C90200 Tin Bronze Pipes & Tubes, Sheets, Plates, Coils, Round Bars, and Pipe Fittings. With a commitment to precision engineering, superior materials, and global standards, we deliver products that meet the demands of industries such as marine, construction, engineering, and heavy machinery.

We offers premium quality C90200 Tin Bronze Pipes & Tubes designed for high-performance applications. These pipes provide excellent corrosion resistance, especially in marine and industrial environments.

Our C90200 sheets, plates,are manufactured with precision to ensure uniform thickness and superior surface finish. C90200 Tin Bronze Coils is a high-performance alloy composed primarily of copper and tin. It is widely used in industries requiring high strength, corrosion resistance, and wear resistance.

C90200 Tin Bronze Round Bars & Rods also known as Bearing Bronze Rod or SAE 660 Bronze Bars are high-performance copper-tin-lead alloys designed for excellent wear resistance, load-bearing capacity, and machinability. These bronze bars are widely used in industrial machinery, automotive components, marine equipment, and heavy engineering applications where durability and low friction performance are critical.

Specifications for C90200 Tin Bronze

End Product Specification
Centrifugal AMS 4845, ASTM B271, SAE J462, J461
Continuous ASTM B505, SAE J461, J462
Ingot ASTM B30, B30
Sand SAE J462, J461

C90200 Tin Bronze Equivalent Grades

CDA ASTM Other
C90200 (SAE 620) ASTM B505, ASTM B271, ASME SB505 Gun Metal

C90200 Tin Bronze Chemical Composition

ELEMENT Copper Aluminium Iron Nickel Zinc Lead Tin Silicon Sulphur Antimony Phosphorus
Min (%) 91.00 - - - - - 6.00 - - - -
Max (%) 94.00 0.005 0.20 0.50 0.50 0.30 8.00 0.005 0.05 0.20 0.05

C90200 Tin Bronze Mechanical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
As Continous Cast
M07       68 38 20 - - - - - - - - - - - -
M07   0 SMIN 20 262 138 - - 8 - - - - - - - - - 0
As Sand Cast
M01       68 42 21 - - - - - - - - - - - - 7
M01   0 TYP 20 290 145 - - 20 - - 78 - - 77 - - - 9

C90200 Tin Bronze Physical Properties

Temper Sect. Size Cold Work Type Min Temp Tensile Strength YS
0.05% UL 		YS
0.02% Offset 		YS
0.005% Offset 		Elong. RH
B 		RH
C 		RH
F 		RH
30T 		VH
500 		BH
500 		BH
3000 		Shear
Strgth 		Fatigue
Strgth 		Izod
Impact
Strgth
- in. % - F ksi ksi ksi ksi % B C F 30T 500 500 3000 ksi ksi ft-lb
- mm. - - C MPa MPa MPa MPa - - - - - - - - MPa MPa J
As Continous Cast
M07       68 38 20 - - - - - - - - - - - -
M07   0 SMIN 20 262 138 - - 8 - - - - - - - - - 0
As Sand Cast
M01       68 42 21 - - - - - - - - - - - - 7
M01   0 TYP 20 290 145 - - 20 - - 78 - - 77 - - - 9

C90200 Tin Bronze Supplier, C90200 Tin Bronze Manufacturer, C90200 Tin Bronze Exporter, C90200 Bronze Pipes, C90200 Bronze Tubes, C90200 Bronze Sheets, C90200 Tin Bronze, Gun Metal Bronze Supplier, C90200 Bronze Pipes, C90200 Bronze Tubes, C90200 Bronze Sheets, C90200 Bronze Plates, C90200 Bronze Round Bars, C90200 Bronze Coils, Tin Bronze Manufacturer, C90200 Alloy Material, C90200 Bronze Rod in Mumbai, India.

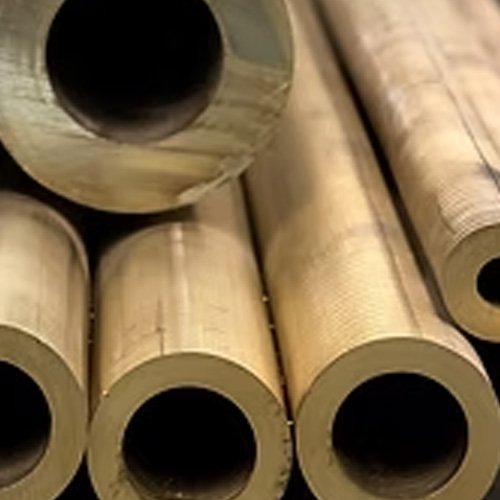

C90200 Tin Bronze Pipes & Tubes

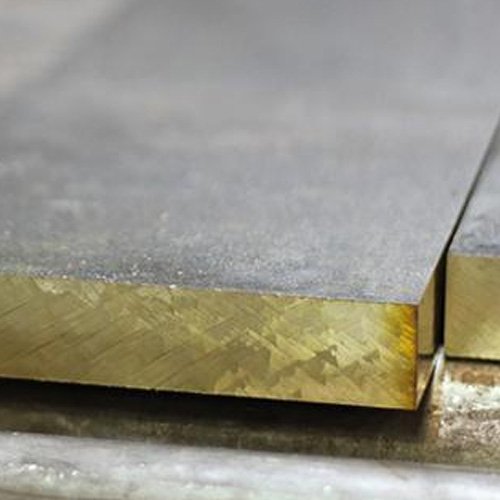

C90200 Tin Bronze Sheets, Plates & Coils

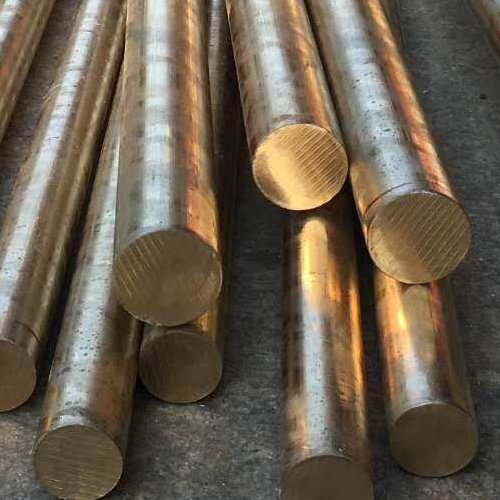

C90200 Tin Bronze Round Bars

C90200 Tin Bronze Sheets & Plates Size Chart

Sheet Plate
Size in milimeter Weight kg/sheet Size in milimeter Weight kg/plate
.55 * 900 * 1800 7.97 4 * 900 * 1800 57.93
.55 * 1200 * 2400 14.16 5 * 900 * 1800 72.41
.7 * 900 * 1800 1 .14 6 * 900 * 2400 115.86
.7 * 1200 * 2400 18.02 10 * 900 * 1800 144.83
.9 * 900 * 1800 13.03 12.5 * 900 * 1800 111.75
.9 * 1200 * 2400 23.17 20 * 900 * 1800 289.66
1 * 900 * 1800 14.48 25 * 900 * 1800 362.07
1 * 1200 * 2400 25.75
1.2 * 900 * 1800 17.38
1.2 * 1200 * 2400 3 .9
1.6 * 900 * 1800 23.17
1.6 * 1200 * 2400 41.2
2 * 900 * 1800 28.97
2 * 1200 * 2400 51.49
2.5 * 900 * 1800
3 * 900 * 1800 43.45
3 * 1200 * 2400 77.24

C90200 Tin Bronze Pipes & Tubes Size

Metric OD (mm) Wall Thickness (mm) Metric ID (mm) Approx. Weight (kg/m)
25.4 3.25 18.9 1.85
31.75 4.76 22.23 3.40
38.1 6.35 25.4 5.35
50.8 6.35 38.1 7.60
63.5 9.52 44.46 13.90
76.2 12.7 50.8 21.60
101.6 15.8 70.0 36.80
127.0 20.0 87.0 58.50
152.4 25.4 101.6 85.10

C90200 Tin Bronze Flat Bars Size & Weight

Size Table in MM OD in MM ID in MM and Inch
ID OD min. ID max. OD min. ID max. OD min. ID max. OD min. ID max. OD
mm mm mm mm in. in.. mm mm in. in.
16 32 18 31 .709 1.22 17 30 .669 1.181
20 36 22 35 .866 1.378 21 34 .827 1.339
20 40 22.1 39 .87 1.535 21 37.9 .827 1.492
25 50 27.2 49 1.071 1.929 26 47.8 1.024 1.882
28 40 29.9 39 1.177 1.535 29 38.1 1.142 1.5
28 45 30 44 1.181 1.732 29 43 1.142 1.693
32 63 34.4 62 1.354 2.441 33 6 .6 1.299 2.386
36 50 38 49 1.496 1.929 37 48 1.457 1.89
36 56 38.1 55 1.5 2.165 37 53.9 1.457 2.122
36 71 38.5 69.9 1.516 2.752 37 68.4 1.457 2.693
40 63 42.2 62 1.661 2.441 41 6 .8 1.614 2.394
45 71 47.3 69.9 1.862 2.752 46 68.6 1.811 2.701
45 80 47.5 78.8 1.87 3.102 46 77.3 1.811 3.043
50 63 51.9 62 2.043 2.441 51 61.1 2.008 2.406
50 75 52.2 73.8 2.055 2.906 51 72.6 2.008 2.858
63 100 65.5 98.5 2.579 3.878 64 97 2.52 3.819
63 80 65 78.8 2.559 3.102 64 77.8 2.52 3.063
63 90 65.3 88.6 2.571 3.488 64 87.3 2.52 3.437
67 85 69.1 83.7 2.72 3.295 68 82.6 2.677 3.252
67 95 69.3 93.5 2.728 3.681 68 92.2 2.677 3.63
71 112 73.7 11 .3 2.902 4.343 72.1 108.7 2.839 4.28
80 100 82.3 98.5 3.24 3.878 81.2 97.4 3.197 3.835
80 106 82.5 104.4 3.248 4.11 81.2 103.1 3.197 4.059
80 125 82.9 123.1 3.264 4.846 81.2 121.4 3.197 4.78
90 112 92.5 11 .3 3.642 4.343 91.4 109.2 3.598 4.299
90 118 92.7 116.2 3.65 4.575 91.4 114.9 3.598 4.524
90 140 93.2 137.9 3.669 5.429 91.4 136.1 3.598 5.358
95 150 98.4 147.7 3.874 5.815 96.4 145.7 3.795 5.736
100 125 102.7 123.1 4.043 4.846 101.5 121.9 3.996 4.799
106 132 108.8 130 4.283 5.118 107.6 128.8 4.236 5.071
112 140 115 137.9 4.528 5.429 113.7 136.6 4.476 5.378
125 150 128.1 147.7 5.043 5.815 126.9 146.5 4.996 5.768
132 160 135.3 157.6 5.327 6.205 134 156.3 5.276 6.154

Types Of C90200 Tin Bronze

C90200 Tin Bronze Plates Manufacturer C90200 Tin Bronze Slit Coils Supplier in India
CDA C90200 Tin Bronze Pipes at Best Price in India C90200 Tin Bronze Hex Bars Stockists
CDA C90200 Tin Bronze Strip Dealer in India CDA C90200 Tin Bronze Sheets Plates Wholesaler
C90200 Tin Bronze Round Rod Dealer CDA C90200 Tin Bronze ERW Pipes Manufacturer
C90200 Tin Bronze Rectangular Bars C90200 Tin Bronze Square Bars Supplier
CDA C90200 Tin Bronze Coils Supplier in Mumbai CDA C90200 Tin Bronze Condenser Tube Supplier
CDA C90200 Tin Bronze Sheets Stockist C90200 Tin Bronze Pipes Supplier
Tin Bronze C90200 Forgins CDA C90200 Tin Bronze Bolts Supplier
CDA C90200 Tin Bronze Coils CDA C90200 Tin Bronze Perforated Sheets Cut to Size
CDA C90200 Tin Bronze Nut Sheet Supplier in India C90200 Tin Bronze Round Bars Supplier

C90200 Tin Bronze Applications & Industries

Oil & Gas

Energy

Infrastructure

Shipbuilding

Textile

Agriculture

Industrial

Food Industry

Architecture

Chemical

Automotive

Aerospace

Pharma

Condensor

Sugar

Paper & Pulp

Desalination
